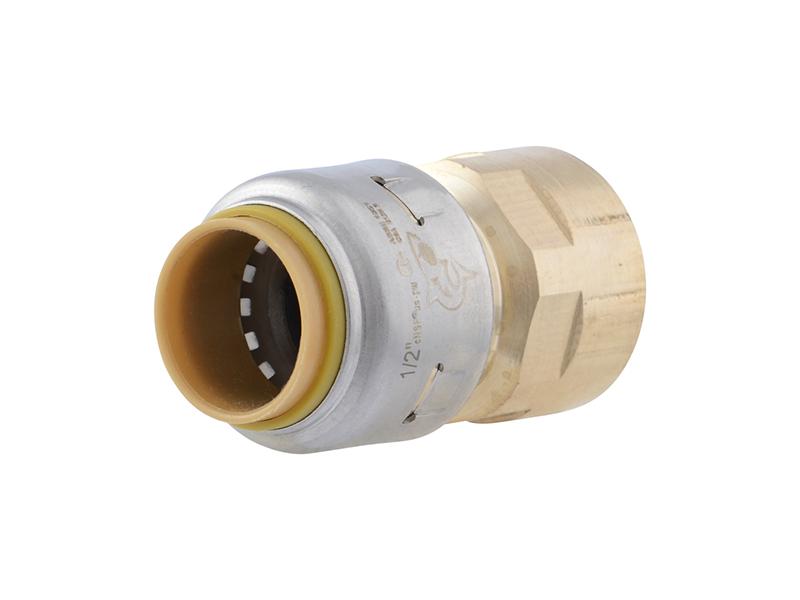

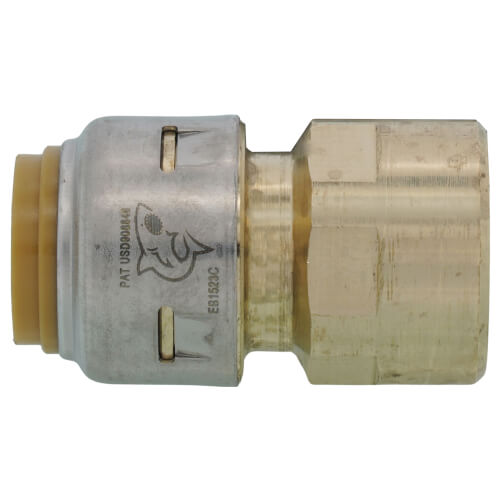

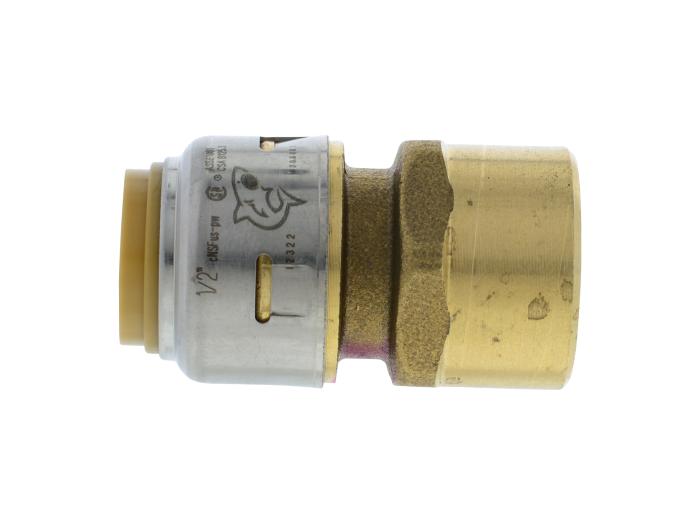

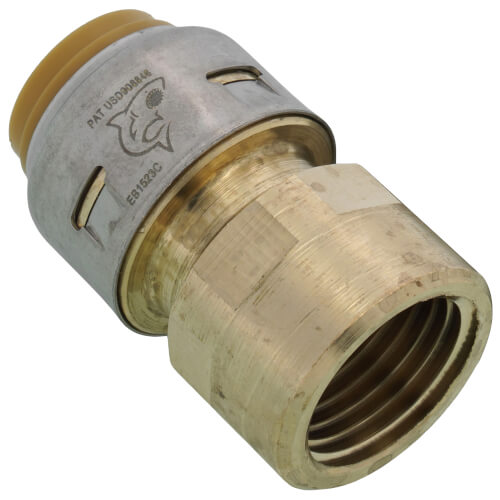

Sharkbite UR072 Max x Female Adapter 1/2 inches (Lead Free)

Product Description

The SHARKBITE UR072 Max female adapter features a push-to-connect design for transitions between CTS pipe to MNPT threaded connections. Ideal for tight spaces, these adapters make installs efficient. They are designed for use with PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.

• Connects PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
• Half the insertion force compared to SharkBite 1st Generation fittings
• Can be installed on wet lines and pressure tested immediately

Product Highlights

This high-performance DZR lead-free brass adapter requires no special tools, crimping, soldering, or glue. It is rated to 200°F and 250 psi.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR072

Technical Specifications

• Size: 1/2"
• Material: Brass
• PEX Size: 1/2"
• Application: Heating
• Max Pressure (PSI): 200
• Thread Type: Female
• Standards Met: NSF
• Fitting System Compatibility: Push Fit
• Tubing Compatibility: CPVC, OD Controlled Copper, PEX
• Max Temp (F): 200 00b0F
• Thread Size: 1/2"
• Lead Free: Yes
• Insertion Depth: 15/16"
• Pipe Size: 1/2 in. x 1/2 in. FNPT
• Description: Straight
• Series: SharkBite Max 2122
• Temperature Rating: 200 deg F
• Fitting Type: Adapters
• Connection Size: 1/2" x 1/2"
• Connection Type: SB x FPT
