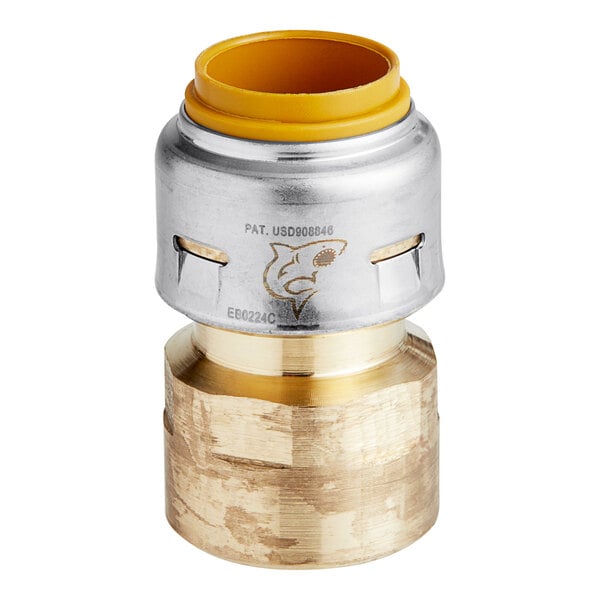

Sharkbite ur072 1/2 Inch Brass Push-to-connect Fnpt Adapter

Product Description

The SHARKBITE ur072 is a 1/2 inch push-to-connect female NPT straight adapter designed for fast, reliable connections in potable water and radiant heating systems. The body is made from dezincification-resistant (DZR) brass, which resists corrosion and cracking over time. An EPDM O-ring provides a secure, leak-free seal rated to 400 psi and 200 degrees F maximum water temperature. The fitting transitions CTS pipe to a female NPT threaded connection without the need for solvents, clamps, or open flame. Licensed plumbers and pipefitters install this fitting in both residential and commercial plumbing applications.

The ur072 is suited for above-ground and underground installations, including behind-wall and in-slab radiant heating runs. It accepts PEX, copper, CPVC, PE-RT, and HDPE SDR-9 tubing in any combination on the push-to-connect end. The fitting can be installed on wet or pressurized lines, pressure-tested immediately after connection, and rotated after installation to ease alignment in tight spaces. Its compact size — 1 13/16 inches in length and 1 1/8 inches in diameter — makes it practical in confined rough-in locations.

Key Features

• DZR brass body resists corrosion and dezincification in potable water service
• EPDM O-ring seal rated to 400 psi and 200 degrees F
• Push-to-connect end accepts PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe in any combination
• Installs on wet lines with no draining required; pressure-test immediately after installation
• Fitting can be rotated after installation for alignment adjustment
• Made in America

Compatibility

Designed for use with 1/2 inch CTS pipe including PEX, copper, CPVC, PE-RT, and HDPE SDR-9 tubing. Suitable for potable water distribution and radiant heating systems in residential and commercial construction, including above-ground, underground, behind-wall, and in-slab installations.

Installation Notes

Installation is performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Before making connections on existing lines, shut off the water supply and relieve system pressure unless installing on a wet line using the push-to-connect method. Ensure pipe ends are cut cleanly and squarely and deburred before insertion into the fitting. Do not exceed the rated maximum pressure or temperature during pressure testing or system operation.

Technical Specifications

• Pipe Size: 1/2 inch
• Maximum Pressure: 400 psi
• Maximum Water Temperature: 200 degrees F
• Length: 1 13/16 inches
• Diameter: 1 1/8 inches
• Material: DZR Brass
• O-Ring Material: EPDM
• Connection Type: Push-To-Connect x FNPT
• Weight: 0.1 pounds
• Country of Origin: Made in America

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: ur072
