Sharkbite ur068 1/2 In. Cts X 3/4 In. Fnpt Female Adapter

Product Description

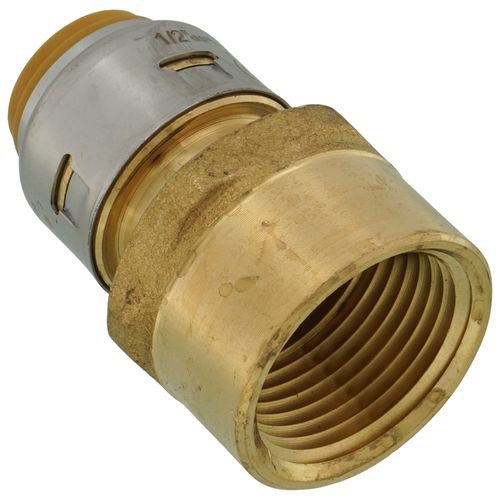

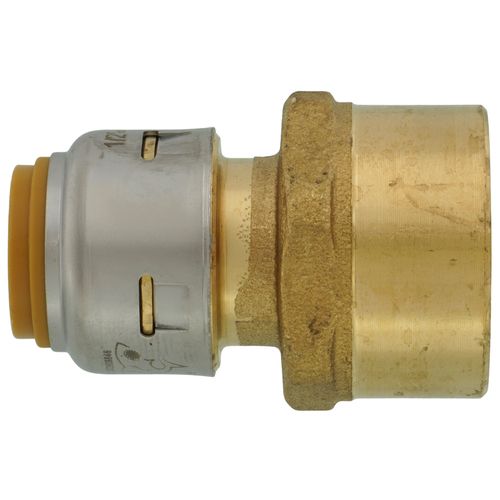

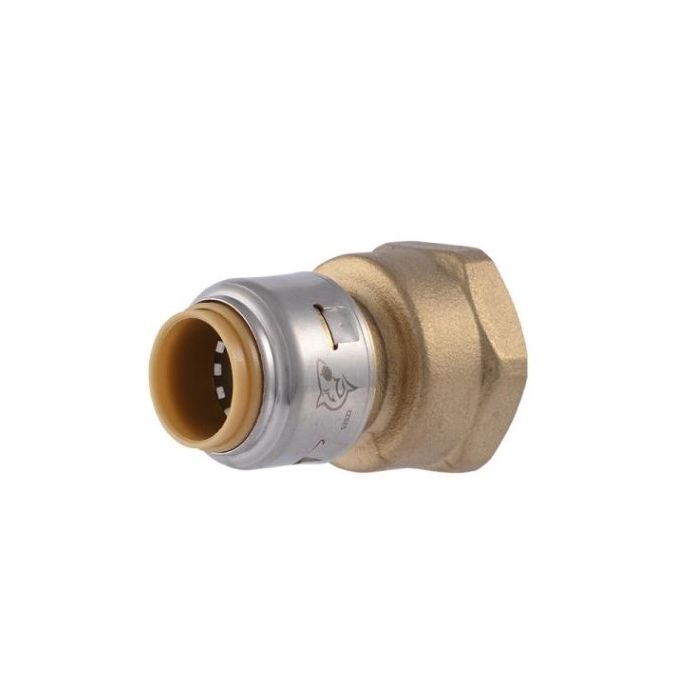

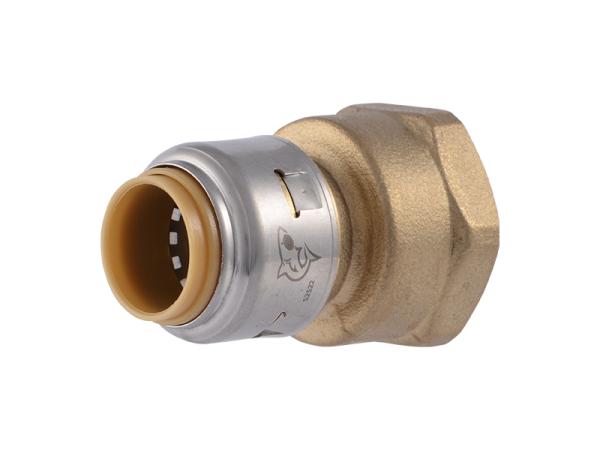

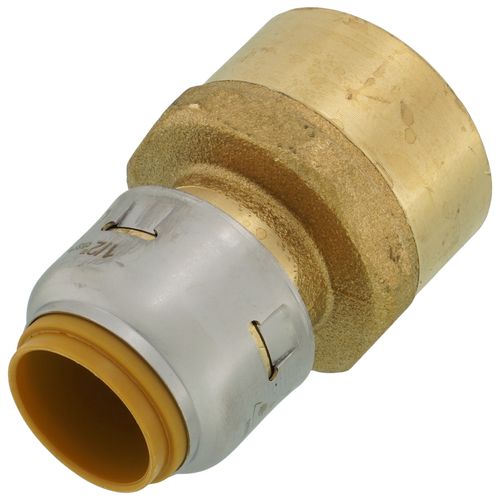

The SHARKBITE ur068 is a push-to-connect female reducing adapter designed to transition 1/2-inch CTS pipe to a 3/4-inch female NPT threaded connection. Built with a high-performance DZR lead-free brass body and a stainless steel retainer ring, this fitting delivers reliable performance rated to 200 degrees F and 250 psi. It installs without soldering, crimping, gluing, or special tools, making it a fast option for professional plumbers working in tight schedules or difficult-access situations. The fitting can be installed on wet lines and pressure tested immediately after installation.

The ur068 is suited for residential and light commercial plumbing applications where CTS pipe meets a threaded connection point. Compatible pipe types include PEX, copper, CPVC, PE-RT, and HDPE SDR-9. The fitting can be permanently installed or used as a temporary repair solution. It can be rotated after installation for alignment, and no tube liner is required when connecting PEX pipe. Removal is possible using a disconnect clip, disconnect tongs, or a pro disconnect tool, making it practical for systems that may require future service.

Key Features

• Push-to-connect installation requires no soldering, crimping, glue, or special tools
• DZR lead-free brass body meets drinking water standards
• Stainless steel retainer ring adds mechanical strength and long-term durability
• Rated to 200 degrees F and 250 psi
• Installs on wet lines and can be pressure tested immediately
• Removable and reusable with standard disconnect tools
• No tube liner required for PEX installations

Compatibility

Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe on the 1/2-inch CTS push-to-connect end. Transitions to a 3/4-inch female NPT threaded connection.

Installation Notes

Installation is performed by licensed plumbers in accordance with local plumbing codes and the IPC. Before servicing any existing line, shut off the water supply and relieve system pressure where possible, although this fitting is rated for wet-line installation. Ensure pipe ends are cut cleanly and squarely, deburred, and free of dirt or scale before insertion. Use an approved disconnect tool for removal to avoid damaging the fitting or pipe.

Technical Specifications

• Pipe Compatibility: PEX, Copper, CPVC, PE-RT, HDPE SDR-9
• Push-to-Connect Size: 1/2 inch CTS
• Thread Size: 3/4 inch FNPT
• Maximum Pressure: 250 psi
• Maximum Temperature: 200 degrees F
• Body Material: DZR Lead-Free Brass
• Retainer Material: Stainless Steel
• Warranty: 25 years (PEX, Copper, CPVC, PE-RT); 5 years (HDPE SDR-9)
• Weight: 0.15 pounds
• Length: 1.84 inches
• Width: 1.34 inches
• Height: 1.22 inches

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: ur068
