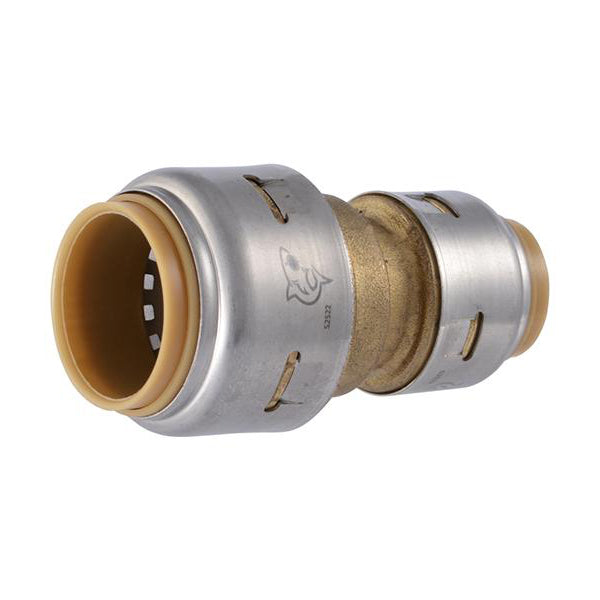

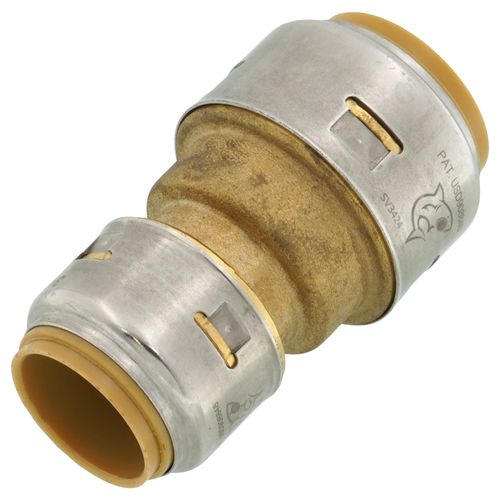

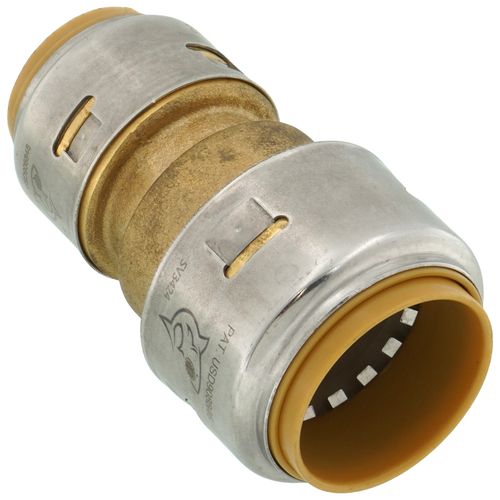

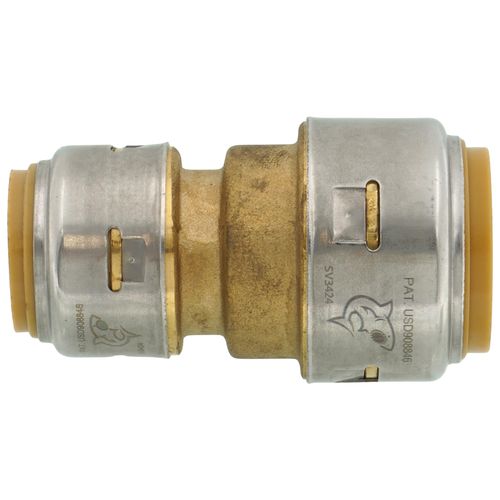

Sharkbite UR060 1 inches x 3/4 inches Reducing Coupling (Lead Free)

Product Description

The SHARKBITE UR060 reducing coupling is designed to connect two different sizes of pipe. It is compatible with PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe. This lead-free DZR brass fitting can be installed on wet lines and pressure tested immediately. It is rated to 200F and 400 psi.

• Connects PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.
• No special tools, crimping, soldering or glue required.
• Can be rotated after installation.

Product Highlights

The SharkBite Max reducing coupling provides a fast and versatile solution for connecting different pipe sizes with a secure and durable connection.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR060

Technical Specifications

• Standards Met: ASSE 1061, ASTM E84, NSF, ASTM E119, CSA B125.3, CAN/ULC S102, UL 263, ANSI 14, CAN 372
• Tubing Compatibility: HDPE, CPVC, PEX, OD Controlled Copper
• PEX Size: 3/4", 1"
• Insertion Depth: 1-5/16", 1-1/8"
• Max Pressure (PSI): 200
• Max Temp (F): 200°F
• Application: Heating
• Material: Brass
• Size: 1" x 3/4"
• Pipe Size: 1 in. x 3/4 in.
• Lead Free: Check
• End Connection: Push Fit
• Fitting Size: 1" X 3/4"
• Fitting Type: Coupling
• Manufacturer Name: Sharkbite
• Product Type: Item
• Length: 2.88"
• Width: 1.61"
• Height: 1.61"
• Nominal Size: 1 x 3/4 Inch
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
• Manufacturer: Reliance Worldwide Corporation
