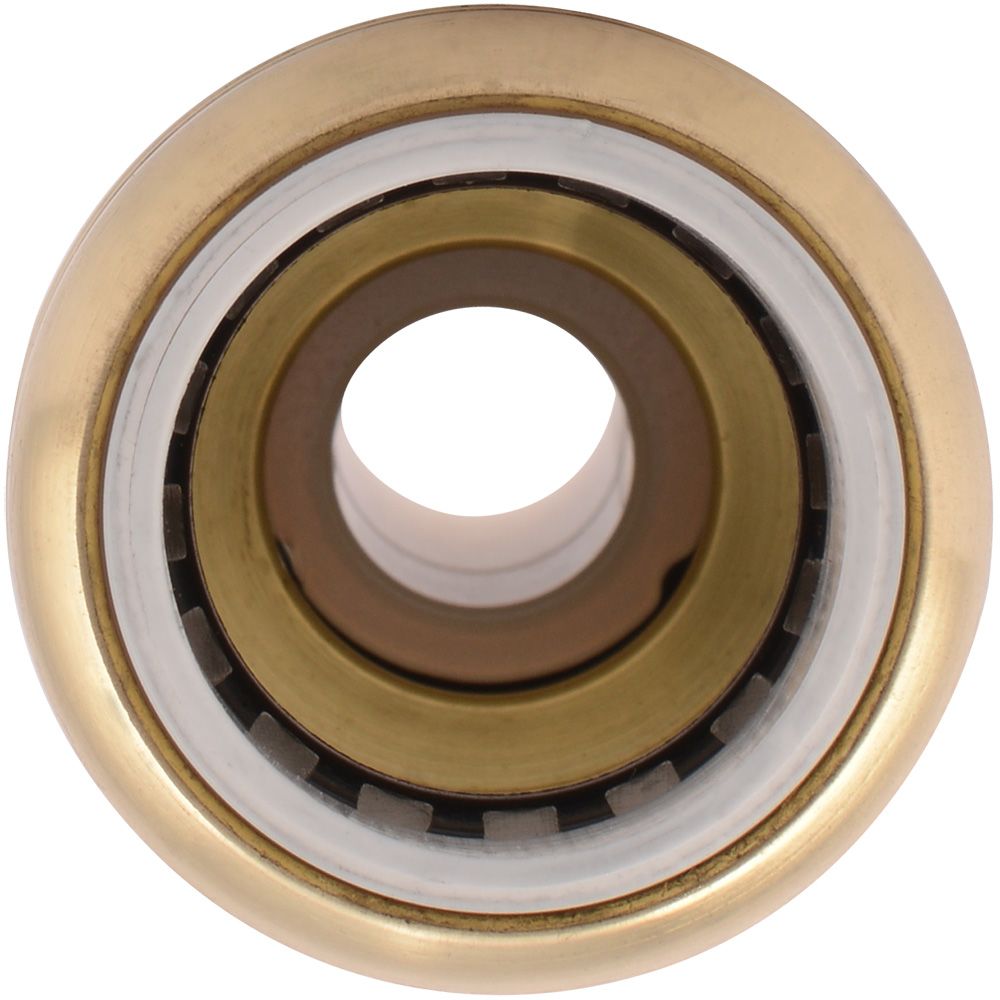

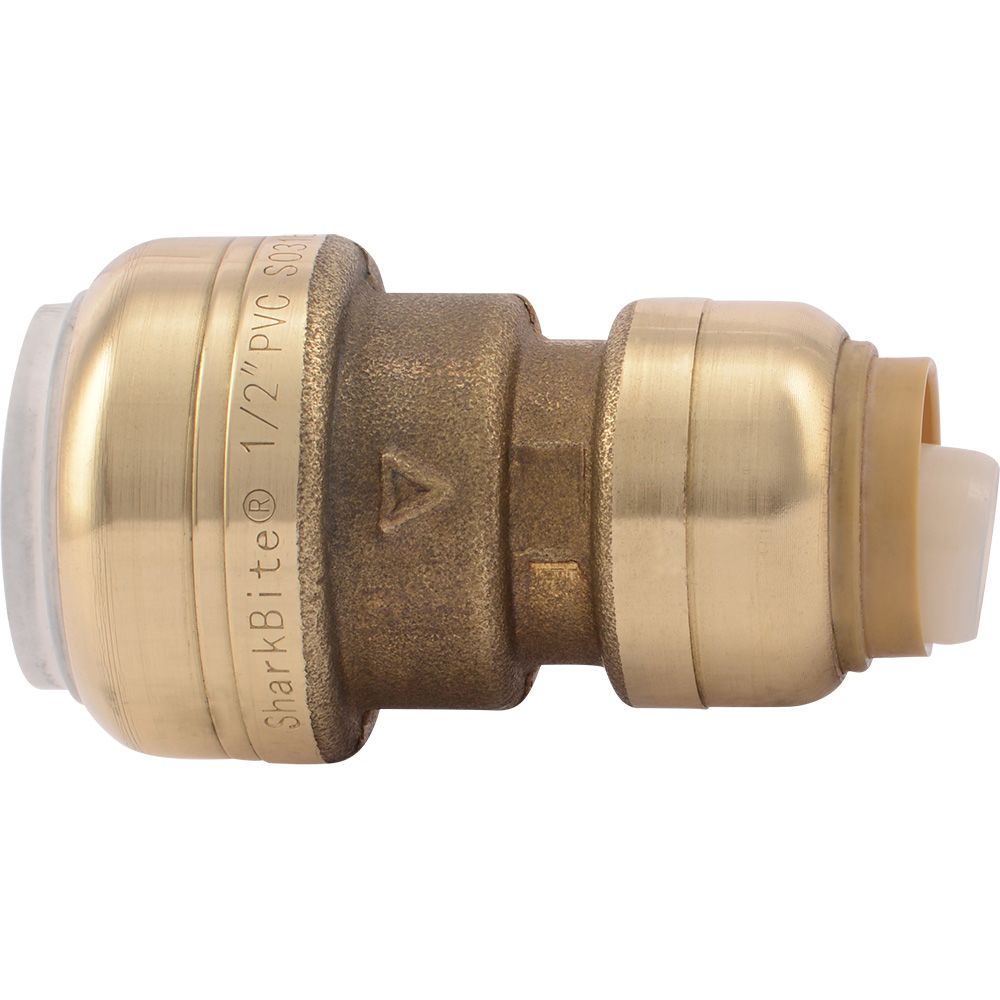

Sharkbite UIP4008 Transition Coupling 1/2 in CTS x PVC

Product Description

The SHARKBITE UIP4008 transition coupling connects copper tubing, CTS CPVC, and PEX pipe in any combination. This coupling features an instant push-fit connection, increasing ease of use, as no soldering, clamps, or unions are required. It is certified to 200 psi and 200 deg F, ensuring durability and quality.

• Instant push-fit connection requires no soldering, clamps, or unions.
• Fittings certified to 200 psi and 200 deg F.
• Can be used on copper, CPVC, and PVC (schedule 40, 80, and 120) pipe.

Product Highlights

The SharkBite transition coupling provides a secure, reliable connection for potable water and hydronic heating applications. It is easy to disconnect and reusable.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UIP4008
• Country of Origin: CN

Technical Specifications

• Application: For Underground and Behind Walls without Access Panels, and Hydronic Heating as Well as Potable Water Distribution
• Country of Origin: CN
• End Style: CTS x PVC
• Fitting/Connector Type: Coupling
• Material: Brass
• Mfg Standards/Approvals: ASSE 1061, CSA B125.3, NSF/ANSI 61/372, NSF 372, Listed by IAPMO
• Nominal Size: 1/2 in
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
• Type: Transition
• Nominal Size A: 1/2 inch CTS
• Nominal Size B: 1/2 inch PVC
• Connection Type: Push-In x Push-In
• Finish: Natural
• Inner Diameter: 1.26 inch
• Length: 2.13 inch
• O-Ring Material: EPDM
• Grab Ring Material: Stainless steel
• Standards: IAPMO Listed, NSF/ANSI 61 and NSF/ANSI 372
• Size: 1/2"
• Insertion Depth: 15/16"
• Tubing Compatibility: CPVC, Copper, PEX, PE-RT
• Fitting System Compatibility: Push Fit
• Lead-Free: Yes
• Maximum Pressure: 200 PSI
• Push-In Size: 1/2" ID
• Seal / O-Ring Material: EPDM
• Shape: Straight
• Double Fitting Size: 1/2" x 1/2"
• Schedule Rating: Schedule 40, Schedule 80, Schedule 120
• Temperature Resistance: 200 degrees Fahrenheit
• Size Availability: 1/2 in.
• Chemical Resistance: Lead-Free
• NSF Certification: Yes
• UV Resistance: Yes
• Approvals & Listings: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, IAPMO Listed
