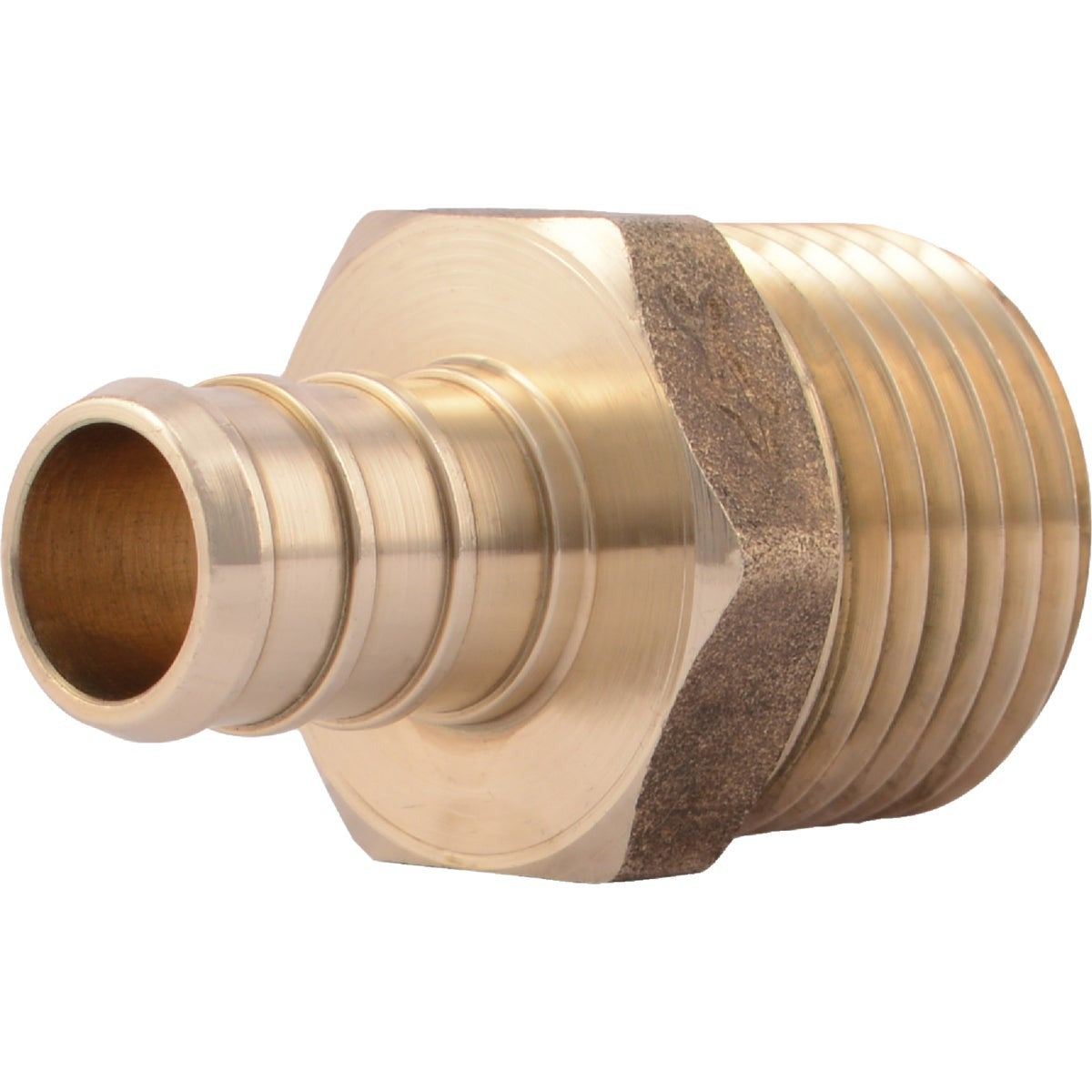

Sharkbite UC120LFA Pex Barb Male Adapter 1/2 in Cf X Mpt

Product Description

The SHARKBITE UC120LFA is a PEX barb threaded male adapter designed for connecting PEX tubing to NPT-threaded pipe or fittings. Constructed from lead-free DZR (dezincification-resistant) brass, this adapter offers a reliable, code-compliant connection in both potable water and hydronic heating systems. One end features a barbed fitting that accepts a stainless steel clamp system or a copper crimp ring system (each sold separately), while the other end is threaded MNPT for a secure mechanical connection. Plumbers and pipefitters install this fitting as a low-cost, straightforward transition point between PEX tubing runs and threaded components.

This adapter is suited for residential and light commercial potable water distribution and hydronic heating applications. It is intended for use where PEX tubing must transition to a male NPT threaded connection, such as at valves, manifolds, boiler ports, or fixture supply stubs. The barb end is sized at 1/2 inch CF and the threaded end is 1/2 inch MPT, making it a direct-fit solution for standard half-inch PEX installations.

Key Features

• Lead-free DZR brass construction meets NSF 372 lead-free requirements
• Barb end compatible with stainless steel clamp systems and copper crimp ring systems
• MNPT threaded end for connection to standard NPT-threaded fittings, valves, and ports
• Approved for potable water distribution and hydronic heating applications
• Certified to ASTM F1807 and NSF/ANSI 61
• Sold individually — clamp or crimp tools and rings sold separately

Compatibility

Compatible with PEX tubing systems using either a stainless steel clamp system or a copper crimp ring system. Approved for potable water distribution and hydronic heating applications per ASTM F1807 and NSF/ANSI 61.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off water supply and relieve system pressure before installing or removing any fitting. The barb end requires a properly sized clamp or crimp ring and the appropriate installation tool — do not install without the correct ring and tool for the chosen connection method. Inspect the PEX tubing end for squareness and cleanliness before seating it onto the barb.
