Sharkbite uc088lf Pex Barb Female Adapter 3/4 in X 3/4 in Fnpt

Product Description

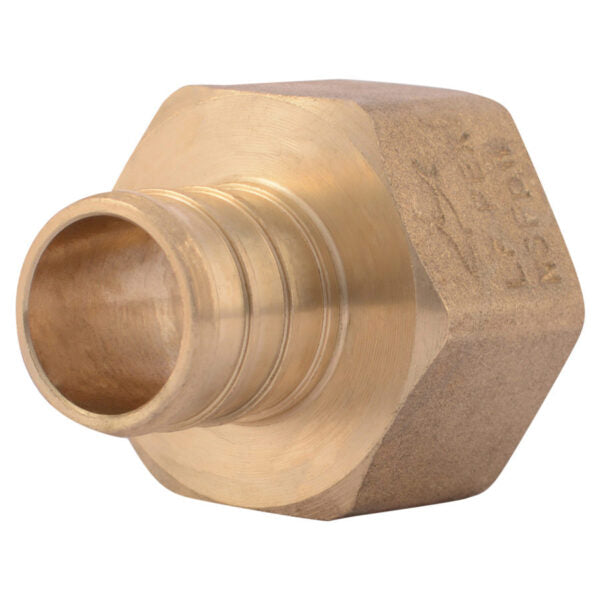

The SHARKBITE uc088lf is a lead-free brass PEX barb female adapter designed to connect 3/4-inch PEX tubing to a 3/4-inch female NPT threaded fitting. Built for potable water distribution and hydronic heating systems, this adapter provides a reliable mechanical connection without the need for soldering or open flame. The lead-free brass construction meets drinking water safety requirements. Installation is straightforward using either a stainless steel clamp ring system or a copper crimp ring system, with the appropriate tool and rings sold separately. Licensed plumbers and experienced installers use this fitting in both residential new construction and retrofit applications.

This adapter is suited for residential and light commercial plumbing systems where PEX tubing transitions to threaded pipe or threaded valves, manifolds, and fixtures. It is appropriate for potable water supply lines and closed-loop hydronic heating circuits. The barb-style connection requires a compatible crimp or clamp tool to complete the joint, making it a standard fitting in PEX-based rough-in and remodel work.

Key Features

• Lead-free brass construction meets potable water application requirements
• 3/4-inch PEX barb inlet connects to 3/4-inch FNPT threaded outlet
• Compatible with stainless steel clamp ring and copper crimp ring installation systems
• Suitable for potable water distribution and hydronic heating applications
• Compact form factor at 1.39 inches in length for use in tight spaces

Compatibility

Compatible with 3/4-inch PEX tubing using either the stainless steel clamping system or copper crimp ring system. Suitable for potable water distribution and hydronic heating applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before beginning work. Use a properly calibrated PEX crimp or clamp tool rated for 3/4-inch fittings to achieve a leak-free connection. Inspect the barb and tubing seat for debris or damage before assembly.

Technical Specifications

• Inlet Size: 3/4 inch PEX barb
• Outlet Size: 3/4 inch FNPT
• Material: Lead-free brass
• Weight: 0.13 pounds
• Length: 1.39 inches
• Width: 1.33 inches
• Height: 1.2 inches

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: uc088lf
