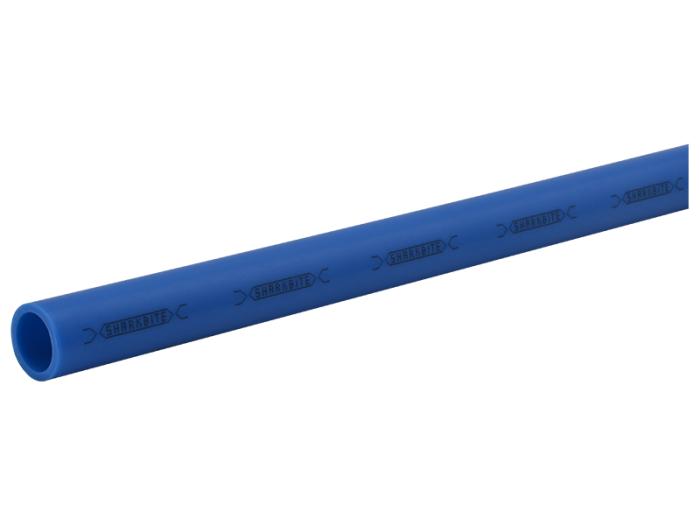

Sharkbite U870B10 Tubing 3/4 in x 10 ft

Product Description

SHARKBITE U870B10 PEX pipe is a cross-linked polyethylene pipe used for potable water applications. It has a SharkBite imprint pattern that provides a visual aid to determine if the pipe has been fully inserted into SharkBite Push-To-Connect fittings when cut between the imprint pattern. The tubing is flexible and provides superior temperature performance.

• Manufactured without an oxygen barrier for potable water systems
• Printed with a SharkBite imprint pattern to ensure proper insertion depth into SharkBite push-fit fittings
• Strong, flexible, resilient tubing that provides superior temperature performance

Product Highlights

This PEX pipe offers flexibility, chlorine and UV resistance, and freeze resistance, reducing the number of fittings needed and overall costs.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: U870B10
• Country of Origin: USA

Technical Specifications

• Color: Blue
• End Style: CTS
• Inside Diameter: 0.671 in
• Length: 10 Ft
• Material: PEX
• Nominal Size: 3/4 In
• Outside Diameter: 7/8 in
• Temperature Rating: 33 to 200 deg F
• Wall Thickness: 0.097 in
• Working Pressure: 160 psi
• Approvals & Listings: NSF/ANSI/CAN 61, NSF/ANSI 14 - PEX 5306, ASTM F876, ASTM F877, CSA B137.5, ASTM E84, CAN/ULC S102.2, ASTM E119, CAN/ULC S101, AWWA C904
• Size: 3/4"
• Type: Sharkbite PEX Pipe Coils
• Units Per Package: 1
• Pressure Rating: 160 psi
