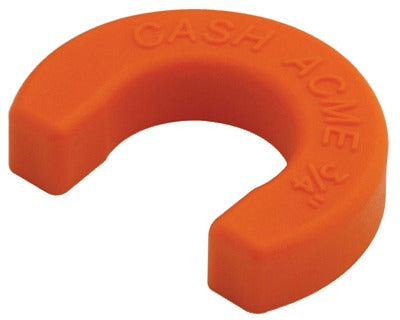

Sharkbite U712A 3/4 Inch Disconnect Clip Push Fit

Product Description

The SHARKBITE U712A is a 3/4 inch disconnect clip designed for use with SharkBite push-fit fittings in residential and commercial plumbing systems. It allows technicians to release push-fit connections quickly without damaging the fitting or the pipe. Constructed of DZR (dezincification-resistant) brass, the U712A is rated to 200 psi and 200 degrees F. It is certified to ASSE 1061 and NSF 61 standards and meets UPC, IPC, and CUPC requirements. Licensed plumbers and pipefitters install this clip as part of routine service, repair, and repipe work where SharkBite push-fit connections are used.

The U712A is compatible with SharkBite push-fit fittings used on copper tubing (CTS), CPVC, and PEX pipe with an integral tube liner included. It is suitable for potable water and hydronic water distribution systems. The fitting is IAPMO listed and certified for underground applications as a manufactured joint, eliminating the need for access panels. This makes it a practical choice for concealed or buried installations in both new construction and retrofit plumbing work.

Key Features

• Releases SharkBite push-fit connections cleanly without tools or fitting damage
• DZR brass construction resists dezincification in aggressive water conditions
• Rated to 200 psi and 200 degrees F for demanding system pressures and temperatures
• Certified to ASSE 1061 and NSF 61 standards
• Meets UPC, IPC, and CUPC requirements
• IAPMO listed and approved for potable and hydronic water distribution
• Certified for underground use as a manufactured joint without access panel requirements

Compatibility

Compatible with SharkBite push-fit fittings for use on 3/4 inch copper tubing (CTS), CPVC, and PEX pipe with integral tube liner included.

Installation Notes

Installation is performed by a licensed plumber. Shut off the water supply and relieve system pressure before disconnecting any push-fit fitting. Insert the disconnect clip around the pipe at the fitting collar and push toward the fitting body to release the collet before pulling the pipe free. Follow all applicable IPC and UPC code requirements for the jurisdiction.
