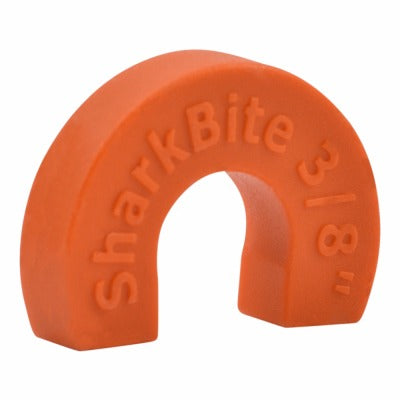

Sharkbite U708A 3/8 Inch Disconnect Clip Push Fit Fitting

Product Description

The SHARKBITE U708A is a 3/8 inch disconnect clip designed for use with SharkBite push-fit fittings in plumbing systems. This clip allows technicians to release push-fit connections quickly and cleanly without damaging the fitting or tubing. Constructed of DZR (dezincification-resistant) brass, it is rated to 200 PSI and 200 degrees F, making it suitable for both cold and hot water distribution applications. The U708A includes an integral tube liner, which supports the tubing end during connection and removal. Licensed plumbers and pipefitters install this clip as part of routine maintenance, system modifications, or fitting replacements.

This disconnect clip is compatible with SharkBite push-fit fittings on copper CTS, CPVC, and PEX tubing at the 3/8 inch size. It is certified for use on potable water and hydronic water distribution systems. The U708A is also certified for underground applications as a manufactured joint, eliminating the need for access panels in qualifying installations. This makes it well suited for residential and light commercial plumbing projects where buried push-fit connections are used. The clip ships bagged in a package quantity of 12 units.

Key Features

• Releases SharkBite push-fit fittings without damaging the fitting or tubing
• DZR brass construction for corrosion resistance in water distribution service
• Rated to 200 PSI and 200 degrees F
• Integral tube liner included to support tubing end during use
• Certified for underground applications as a manufactured joint without access panels
• Design certified to ASSE 1061 and NSF 61 standards; listed with IAPMO

Compatibility

Designed for use with SharkBite push-fit fittings on 3/8 inch copper tubing CTS, CPVC, and PEX tubing. Certified for use on potable water and hydronic water distribution systems. Meets UPC, IPC, and CUPC requirements.

Installation Notes

Installation and removal of push-fit fittings should be performed by a licensed plumber in accordance with local IPC or UPC requirements. Shut off the water supply and depressurize the line before attempting to disconnect any fitting. Insert the disconnect clip around the tubing at the fitting collar and push toward the fitting body to release the collet before pulling the tubing free. Do not reuse fittings or tubing ends that show signs of damage or deformation.
