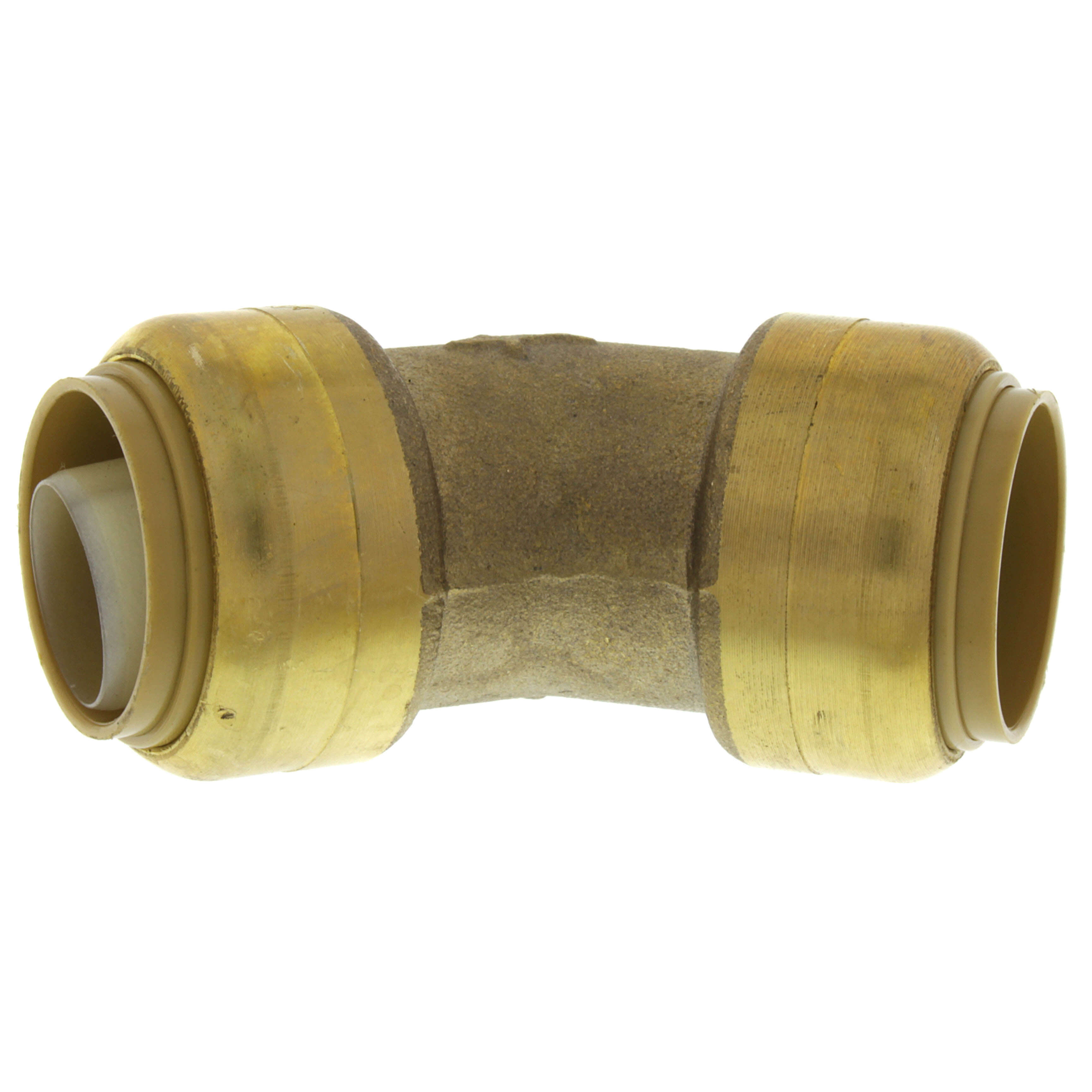

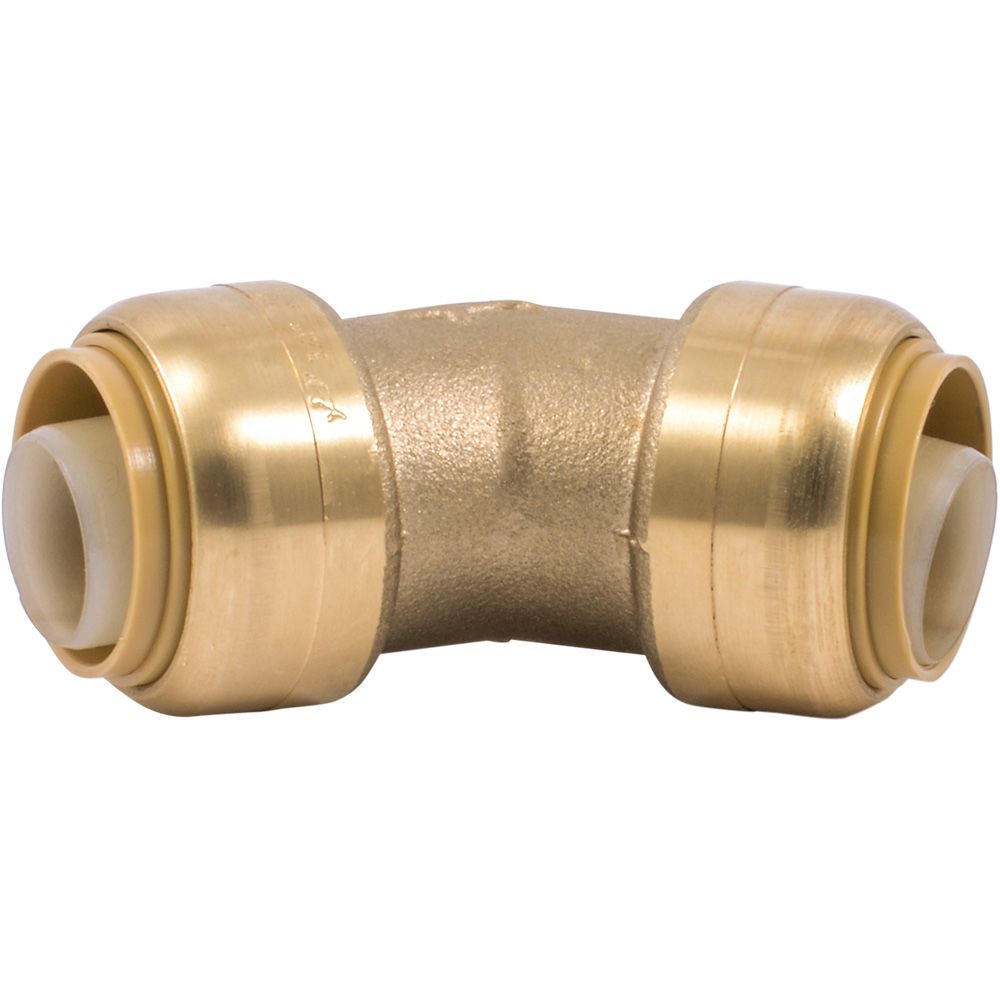

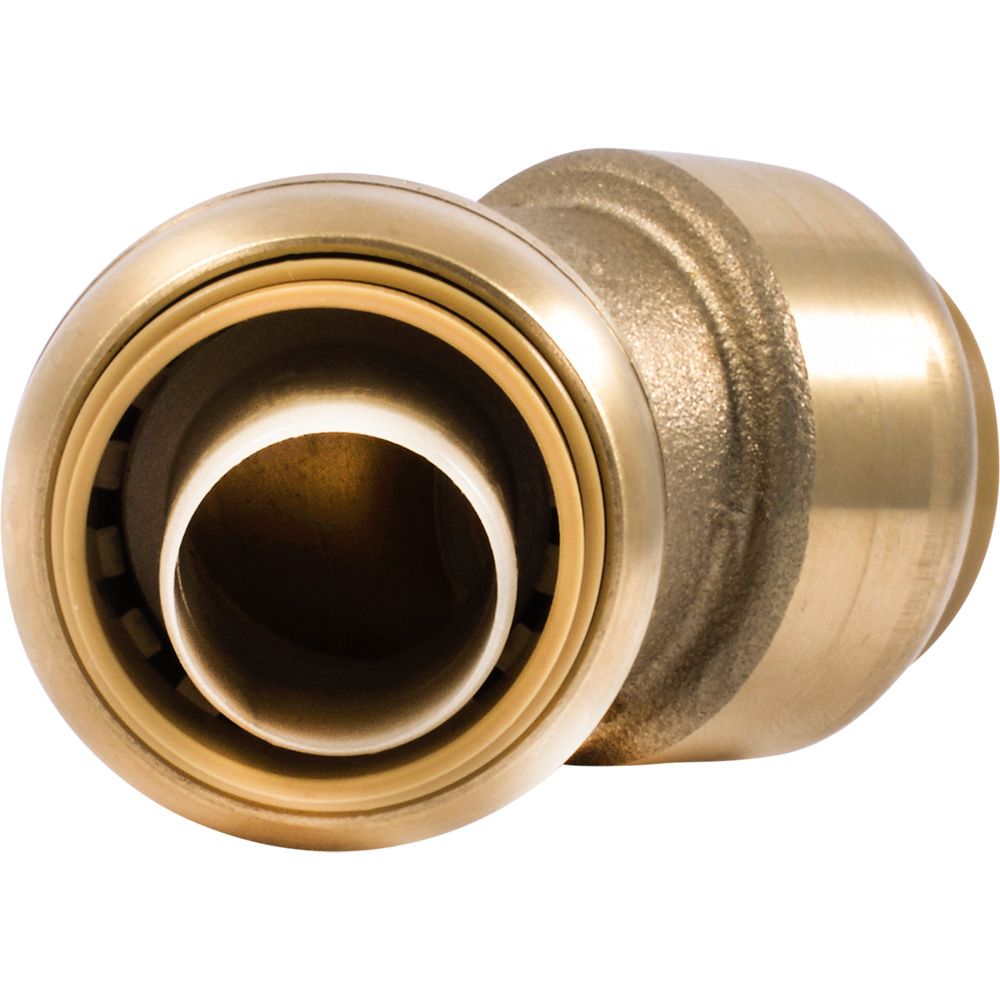

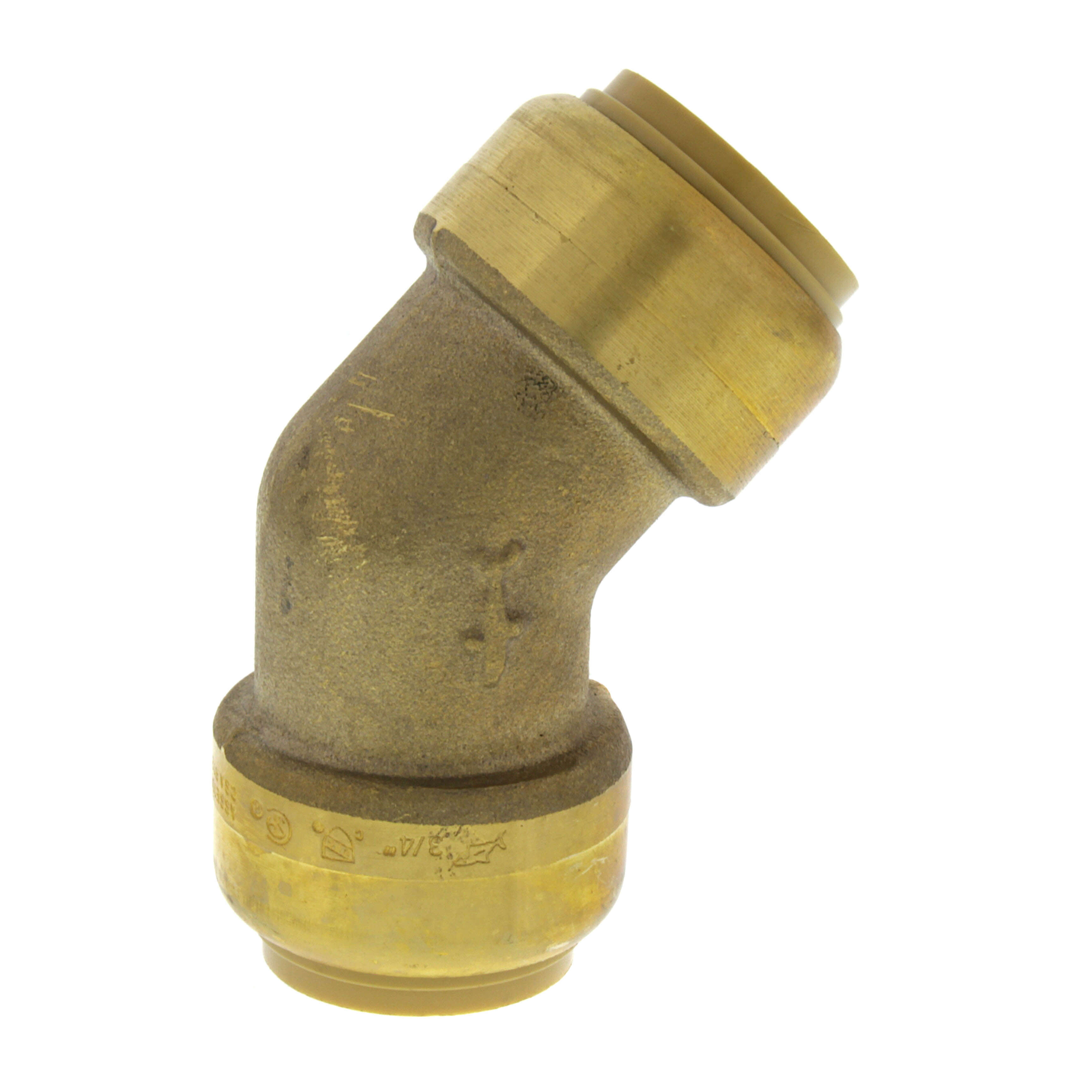

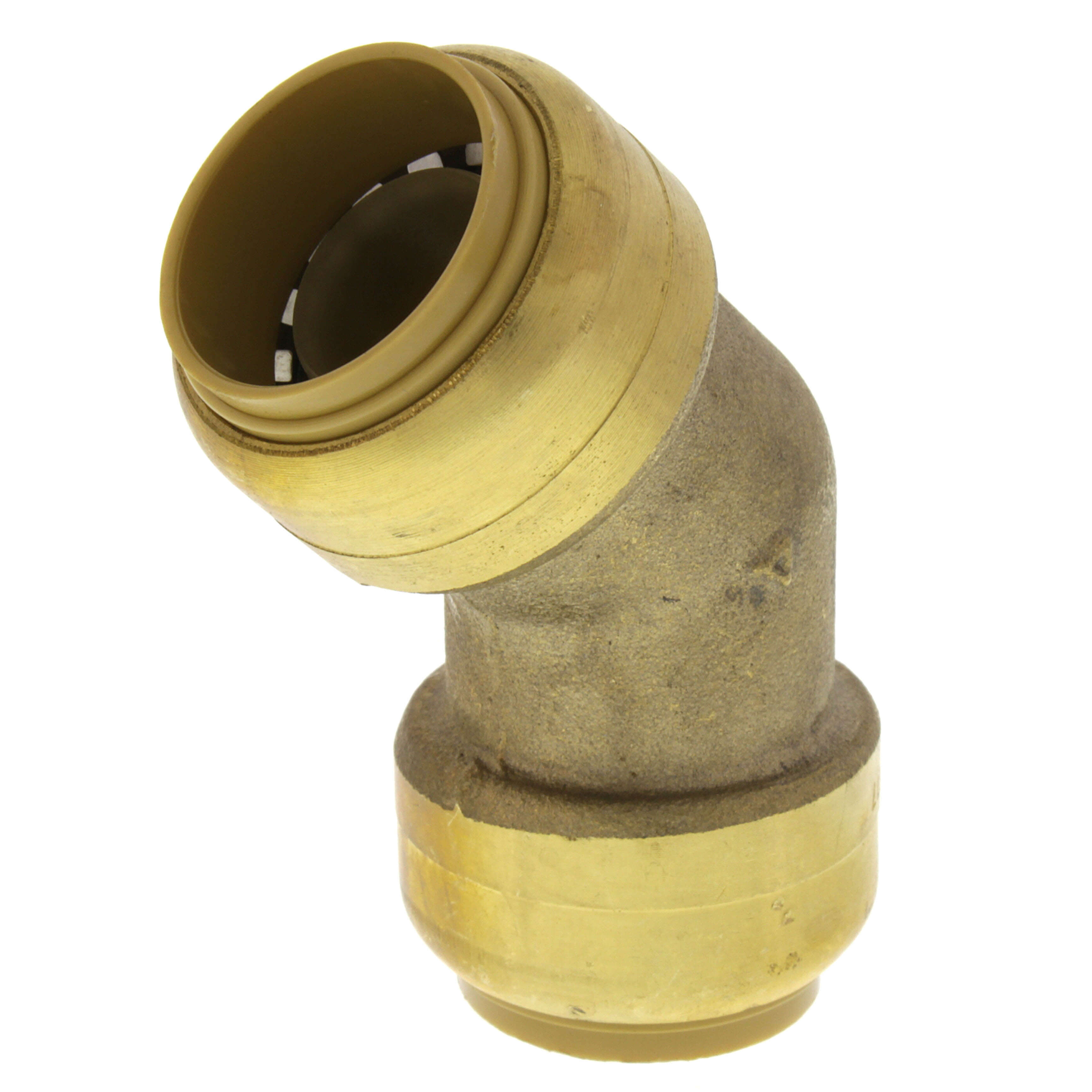

Sharkbite U656LF Brass Push Elbow 3/4 inch x 3/4 inch 45 Degree

Product Description

The SHARKBITE U656LF is a brass push elbow fitting with a 3/4 inch x 3/4 inch connection and a 45-degree angle. This elbow allows for connecting combinations of copper, PEX, CPVC, PE-RT, and HDPE pipe. It is designed for potable water and radiant heating applications. No soldering, crimping, or glue is required.

• Features a 45-degree elbow.
• Connects 3/4 inch x 3/4 inch pipes.
• Compatible with PEX, copper, CPVC, PE-RT and HDPE pipe.

Product Highlights

The SHARKBITE U656LF elbow fitting is easy to install and ideal for potable water and radiant heating applications.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: U656LF
• Country of Origin: Import

Technical Specifications

• Fitting Side A Tube Outer Diameter: 3/4 in
• Fitting Side B Tube Outer Diameter: 3/4 in
• Fitting Material: Brass
• Maximum Operating Pressure: 200 psi
• Maximum Operating Temperature: 200 Degrees F
• Specific Fitting Shape: 45 Degrees Elbow
• Release Type: Ring
• Fitting Side A Connection Type: Push-to-Connect
• Fitting Side B Connection Type: Push-to-Connect
• Item: Push to Connect Elbow
• End Style: Push-to-Connect
• Finish: Natural Brass/Polished Chrome
• Fitting/Connector Type: 45 deg Elbow
• Material: DZR Brass
• Nominal Size: 3/4 in
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
• Domestic/Import: Import
• Brand: SharkBite
• Model / MPN: U656LF
• Size: 3/4"
• Application: Heating, Plumbing
• Insertion Depth: 1-1/8"
• Tubing Compatibility: PEX, CPVC, Copper
• Fitting System Compatibility: Push Fit
• Max Pressure (Psi): 200
• Max Temp (°F): 200°F
• Push-In Size: 3/4" ID 7/8" OD
• Seal / O-Ring Material: EPDM
• Shape: Elbow
• Sub-Type: Union Elbow
• Type: Elbow
• Ca Prop 65: 1
• Product Certification Standard: NSF/ANSI 61
