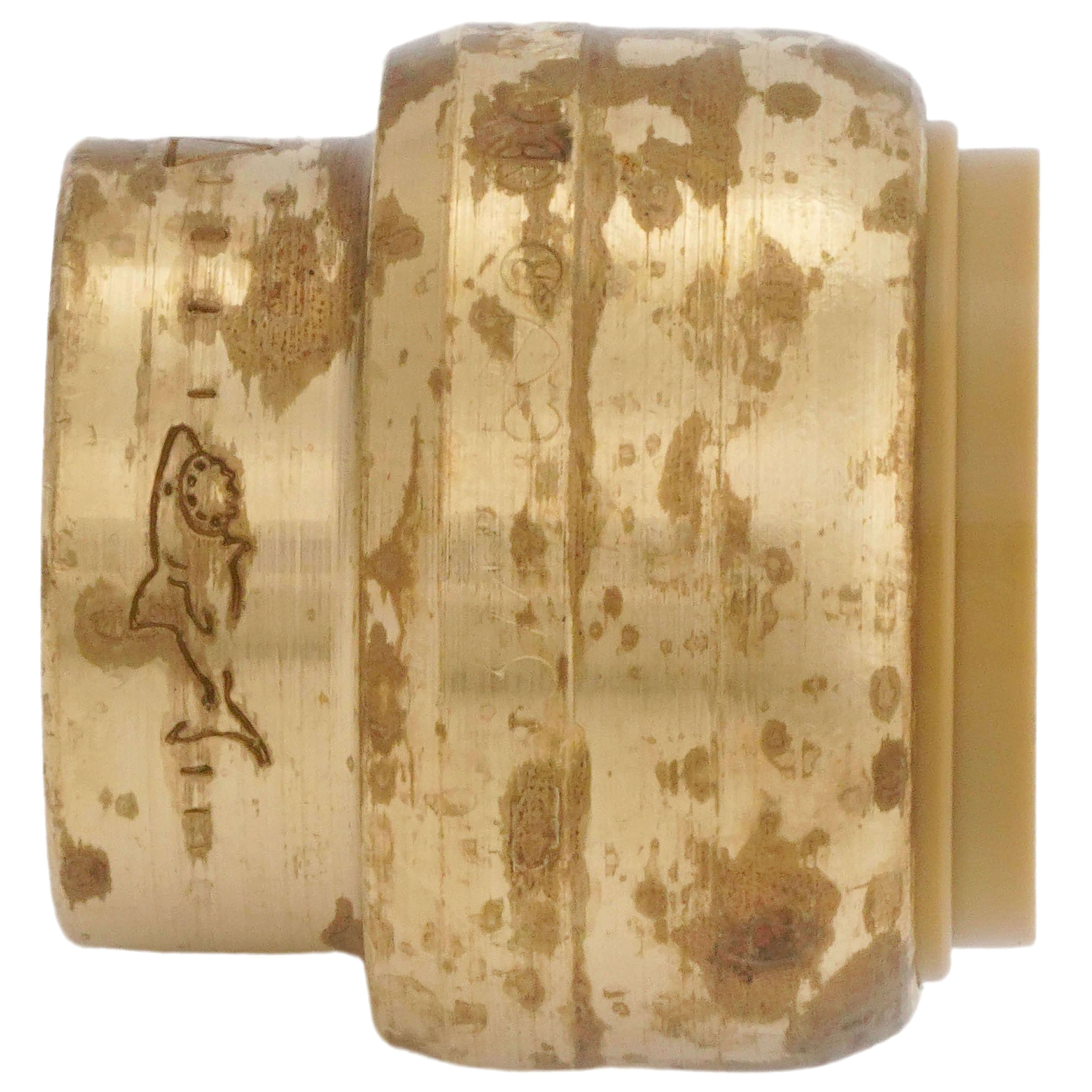

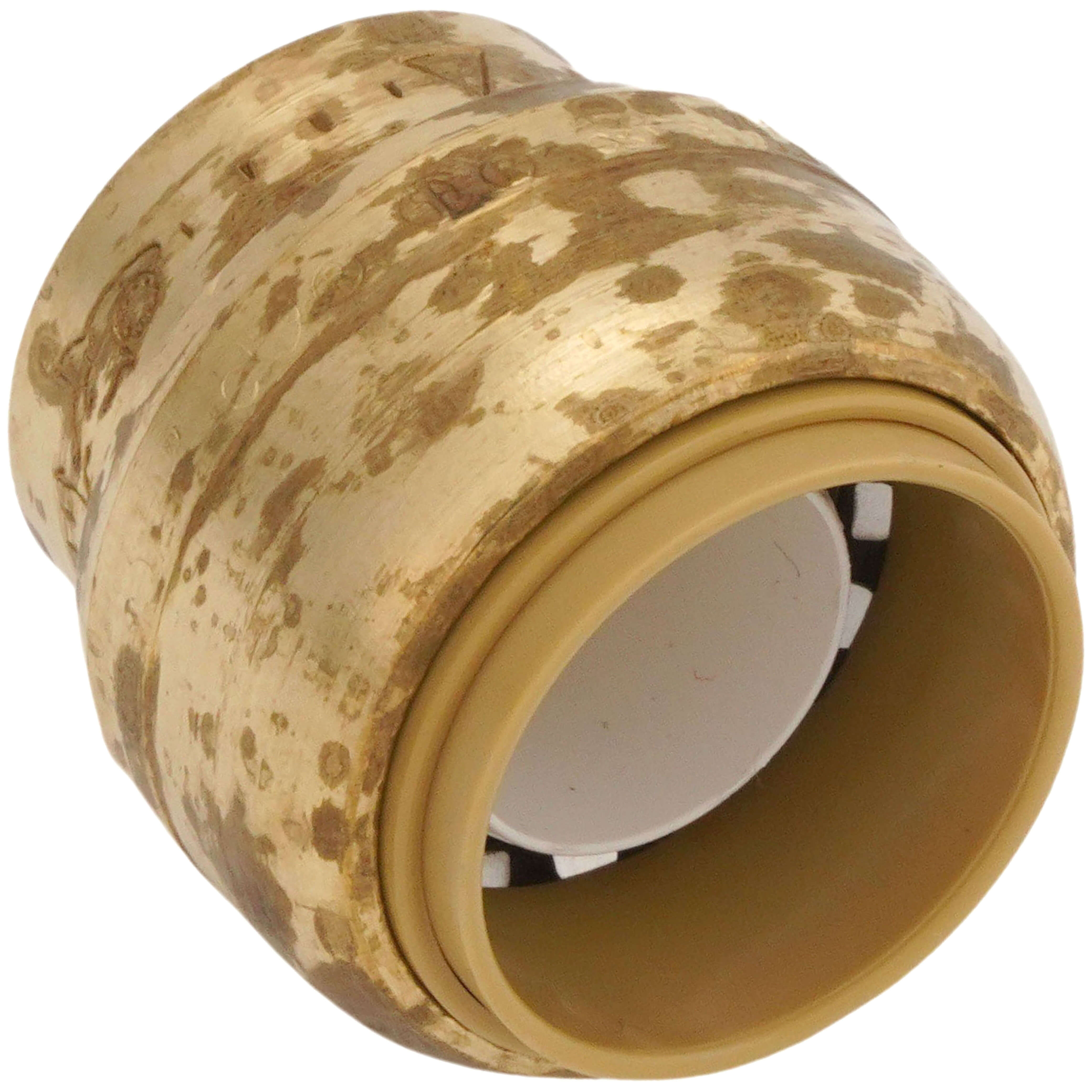

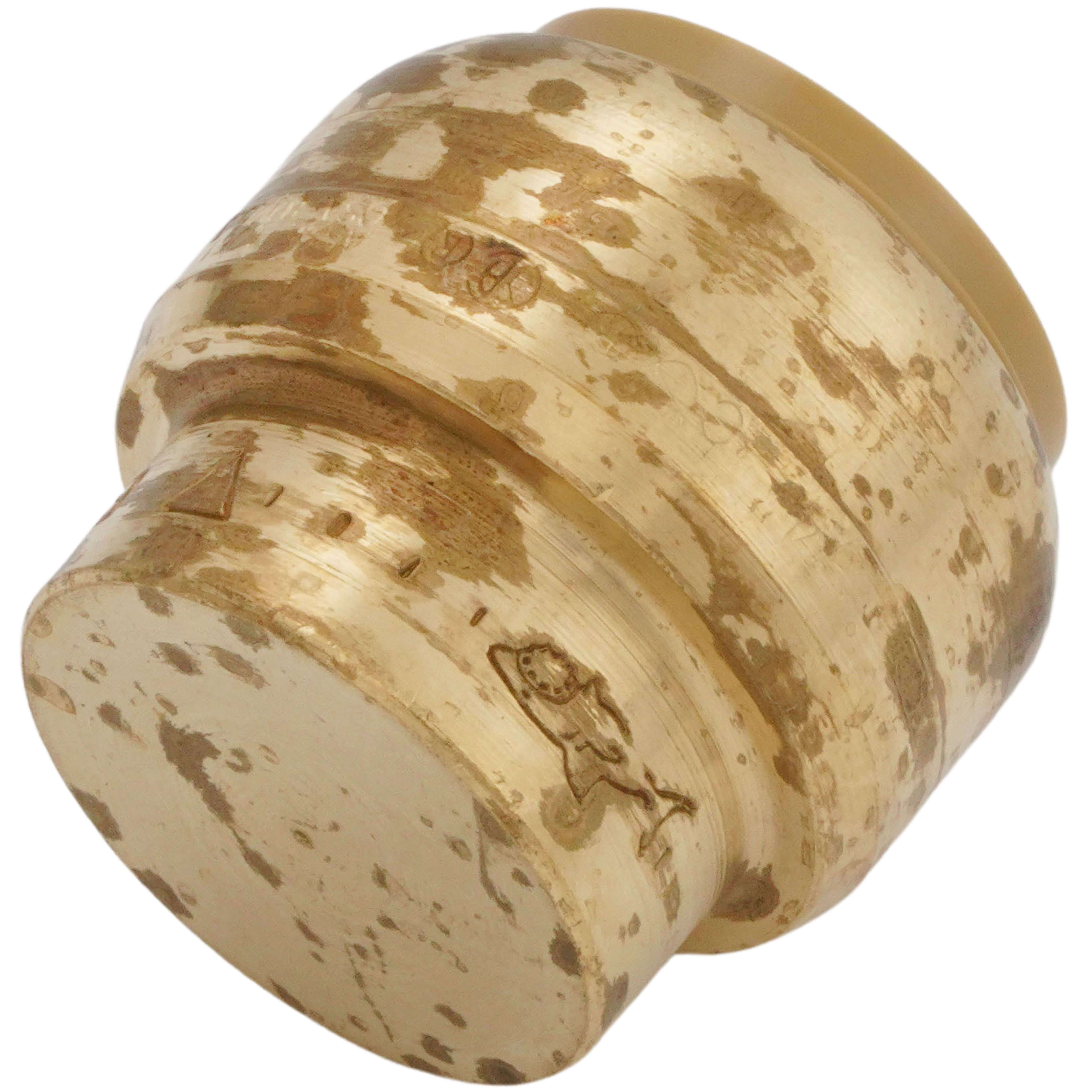

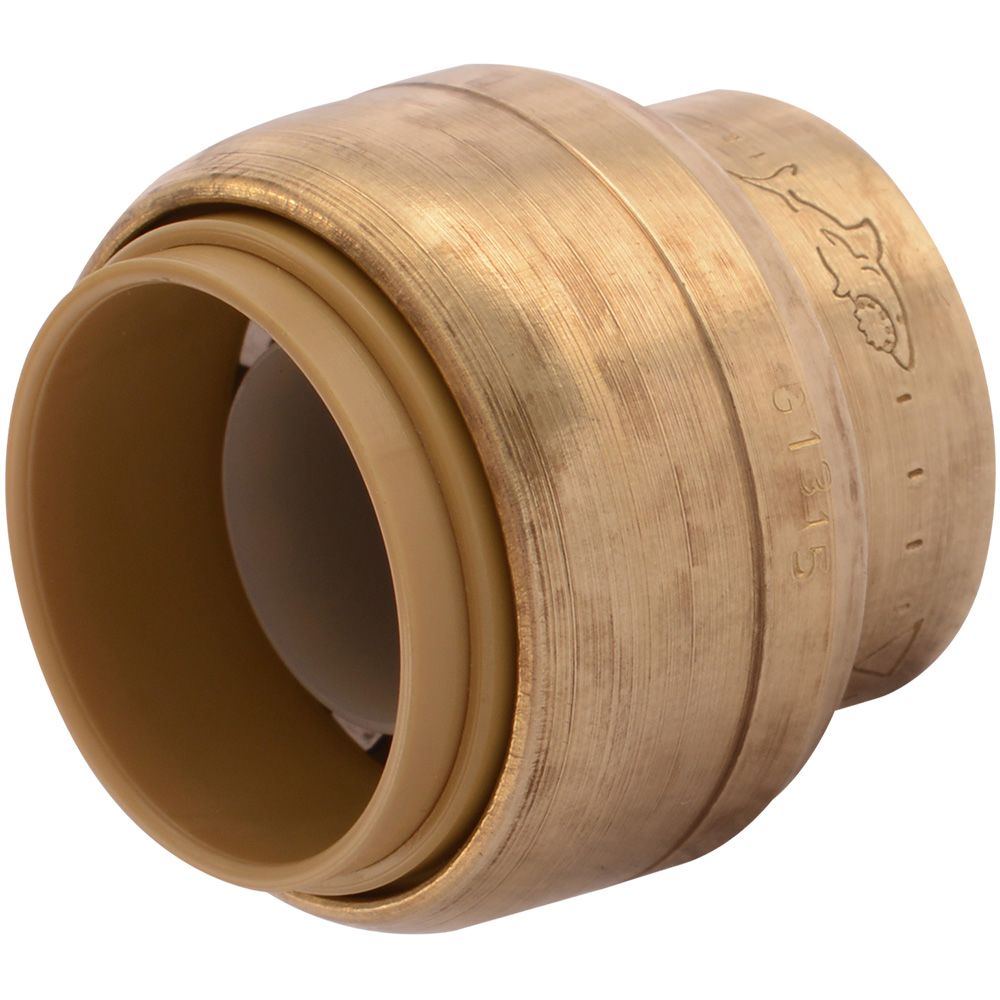

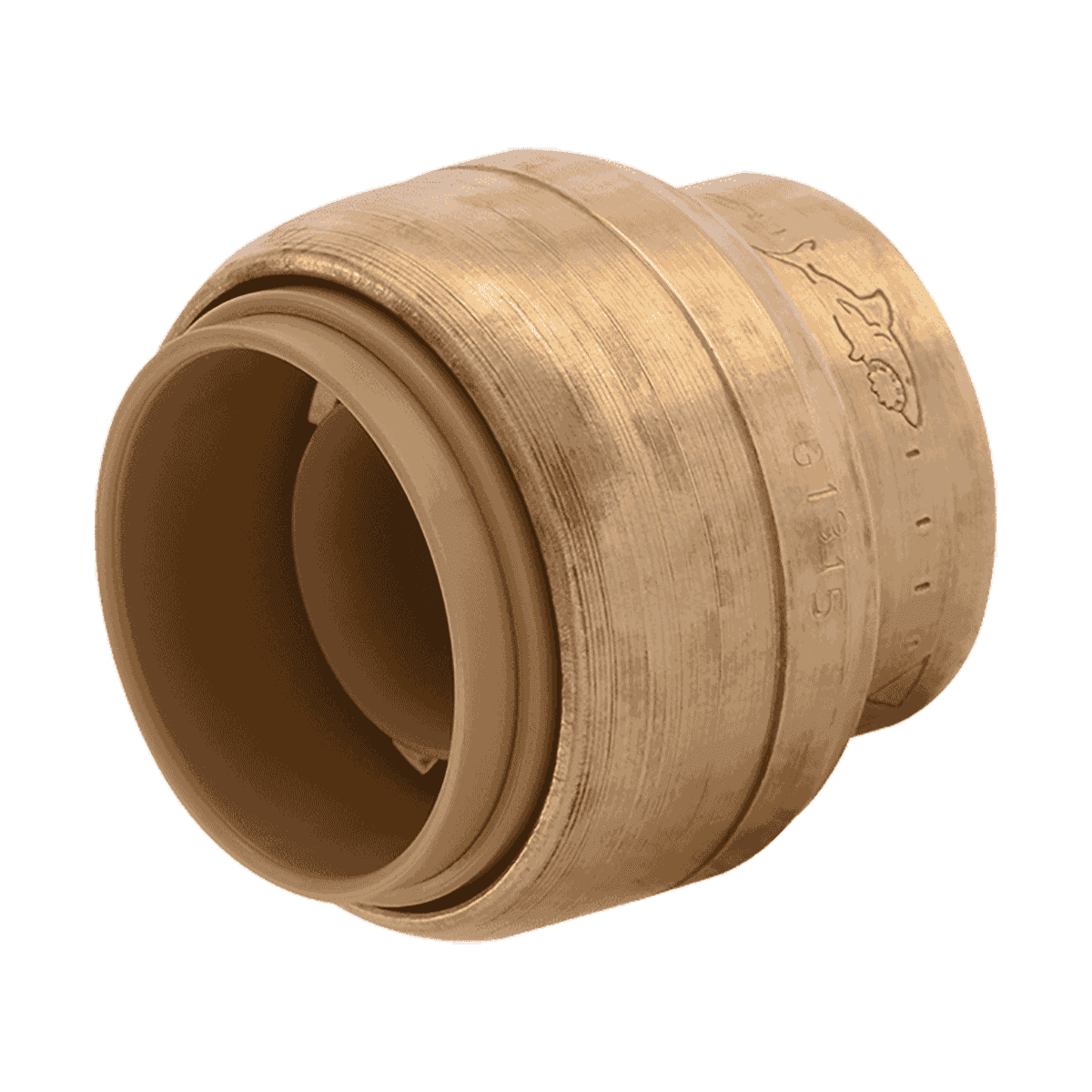

Sharkbite U518LF End Stop 3/4 Inch

Product Description

The SHARKBITE U518LF is an end stop fitting with a 3/4 inch nominal size. This push-to-connect fitting is lead-free and suitable for potable water and hydronic heating water distribution. It features a chrome-plated finish and is pressure rated to 200 PSI with a temperature rating of 200 Deg F.

• Instant Push-Fit Connection for Increased Ease-of-Use
• No Soldering, Clamps, Unions or Glue Required
• Integrated Design Means No Loose Components, Ensures Secure, Reliable Connection

Product Highlights

This end stop fitting provides a secure and reliable connection for various plumbing applications.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: U518LF
• Country of Origin: Import

Technical Specifications

• Applicable Standard: ASSE 1061, NSF/ANSI 14/61/372, IAPMO, CUPC, IPC
• Application: Potable Water and Hydronic Heating Water Distribution
• End Connection: Push-to-Connect
• Finish: Chrome Plated
• Material: DZR Natural Brass (Body), 316 Stainless Steel (Grab Ring), EPDM Rubber (O Ring), Polysulfone (Tube Support Liner)
• Nominal Size: 3/4 Inch
• Pressure Rating: 200 PSI
• Temperature Rating: 200 Deg F
• Type: End Stop
• Insertion Depth: 1.32 Inch
• Fitting/Connector Type: Cap
• Maximum Pressure: 200 psi
• Maximum Temperature: 200 deg F
• Length: 1.32 in
• Lead-Free: Lead-Free
• Size: 3/4"
• Fitting Type: Push-Fit
• Connection Type: Push-to-Connect
• PEX Size: 3/4"
• Max Temp (F): 200°F
• Standards Met: NSF
• Max Pressure (PSI): 200
• Tubing Compatibility: PEX
• Fitting System Compatibility: Push Fit
• Brand: SHARKBITE
• MPN: U518LF
