Product Description

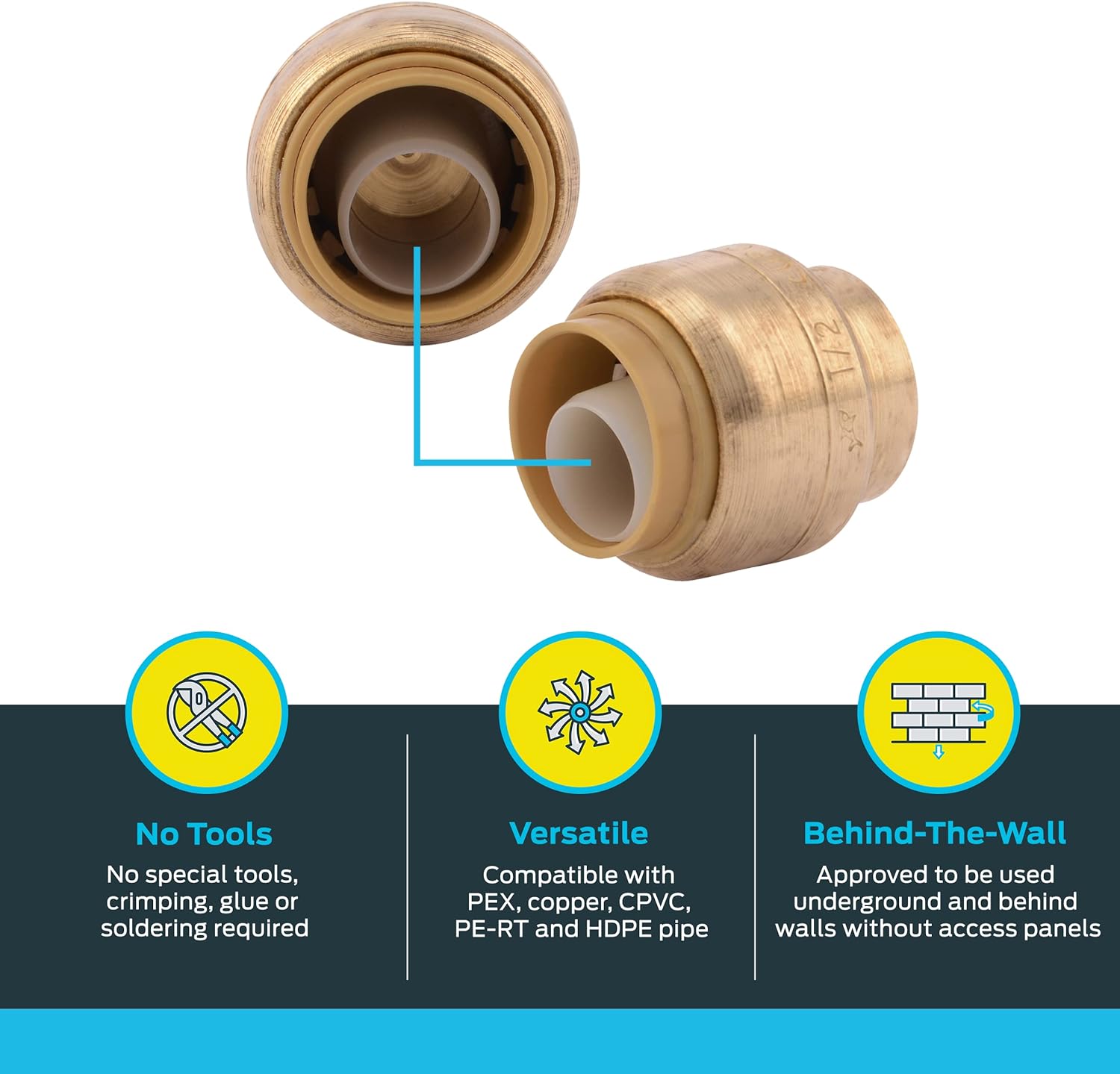

The SharkBite U514LF 1/2 Inch End Cap offers a high-grade DZR brass body designed for quick and secure installations. Ideal for both potable water and hydonic heating applications, this push-fit end cap enables a connection without the need for soldering, clamps, or glue.
- Lead-free, corrosion-resistant DZR brass construction

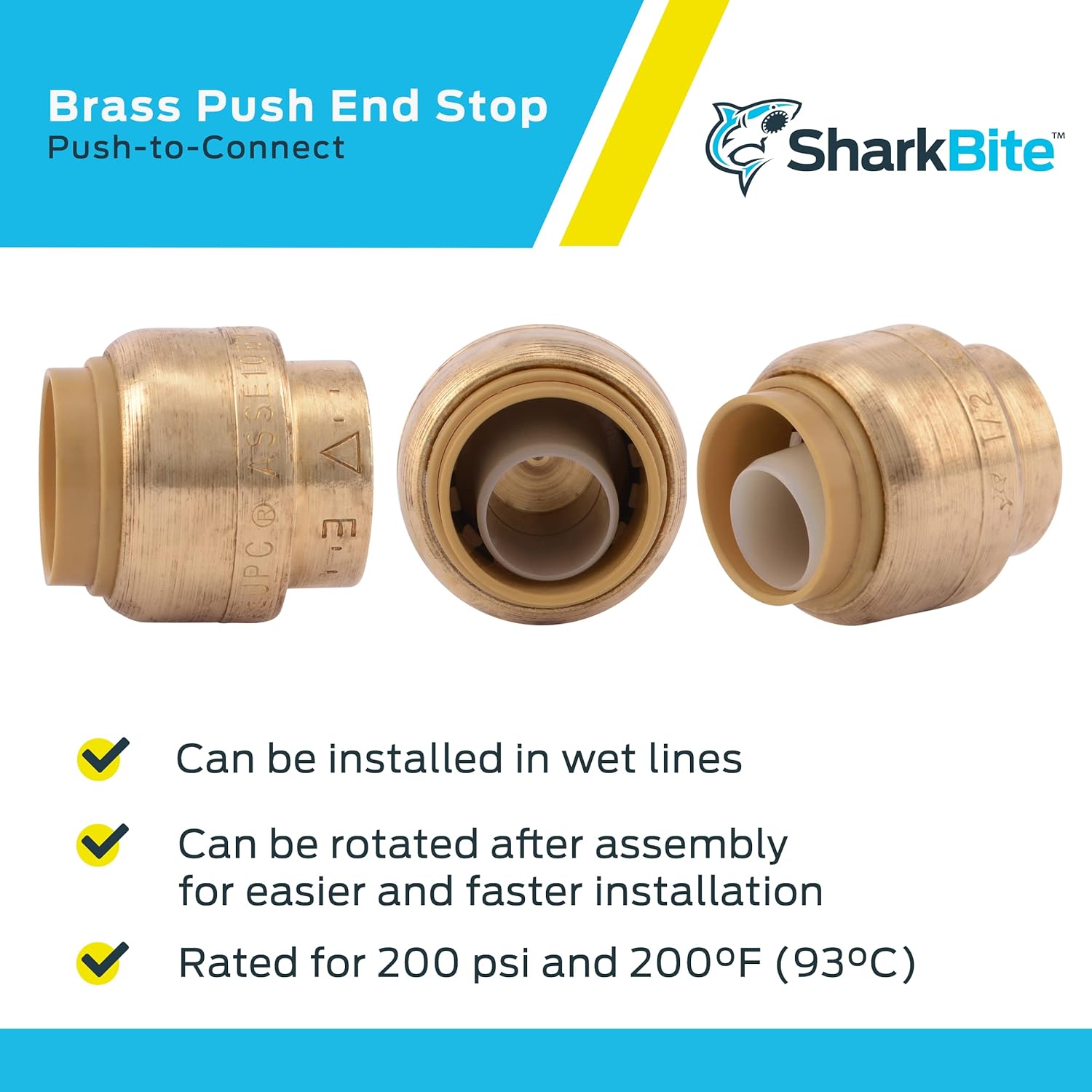

- Rated for 200 psi and 200 degrees Fahrenheit

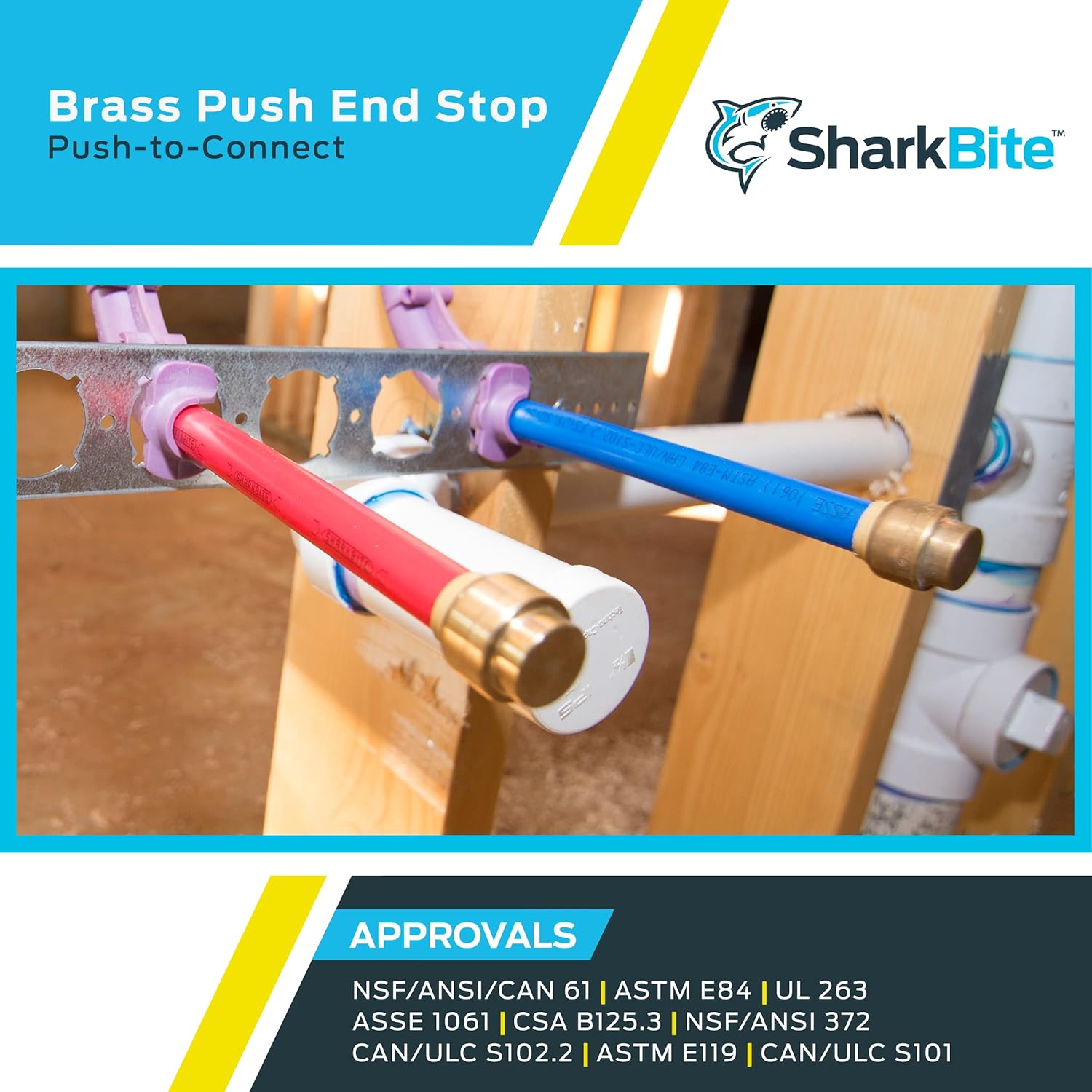

- Suitable for underground and behind-wall applications
Product Highlights
Utilizing a push-fit design, this fitting simplifies installations by making it possible for quick and reliable connections without the need for specialized tools. Certified for underground use and behind walls without access panels, the SharkBite U514LF enhances workflow efficiency on any job.
Product Information
Standard Information
-
Brand: SharkBite
-
MPN: U514LF
-
Material: DZR Brass
-
Connection Type: Push-to-Connect
-
Compatibility: Works with copper, PEX, CPVC
-
Color: Brass
Technical Specifications
-

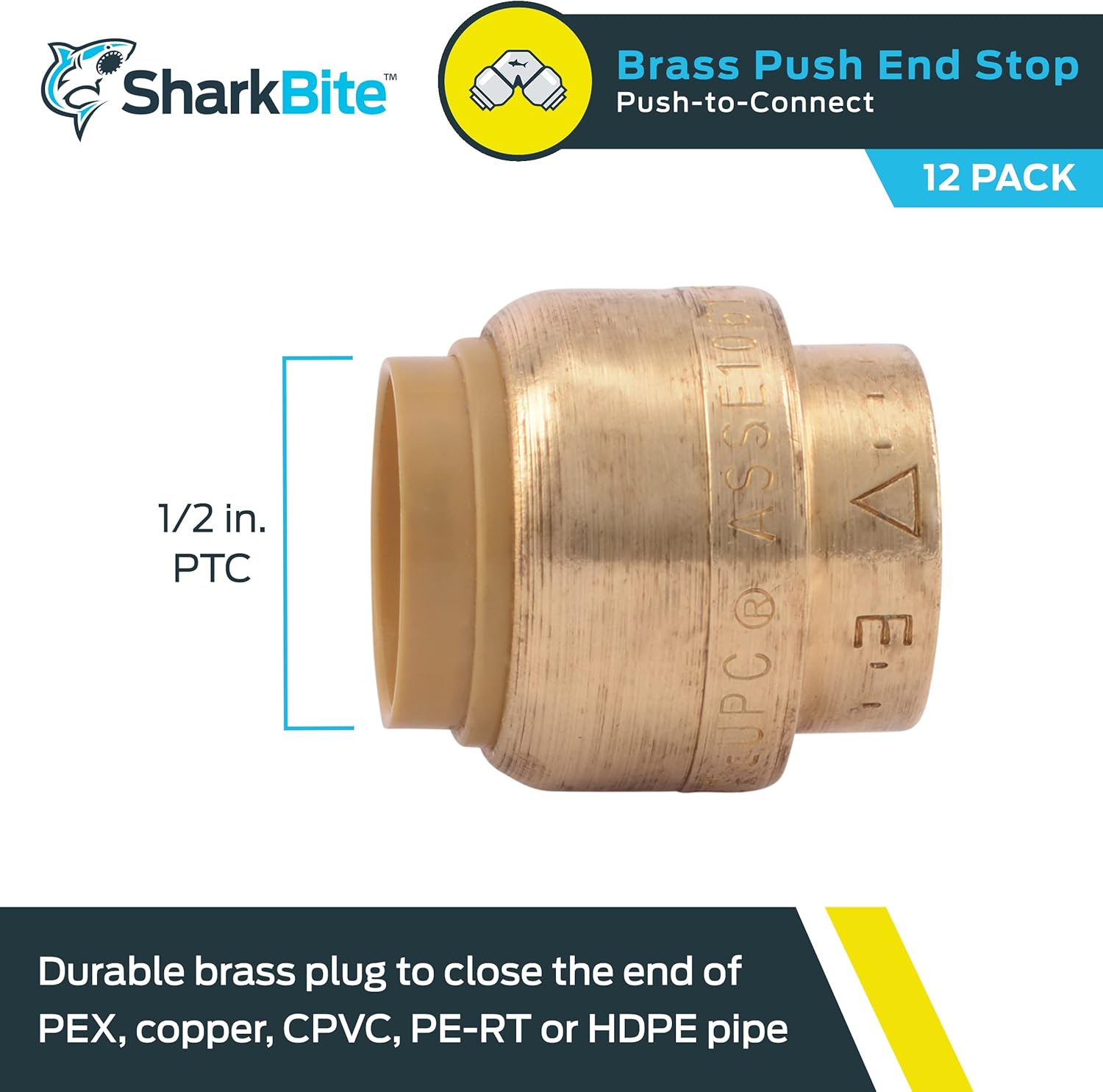

Size: 1/2 Inch
-
Temperature Range: 0 to 200 Degrees Fahrenheit
-
Pressure Rating: 200 psi
-
Standards: ASSE 1061, NSF/ANSI 61, CSA B125.3
- Certifications
-
Warranty: 25-Year Limited
