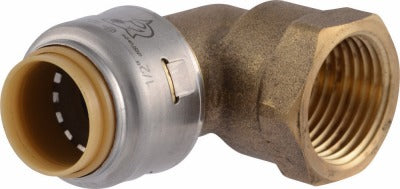

Sharkbite U308LFA 1/2x1/2 Fip Push-fit Elbow Lead Free 12pk

Product Description

The SharkBite U308LFA is a 1/2-inch x 1/2-inch lead-free female iron pipe (FIP) push-fit elbow fitting constructed from dezincification-resistant (DZR) brass. It uses the SharkBite push-fit connection system, which requires no soldering, crimping, or clamps. An integral tube liner is included to support tubing at the connection point. The fitting is rated to 200 psi and 200 degrees F, making it suitable for domestic water supply and hydronic distribution systems. Plumbers and pipefitters install this fitting in residential and light commercial applications where a reliable 90-degree directional change is needed in a supply line.

The U308LFA is designed for use with copper tubing (copper tube size), CPVC, and PEX pipe. It is sold in a bag pack of 12 units, making it practical for multi-fixture rough-ins, service calls, or repair work. The push-fit design allows for fast connections in tight spaces where torch work is not practical or permitted. It is certified for underground applications as a manufactured joint without the need for an access panel, adding flexibility in concealed or buried piping situations.

Key Features

• Push-fit connection — no soldering, crimping, or clamps required
• Compatible with copper (CTS), CPVC, and PEX pipe
• Integral tube liner included for PEX and CPVC support
• Rated to 200 psi and 200 degrees F
• Certified for underground applications without an access panel
• Lead-free compliant per Federal Law 111-380
• Design certified to ASSE 1061 and NSF 61 standards; listed with IAPMO; meets UPC, IPC, and cUPC requirements

Compatibility

Designed for use with 1/2-inch copper tubing (copper tube size), CPVC, and PEX pipe. Certified for potable water and hydronic water distribution systems.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable IPC or UPC code requirements. Before installation, shut off the water supply and depressurize the line completely. Ensure pipe ends are cut cleanly and squarely, deburred, and free of debris before inserting into the push-fit socket. For PEX and CPVC, confirm the integral tube liner is properly seated before making the connection.
