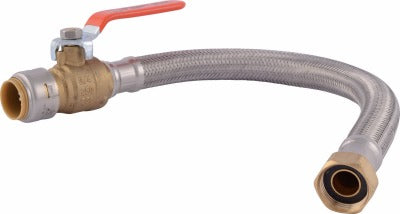

Sharkbite U3088FLEX18BVLF 3/4in Fip 18in Braided Connector Ball Valve

Product Description

The SHARKBITE CASH ACME U3088FLEX18BVLF is a lead-free, braided stainless steel water heater connector designed for residential and light commercial water heater installations. Built with a 3/4-inch female iron pipe (FIP) inlet and an 18-inch flexible stainless steel braid, this connector integrates a SharkBite push-fit end fitting alongside a ball valve for quick shutoff capability at the appliance connection point. The fitting body is constructed of DZR brass for corrosion resistance. Rated to 200 psi and 200 degrees F, it meets the pressure and temperature demands of standard water heater service. Licensed plumbers and water heater installers are the primary trade for this fitting.

This connector is suited for water heater installations in residential and light commercial settings where a flexible appliance connection is required between the water heater and rigid supply piping. The SharkBite push-fit end accepts copper tubing, CPVC, and PEX, eliminating the need for soldering or crimping tools at that connection. The integral tube liner is included for use with PEX. The 18-inch length accommodates standard water heater rough-in spacing. The built-in ball valve allows the water supply to be shut off directly at the heater without returning to a remote shutoff.

Key Features

• SharkBite push-fit connection compatible with copper, CPVC, and PEX tubing with included integral tube liner
• Integrated ball valve allows appliance-level shutoff
• DZR brass fitting body resists dezincification corrosion
• Rated to 200 psi and 200 degrees F
• Lead-free construction compliant with Federal Law 111-380
• Certified for underground applications as a manufactured joint without need for an access panel
• Certified for use on potable and hydronic water distribution systems

Compatibility

Compatible with copper tubing, CPVC, and PEX pipe at the push-fit end. The FIP end connects to standard 3/4-inch female iron pipe threaded fittings. Design certified to ASSE 1061 and NSF 61 standards. Listed with IAPMO and meets UPC, IPC, and CUPC requirements.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes, including IPC and UPC requirements where applicable. Shut off the main water supply and relieve system pressure before removing any existing connector or fitting. The push-fit end requires that tubing be cut square and fully deburred before insertion to ensure a proper seal. Do not exceed the rated pressure or temperature limits of 200 psi and 200 degrees F.
