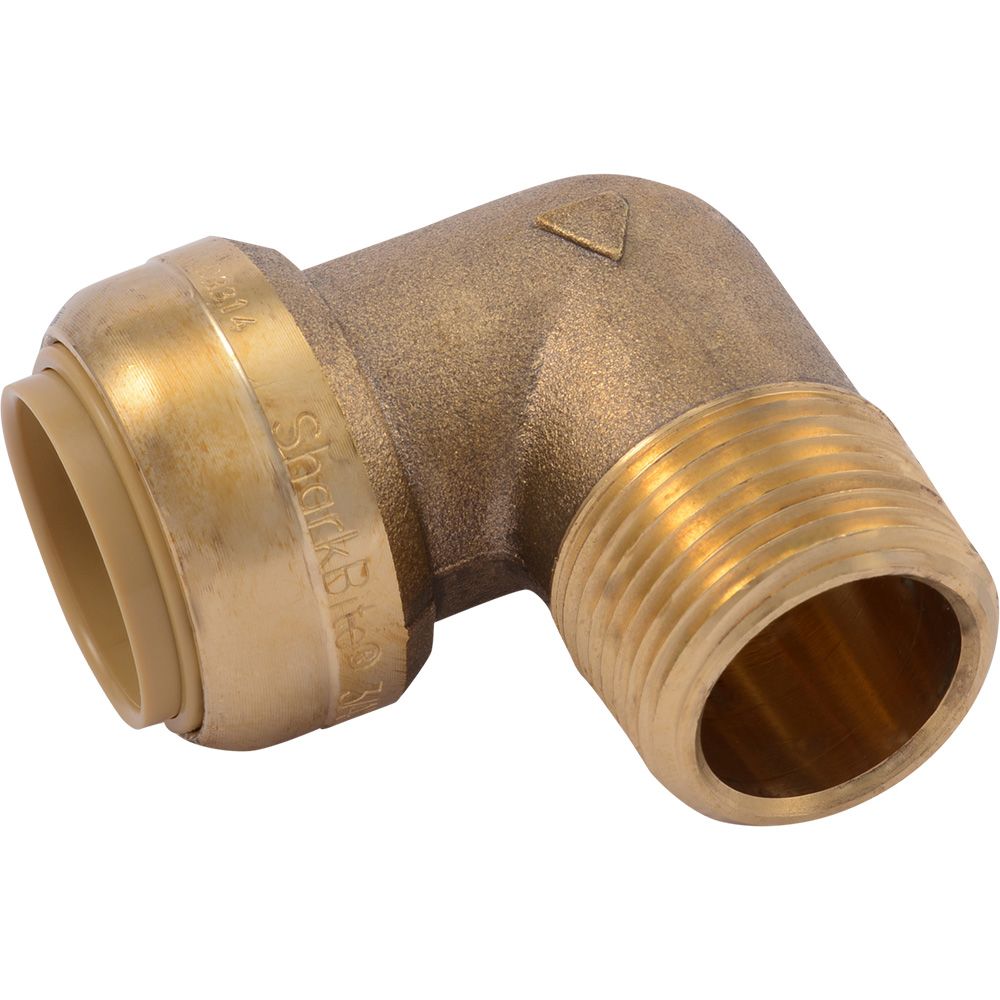

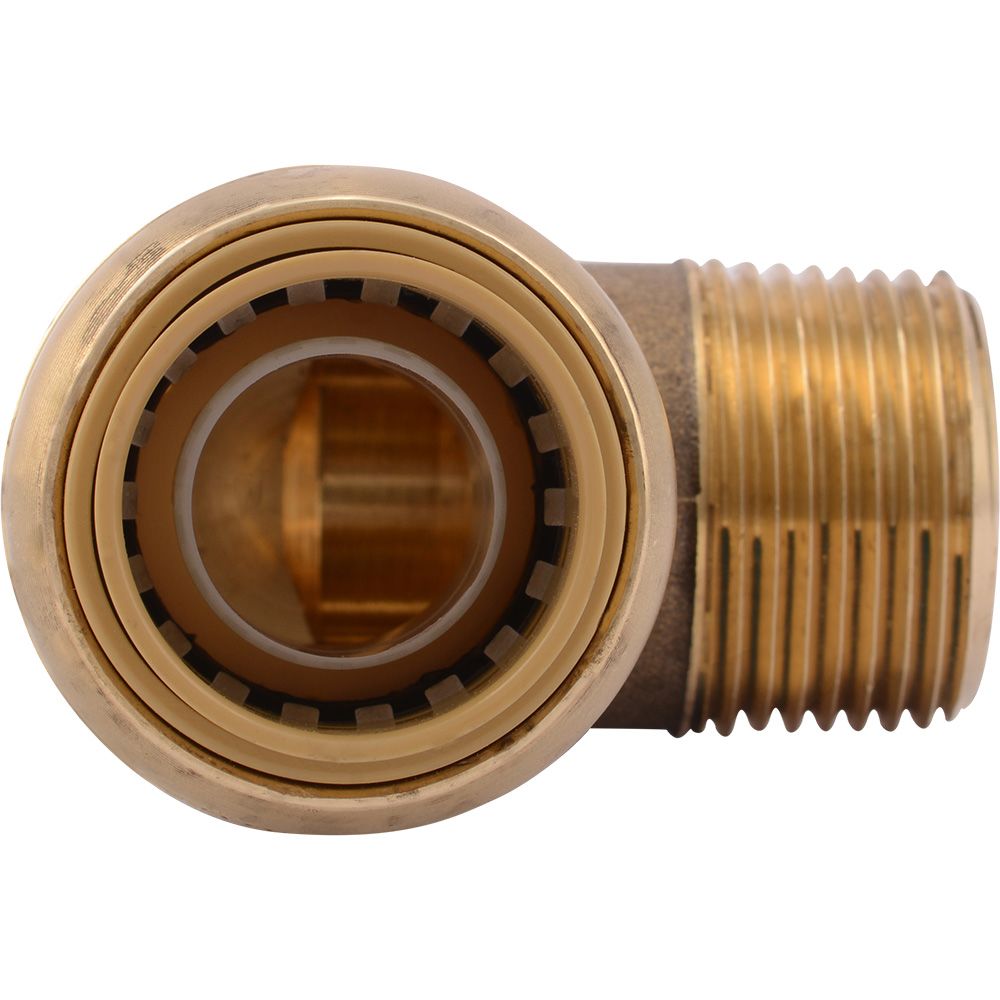

Sharkbite U286LF 90 Degree Male Elbow 3/4 inches P X 3/4 inches MIP

Product Description

The SHARKBITE U286LF 90 Degree Male Elbow is designed for making 90-degree connections between pipes and MNPT threads. This lead-free elbow features a push-to-connect design, allowing for quick and easy installation without special tools, crimping, glue, or soldering. It is suitable for use with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipes.

• 90 Degree Male Elbow
• 3/4" P X 3/4" MIP
• Lead Free

Product Highlights

Ideal for tight spaces and wet lines, this elbow is approved for underground and behind-the-wall applications and is rated for 200 PSI and 200°F.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: U286LF
• Country of Origin: AU

Technical Specifications

• MPN: U286LF
• Brand: SHARKBITE
• Material: Brass
• Fitting Type: 90 deg Elbow
• Size: 3/4 in
• Connection Type: Male (MPT)
• End Style: Push-Fit x MNPT
• Finish: Natural Brass/Chrome Plated
• Mfg Standards/Approvals: ASSE 1061|CSA B125.3|IAPMO/IPC/cUPC/UPC Listed|NSF/ANSI 372-2010/14/61
• Nominal Size: 3/4 In
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
• PEX Size: 3/4"
• Application: Climate Control
• Thread Size: 3/4"
• Thread Type: Male
• Max Temp (F): 200°F
• Standards Met: NSF
• Insertion Depth: 1-1/8"
• Max Pressure (PSI): 200
• Tubing Compatibility: PEX, CPVC, OD Controlled Copper
• Inlet Connection: 3/4" MPT
• Outlet Connection: 3/4" MPT
• Push-In Size: 3/4" ID 7/8" OD
• Seal / O-Ring Material: EPDM
• Shape: Elbow
• Sub-Type: Male Elbow
• Type: Elbow
• Product Certification Standard: NSF/ANSI 61
• Fitting/Connector Type: 90 deg Elbow
• Fitting Shape: 90° Elbow with Swivel
• Fitting Material: Brass
• Compatible Copper Tube Type: Type K; Type L; Type M
• System of Measurement: Imperial
• Temperature Range: 32 °F to 200 °F
• Maximum Operating Pressure: 200 psi
• Compatible Tube Material: Copper; CPVC; HDPE; PE-RT; PEX
• Fitting Side A Connection Type: Push-to-Connect
• Fitting Side A Copper Tube Size: 3/4 in
• Fitting Side A Pipe Size: 3/4 in
• Thread Size A: 3/4"
• Fitting Side B Connection Type: MNPT
• Fitting Side B Pipe Size: 3/4 in
• Overall Length: 2-5/32 in
• Release Type: Ring
• Release Ring Material: Stainless Steel
• Resistance Properties: Corrosion-Resistant
• Standards: ASSE 1061; IAPMO; NSF/ANSI 14; NSF/ANSI 372; NSF/ANSI 61
