Product Description

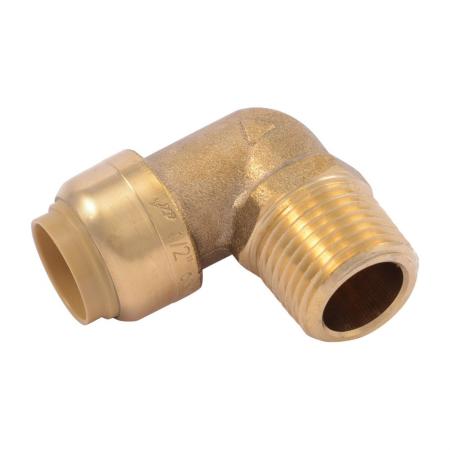

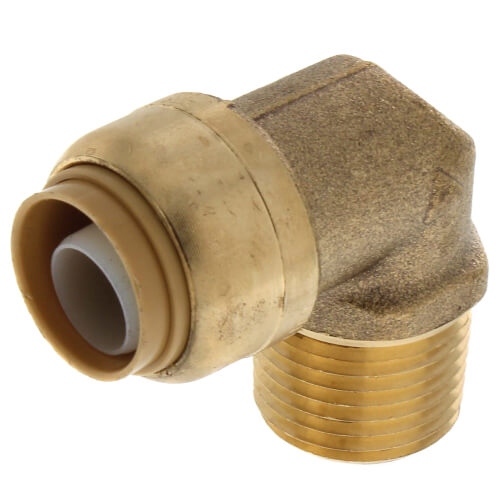

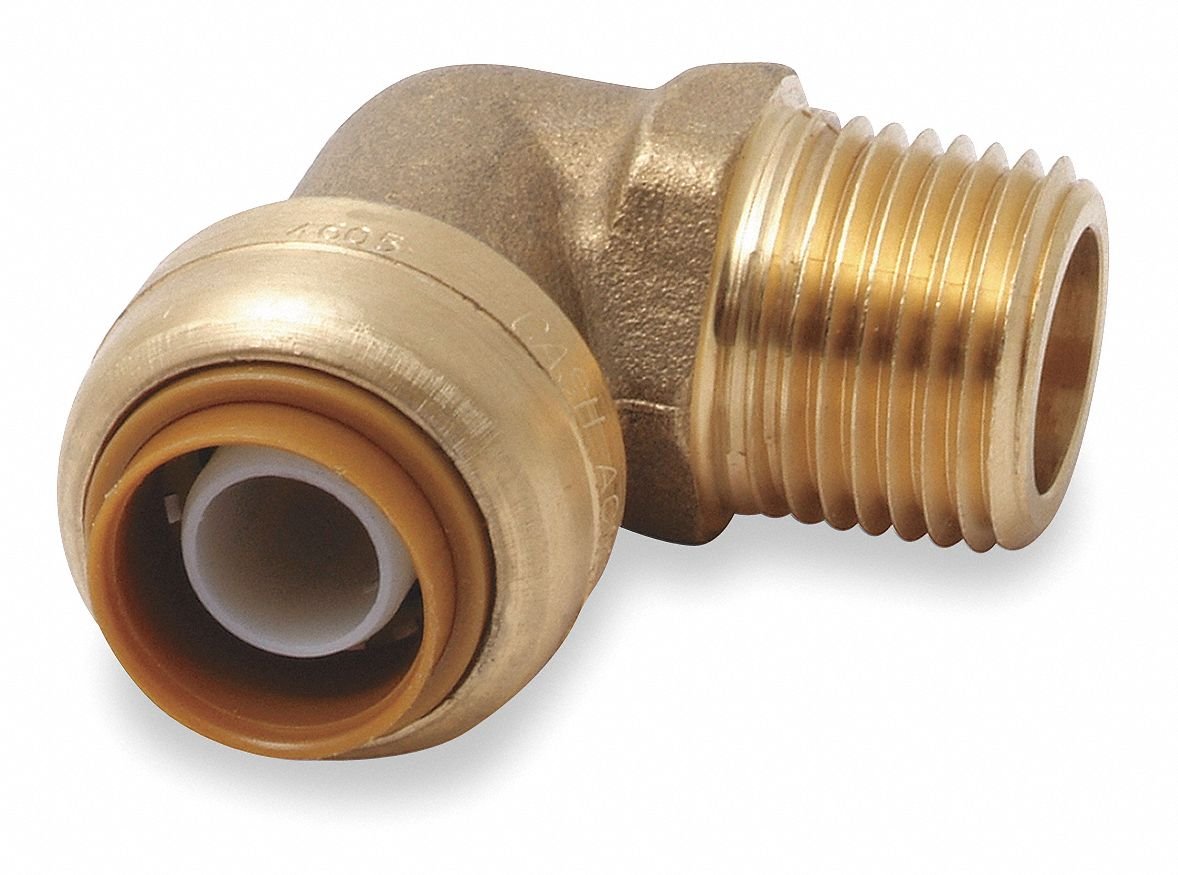

The SharkBite U280LF swivel elbow is a versatile solution designed for 90-degree transitions in plumbing systems. Made with DZR brass, this fitting connects copper, PEX, and CPVC pipes easily without the need for soldering, unions, or glue.
- Fits 1/2 inch nominal size
- Maximum pressure: 200 psi
- Temperature range: 0 to 200 degrees Fahrenheit
Product Highlights
This fitting features a push-fit connection for quick and reliable installations. It is certified for use in potable water and hydronic heating systems, making it suitable for various applications inside or outside walls, including underground installations.
Product Information
Standard Information
-
Brand: SharkBite
-
MPN: U280LF
Technical Specifications
-
Fitting Connection Type: Push-Fit
-
Nominal Size: 1/2 inch
-
Pressure Rating: 200 psi
-
Temperature Rating: 0 to 200 degrees Fahrenheit
-
Material: DZR Brass
-
Standard Certifications: ANSI/NSF-61, ASSE 1061 / NSF 89, CPUC Listed, IAPMO, IGC 188, IPC, UPC
-
Gasket Material: EPDM
-
Special Features: Connects copper, PEX, and CPVC without soldering
