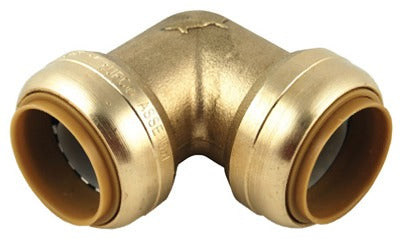

Sharkbite U260LFA 1 Inch Lead Free Push Fit Elbow 3-pack

Product Description

The SHARKBITE U260LFA is a 1-inch lead free push fit 90-degree elbow designed for fast, tool-free connections in residential and light commercial plumbing systems. Constructed from DZR brass, this fitting handles working pressures up to 200 psi and temperatures up to 200 degrees F. An integral tube liner is included to support the pipe end and maintain a secure seal. The U260LFA is certified lead free in compliance with Federal Law 111-380 and is design certified to ASSE 1061 and NSF 61 standards. Each package contains 3 fittings sold as a unit.

This elbow is compatible with copper tubing, CPVC, and PEX pipe in 1-inch copper tube size. It is suited for potable water and hydronic water distribution applications. The fitting is certified for underground installations as a manufactured joint, eliminating the need for an access panel. Typical applications include branch line connections, reroutes, and repairs in residential water distribution systems where soldering or crimping is not practical or desired.

Key Features

• Push fit connection — no soldering, crimping, or special tools required
• DZR brass construction for corrosion resistance in potable water service
• Rated to 200 psi and 200 degrees F working conditions
• Integral tube liner included for PEX and CPVC pipe support
• Certified for underground use as a manufactured joint without an access panel
• Lead free compliant per Federal Law 111-380
• Listed with IAPMO; meets UPC, IPC, and CUPC requirements

Compatibility

Compatible with 1-inch copper tubing (copper tube size), CPVC, and PEX pipe. Certified for use on potable and hydronic water distribution systems.

Installation Notes

Push fit fittings of this type are installed by licensed plumbers working under applicable local plumbing codes referencing the IPC or UPC. Shut off the water supply and depressurize the line before cutting or fitting. Ensure pipe ends are cut square, deburred, and cleaned before insertion to achieve a proper seal. For PEX and CPVC, confirm the integral tube liner is seated correctly inside the pipe end prior to pushing the fitting into position.
