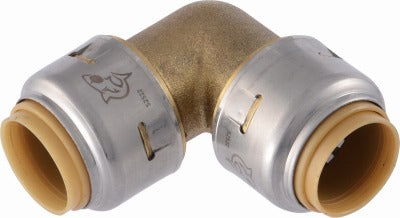

Sharkbite U248LFA 1/2 Inch Push Fit Elbow Lead Free 24 Pack

Product Description

The SHARKBITE U248LFA is a 1/2 inch x 1/2 inch push-fit 90-degree elbow fitting constructed from dezincification-resistant (DZR) brass. It connects to copper tubing (CTS), CPVC, and PEX pipe without soldering, crimping, or threading. An integral tube liner is included to support PEX connections. Rated to 200 PSI and 200 degrees F, this fitting meets the pressure and temperature demands of residential and light commercial potable water and hydronic distribution systems. Licensed plumbers and pipe fitters install it as a fast, code-compliant solution where directional changes are needed in supply lines. This package contains 24 fittings.

The U248LFA is suited for residential and commercial plumbing applications including domestic cold and hot water supply, hydronic heating distribution, and in-wall or underground piping. Its certification for underground use as a manufactured joint eliminates the need for access panels, making it viable for direct-burial applications. The push-fit mechanism allows tool-free installation in tight spaces where a torch or press tool cannot be used efficiently.

Key Features

• Push-fit connection — no solder, crimp, or thread required
• Compatible with copper CTS, CPVC, and PEX pipe types
• Integral tube liner included for PEX support
• DZR brass construction resists dezincification in potable water service
• Certified for underground applications as a manufactured joint — no access panel required
• Lead free compliant per Federal Law 111-380

Compatibility

Designed for use with 1/2 inch copper tubing (CTS), CPVC, and PEX pipe. Certified for potable water and hydronic water distribution systems. Listed with IAPMO and meets UPC, IPC, and CUPC requirements.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter. Shut off the water supply and depressurize the line before cutting and fitting. Pipe ends must be cut cleanly and squarely and deburred before insertion into the push-fit collar. Verify that the correct pipe type and outside diameter are confirmed before assembly, as improper pipe OD will result in a failed seal.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
