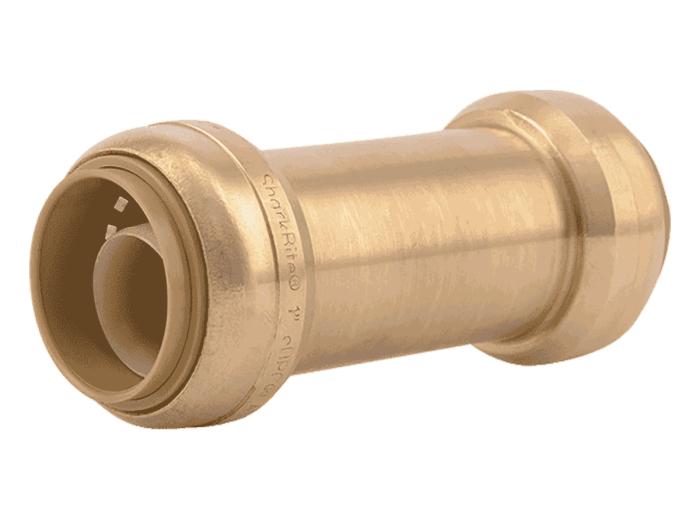

SHARKBITE U2020-0000LF Check Valve 1 in x 1 in

Product Description

The SHARKBITE U2020-0000LF check valve is designed to prevent water from flowing backward. This valve works with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe. It features a push-to-connect design for simple installation. This check valve can be installed in tight spaces and supports both horizontal and vertical installations.

• Compatible with various pipe materials including PEX, copper, and CPVC.
• No special tools required for installation, reducing errors.
• Spring-loaded design aids in preventing reverse water flow.

Product Highlights

This check valve is ideal for potable water and radiant heating applications.

Product Information

Standard Information

• Brand: Sharkbite
• MPN: U2020-0000LF

Technical Specifications

• Pipe Size: 1 in x 1 in
• Connection Type: Push-to-Connect
• Pressure Rating: 150 psi
• Body Material: Brass
• Seal Material: EPDM
• Temperature Rating: 200 deg F
• Applicable Standards: NSF/ANSI 14/16, NSF 372, IAPMO, CSA B125.3, ASSE 1061
• Application: Potable water, radiant heating
