Product Description

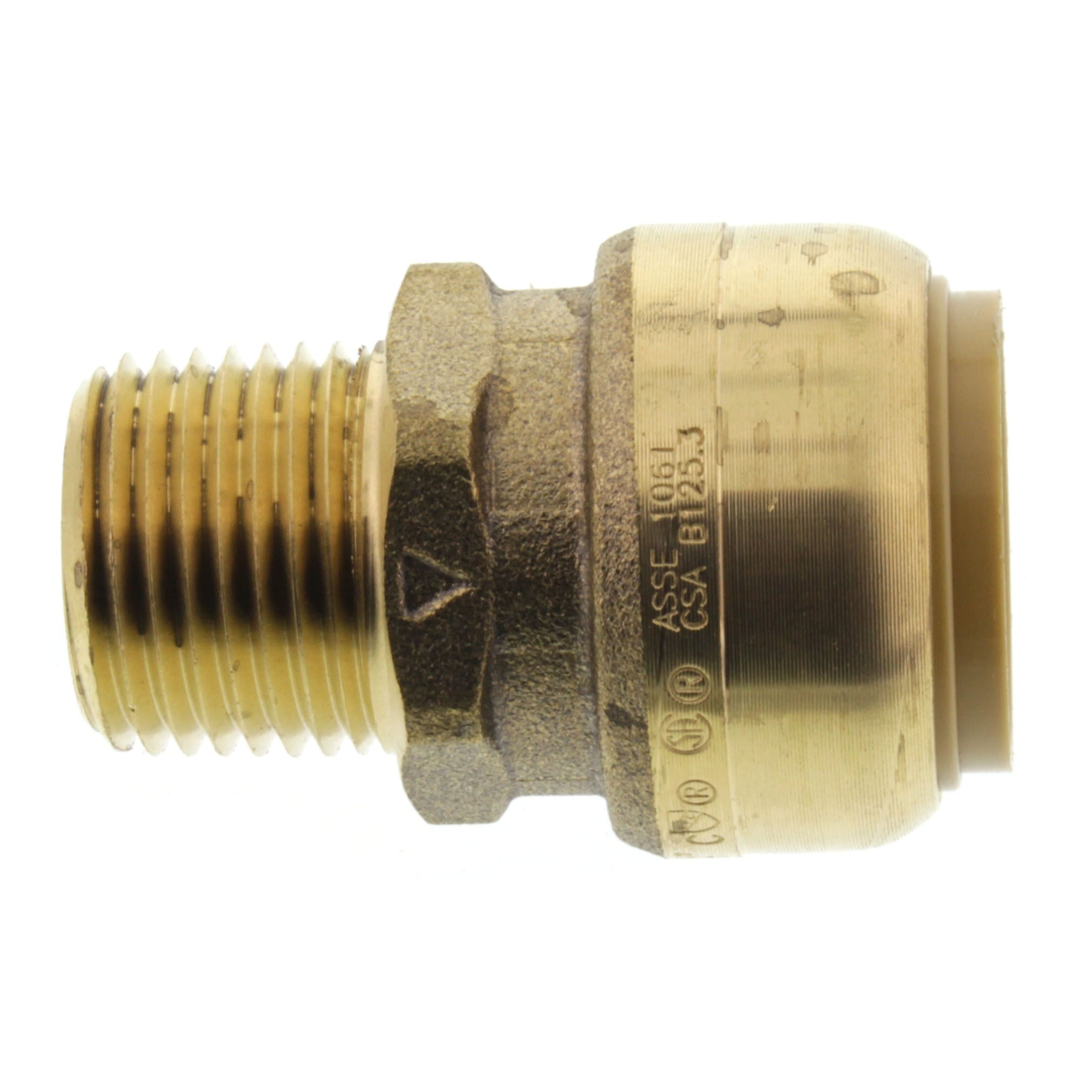

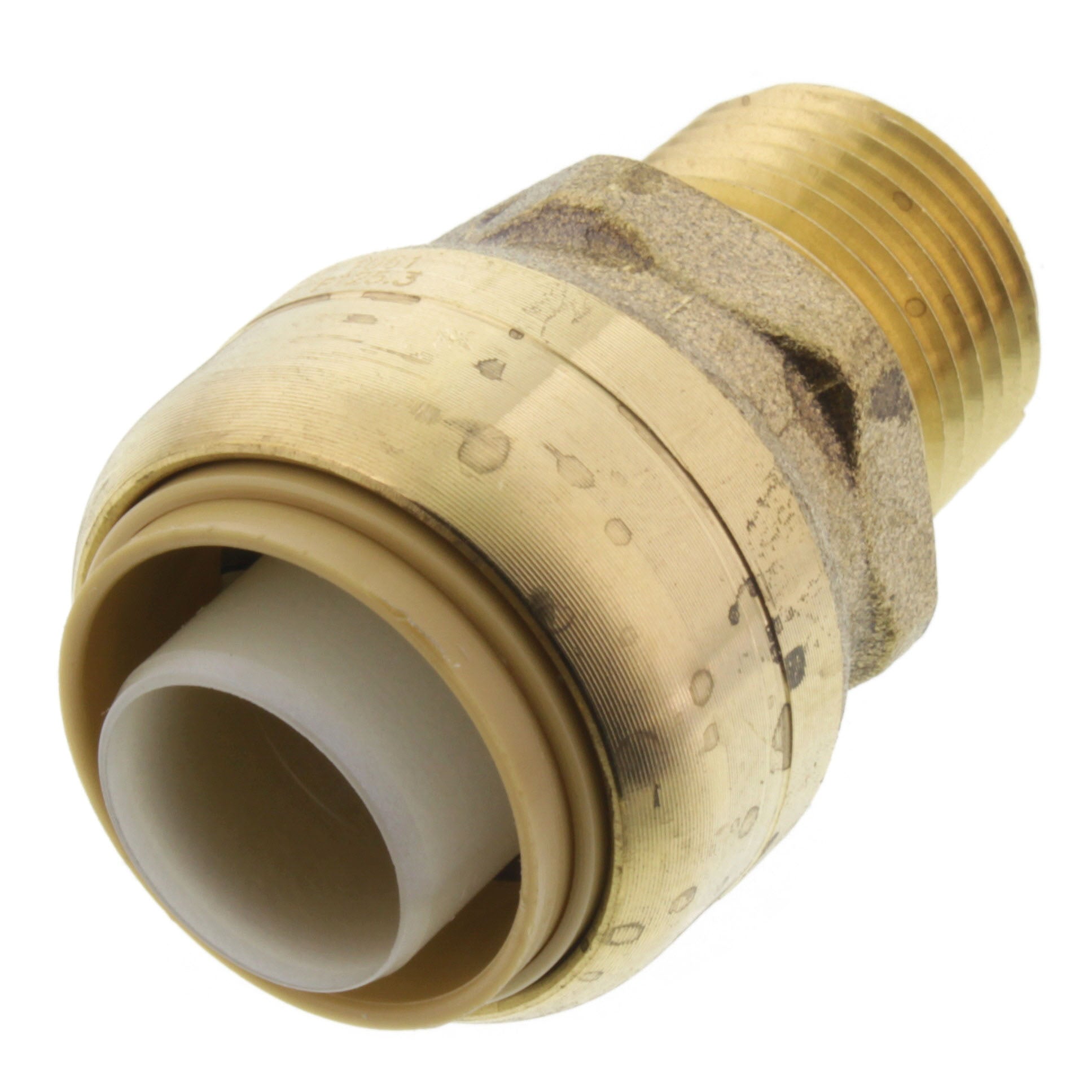

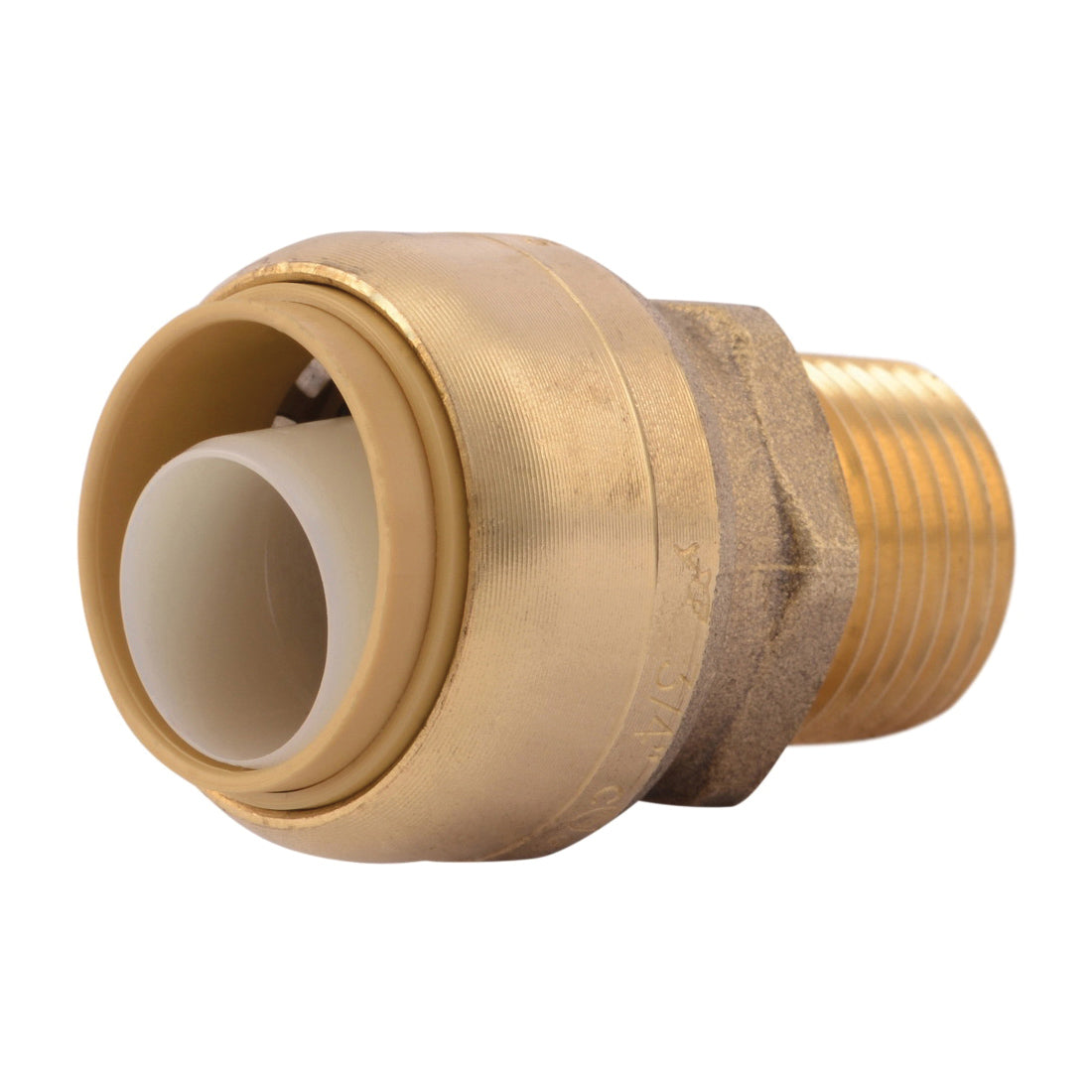

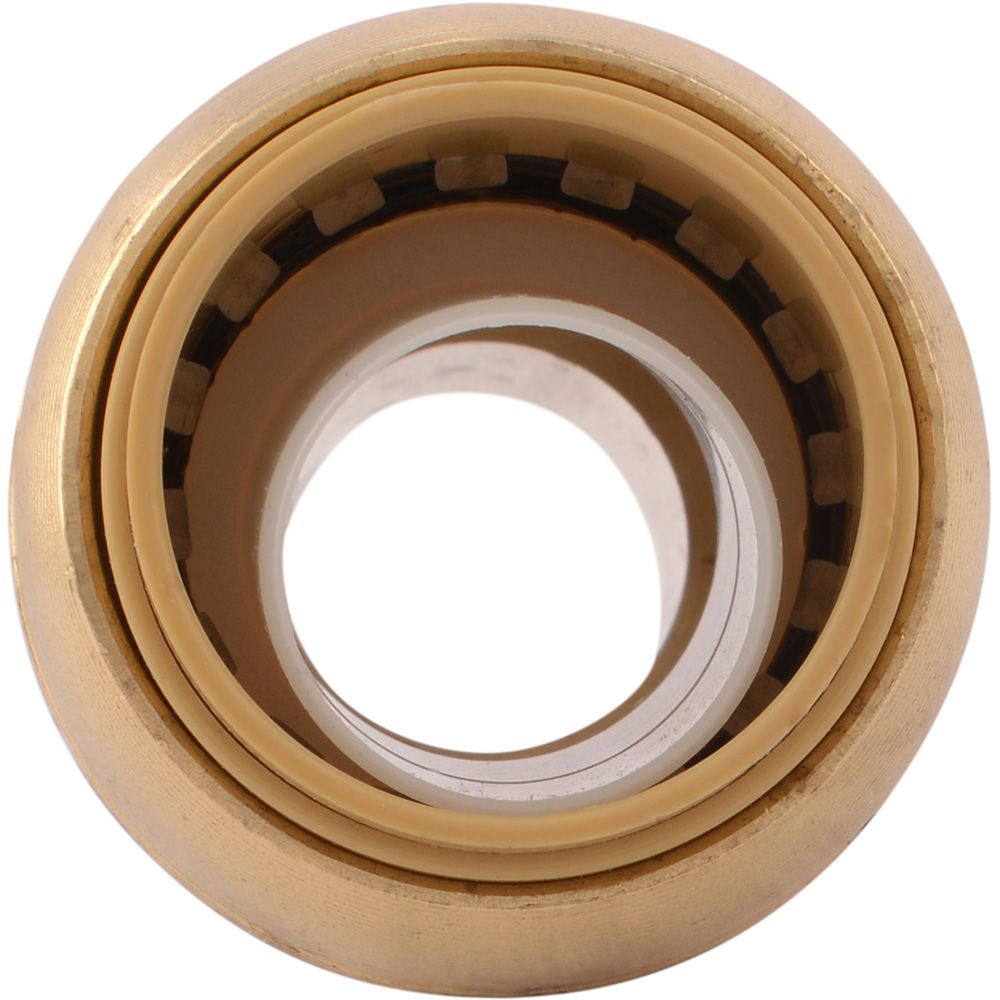

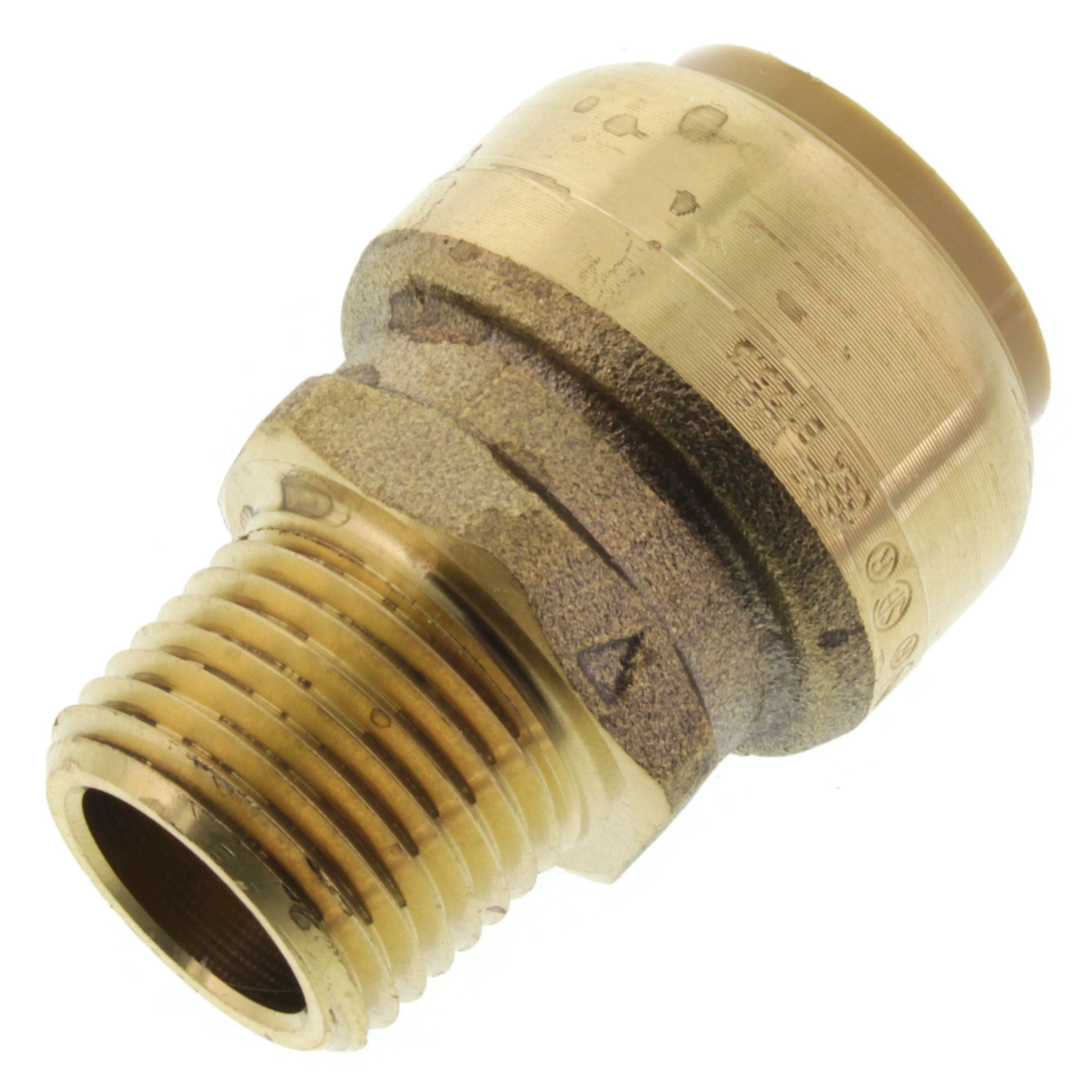

The SHARKBITE U138LF bullnose male connector is designed for potable water and radiant heating applications. This adapter fitting features a push-to-connect end and a male threaded end. It requires no special tools, crimping, glue, or soldering. It can be installed in wet lines and is approved for underground and behind-the-wall applications.
- No special tools, crimping, glue or soldering required
- Can be installed in wet lines
- Approved to be used underground and behind walls without access panels
Product Highlights
The SharkBite U138LF allows for quick and easy transition between CTS pipe to an FNPT threaded connection. Faster install time and ease of use reduces installation errors.
Product Information
Standard Information
-
Brand: SHARKBITE
-
Manufacturer Part Number: U138LF
-
Country of Origin: Australia
Technical Specifications
-
CATALOG NUMBER: U138LF
-
COMMODITY CODE DESCRIPTION Level 5: Push to Connect Tube Fittings
-
CUSTOMER UPC: 69728546518
-
Category: Plumbing & Bath / Kitchen Fixtures
-
Type: Male, Reducing, Bull Nose
-
End Connection: Push-to-Connect x Male Threaded
-
Features/Benefits: No special tools, crimping, glue or soldering required; Can be installed in wet lines; Behind-The-Wall, Approved to be used underground and behind walls without access panels; Lead-Free
-
Manufacturer Name: SharkBite
-
Manufacturer Part Number: U138LF
-
Material: DZR Brass
-
Material Specification: ASTM 84/E119
-
Pressure Rating: 200 PSI
-
Size A: 3/4 Inch
-
Size B: 1/2 Inch
-
Temperature Rating: 200 Deg F
-
UNSPSC Code: 40183109
-
UPC: 697285465183
-
Brand: SHARKBITE
-
Nominal Size: 3/4 x 1/2 in
-
End Style: Push-Fit x MNPT
-
Fitting/Connector Type: Connector
-
Length: 1.9 in
-
Mfg Standards/Approvals: ASTM F876/F877|ASSE 1061|AWWA C904|cUPC Listed|CSA B125.3/B137.5|IAPMO Listed|IPC Listed|NSF/ANSI 372-2010/14/61|UPC Listed
-
Domestic/Import: Import
-
Country of Origin: AU
-
Application: Plumbing, Heating
-
Thread Size: 1/2"
-
Thread Type: Male
-
Max Temp (F): 200
-
Standards Used: NSF
-
Insertion Depth: 1-1/8"
-
Fitting Dimensions: 3/4" x 1/2"
-
Full Certification Listings: UL 263, ASSE 1061, CSA B125.3, NSF/ANSI 372, NSF/ANSI/CAN 61, CAN/ULC S102.2, CAN/ULC S101, UPC, IPC, CUPC
-
Application scenarios: Underground and Behind-The-Wall
