Product Description

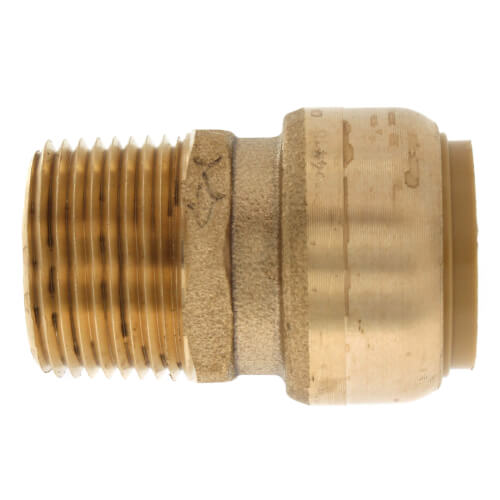

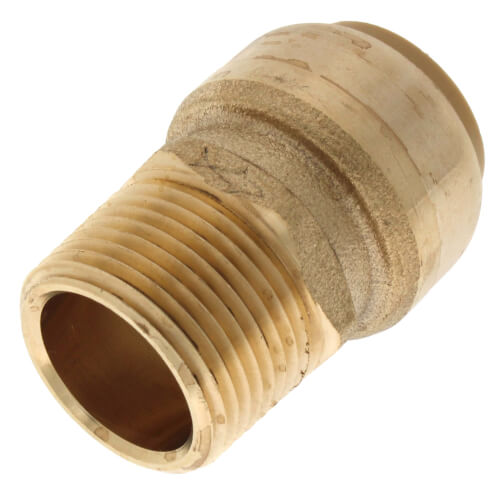

The SharkBite U134LF Brass Male Adapter simplifies the connection process between pipe and an MNPT thread, facilitating a seamless transition without the need for soldering. This fitting is designed for both potable water and hydronic heating applications.
- Lead-free, corrosion-resistant DZR brass construction ensures durability and safety.
- Push-to-connect design allows for quick and easy installation without tools.
- Approved for underground and behind-the-wall installations, enhancing its versatility.
Product Highlights
Utilizing a robust push-fit connection system, this adapter can handle a temperature range from 0 to 200 degrees Fahrenheit and a pressure rating up to 200 PSI. Its compact size and reliable seal are ideal for tight spaces and critical applications. Compatible with PEX, copper, CPVC, and PE-RT pipe.
Technical Specifications
-
Material: DZR Brass
-
Connection Type: MNPT x Push-to-Connect
-
Size: 3/4 Inch
-
Pressure Rating: 200 PSI
-
Temperature Rating: 200 Degrees Fahrenheit
-
Standards: NSF/ANSI 61, 372; ASSE 1061; IAPMO, UPC, IPC
