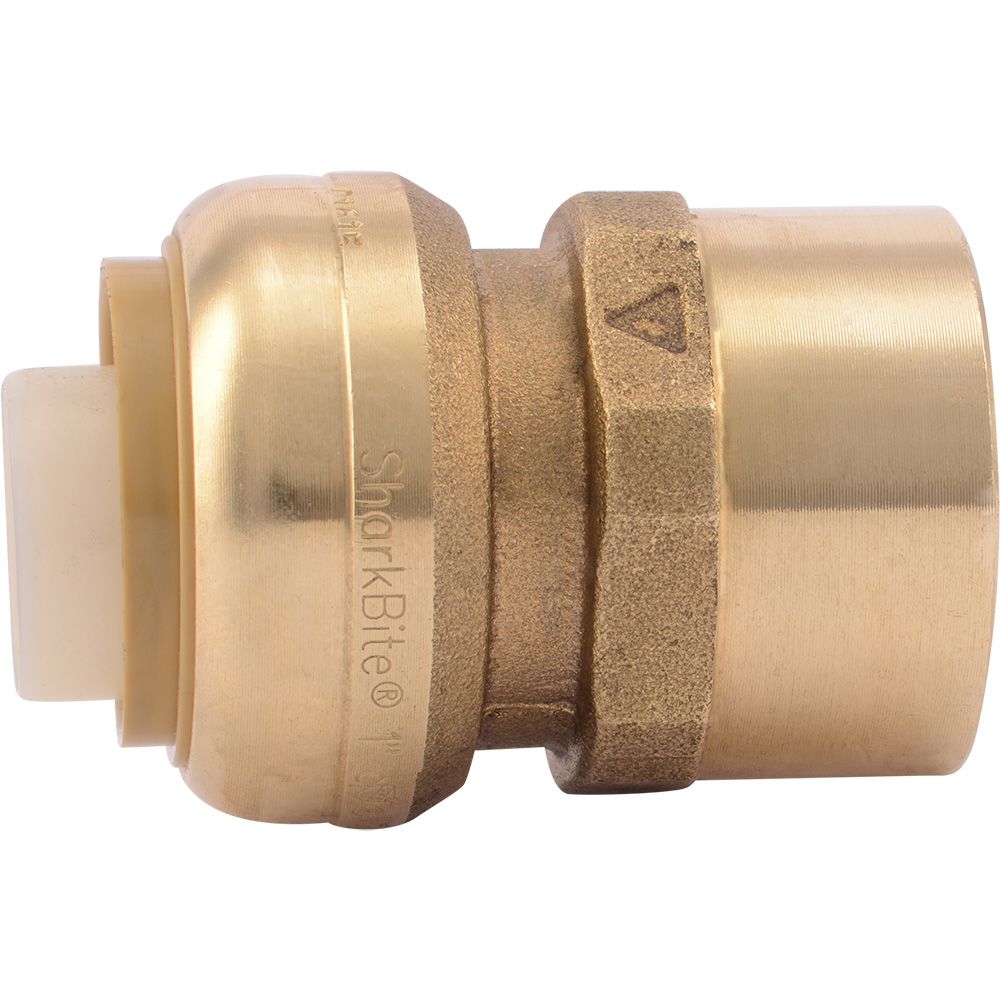

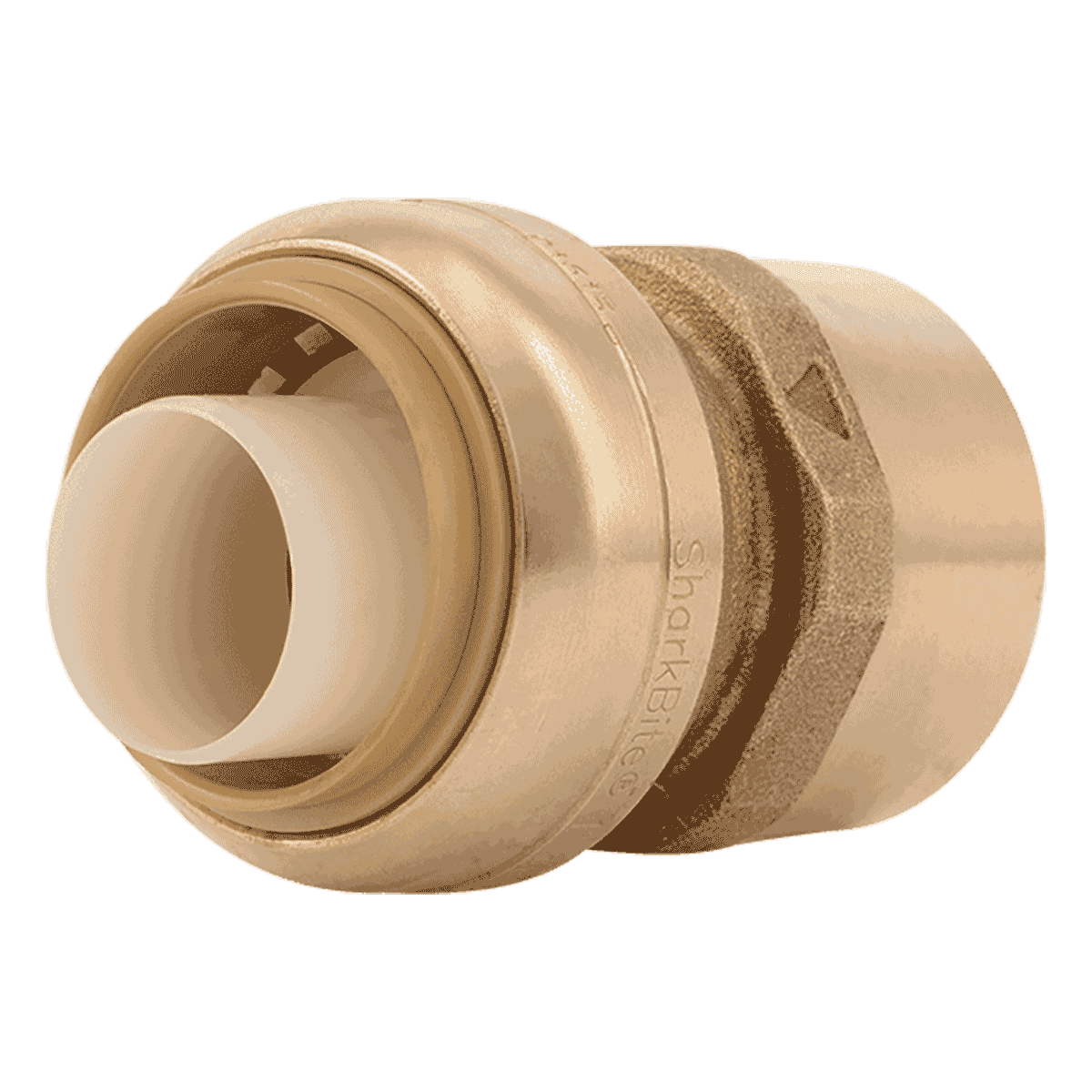

Sharkbite U094LF Female Adapter 1 Inch Push-to-Connect x Female Threaded

Product Description

The SHARKBITE U094LF adapter fitting features a female, straight design with a 1 inch size A and 1 inch size B. Constructed from DZR natural brass with a chrome plated finish, it ensures a secure and reliable connection. Suitable for potable water and hydronic heating water distribution with a pressure rating of 200 PSI and a temperature rating of 200 Deg F.

• Instant Push-Fit Connection for Increased Ease-of-Use
• No Soldering, Clamps, Unions or Glue Required
• Integrated Design Means No Loose Components, Ensures Secure, Reliable Connection

Product Highlights

This lead-free adapter is compact and robust, meeting standards ASSE 1061, NSF/ANSI 14/61/372, IAPMO, CUPC, and IPC.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: U094LF
• Country of Origin: Import

Technical Specifications

• Type: Female, Straight
• Size A: 1 Inch
• Size B: 1 Inch
• End Connection: Push-to-Connect x Female Threaded
• Material: DZR Natural Brass (Body), 316 Stainless Steel (Grab Ring), EPDM Rubber (O Ring), Polysulfone (Tube support liner)
• Finish: Chrome Plated
• Pressure Rating: 200 PSI
• Temperature Rating: 200 Deg F
• Application: Potable Water and Hydronic Heating Water Distribution
• Applicable Standard: ASSE 1061, NSF/ANSI 14/61/372, IAPMO, CUPC, IPC
• Lead-Free: Yes
• Insertion Depth: 1.313 Inch
• Overall Length: 2.17 Inch
• Fitting Type: Straight Female Connector
• Size: 1 in
• Connection Type: Push-Fit x FNPT
• Fitting/Connector Type: Connector
• Nominal Size: 1 in
• Connection: FNPT
• Maximum Temperature: 200 deg F
• Length: 2.17 in
• Compatible Pipe Material: PEX, CPVC, PE-RT, SDR-9 HDPE, Copper
• End Style: Push-Fit x FNPT
• Type of Material: Brass
• Pipe Size: 1" x 1" FNPT
• Inlet Connection: 1" FPT
• Max Pressure (Psi): 200
• Outlet Connection: 1" FPT
• Push-In Size: 1" ID 1-1/8" OD
• Seal / O-Ring Material: EPDM
• Shape: Straight
• Color / Finish: Brass
• Sub-Type: Female Adapter
• Product Certification Standard: NSF/ANSI 61
• Standards: ANSI/NSF-61, ASSE 1061 / NSF 87, CPUC Listed, IAPMO, IGC 188, IPC, UPC
• Tube Size: 1 in
• For Tube OD: 1 in
• Temp. Range: 0 Degrees to 200 Degrees F
• Fitting Shape: Adapter
• Max. Pressure: 200 psi
• Gasket Material: EPDM
• Special Features: Connects Copper, Pex and CPVC in any Combination without the Use of Soldering, Unions or Glue
• Fitting Pipe Size: 1 in
• End Connection Type: Push-to-Connect, Threaded
• Fitting Thread Size: 1
• Pipe Size (Fittings): 1"
• Fitting Body Material: Brass
• Release Ring Material: EPDM
• Resistance Properties: Corrosion-Resistant
• Tube Fitting Material: DZR Brass
• Specific Fitting Shape: Adapter
• Fitting Connection Type: Push-Fit x FNPT
• Basic Pipe Fitting Shape: Adapter
• Compatible Tube Material: Copper, CPVC, HDPE, PEX, Polyethylene
• Fitting Side B Pipe Size: 1 in
• Pipe Size - Pipe Fitting: 1 in
• For Tube Outside Diameter: 1 in
• Maximum Operating Pressure: 200 psi
• Basic Pipe Fitting Material: Metal
• Specific Pipe Fitting Shape: Adapter
• Pipe Fitting Connection Type: Push-To-Connect
• Maximum Operating Temperature: 200 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: Push-to-Connect
• Fitting Side B Connection Type: FNPT
• Fitting Side A Tube Outer Diameter: 1 in
• Includes Pre-Applied Thread Sealant: No
