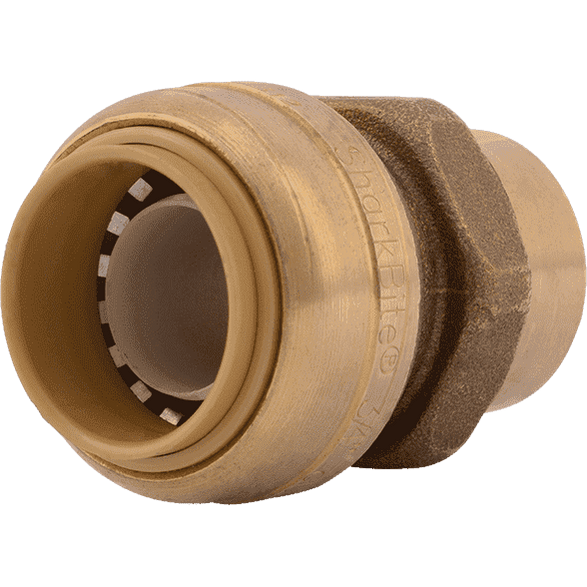

Sharkbite u092lf 3/4 Inches X 1/2 Inches Brass Push-to-connect Female Adapter Fnpt

Product Description

The SharkBite U092LF is a 3/4 inches x 1/2 inches bullnose brass push-to-connect female adapter designed for fast, reliable transitions between CTS pipe and female NPT threaded connections. This fitting accepts PEX, copper, CPVC, PE-RT, and HDPE pipe on the push-fit end and connects to a 1/2 inches FNPT threaded fitting on the other end. It is built for plumbing and heating applications where speed and reliability matter. The push-to-connect design requires no special tools, no crimping, no glue, and no soldering. Plumbers and HVAC technicians can complete connections in seconds, even in tight or hard-to-reach spaces. The bullnose profile makes it easier to insert pipe without catching or dragging, which helps reduce installation errors during rough-in and repair work. The fitting is rated for up to 200 psi and 200 degrees Fahrenheit, making it suitable for both domestic water supply and hydronic heating systems. It meets NSF standards, confirming it is safe for potable water use. The U092LF is approved for underground and behind-the-wall installations with no access panel required. When burying underground, wrapping the fitting is required. The fitting can be installed in wet lines, which is a major advantage during repairs on live systems where draining is not practical. Removal is clean and straightforward using a SharkBite Disconnect Clip or Disconnect Tongs, both sold separately. The insertion depth is 1-1/8 inches, and the fitting carries a 25-year warranty. This adapter is a trusted choice for residential and light commercial plumbing, radiant heating, and water distribution applications.

• Push-to-connect design requires no tools, soldering, crimping, or glue for fast installation
• Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe on CTS outside diameter
• Rated for 200 psi and 200 degrees Fahrenheit, NSF certified, approved for underground and in-wall use

Product Highlights

The SharkBite U092LF delivers a code-compliant, tool-free transition from CTS pipe to a 1/2 inches female NPT thread, saving time on plumbing and heating installations. Its 25-year warranty and broad pipe compatibility make it a dependable choice for professionals working across a range of water supply and heating system applications.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: U092LF

Technical Specifications

• Push-Fit Pipe Size: 3/4 inches
• Thread Size: 1/2 inches
• Thread Type: Female NPT (FNPT)
• Material: Brass
• Max Pressure: 200 PSI
• Max Temperature: 200 degrees Fahrenheit
• Insertion Depth: 1-1/8 inches
• Fitting System: Push Fit
• Tubing Compatibility: OD Controlled Copper, PEX, CPVC, PE-RT, HDPE
• Standards Met: NSF
• Application: Plumbing, Heating
• Warranty: 25 Year
