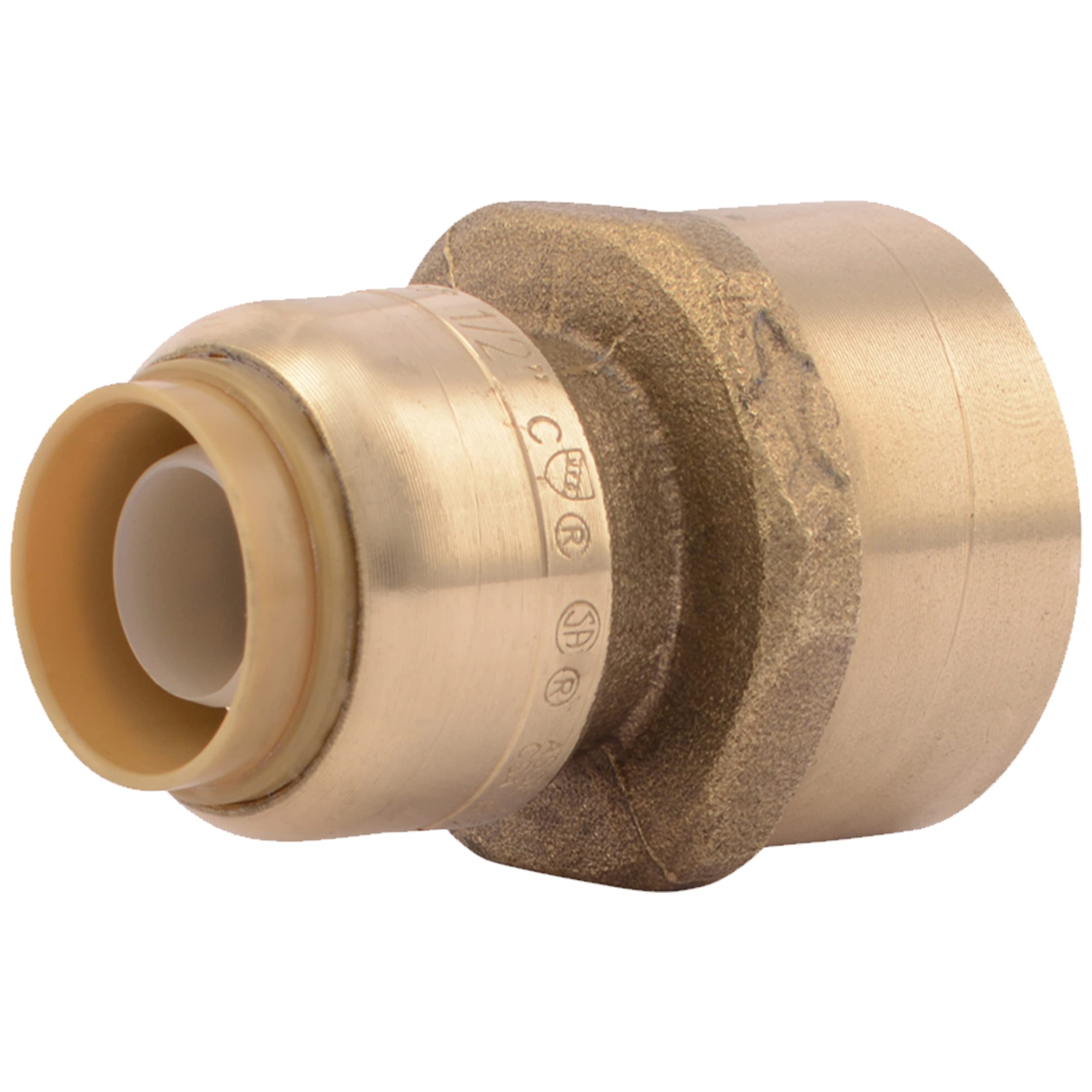

Sharkbite U068LF Reducing Female Connector 1/2 x 3/4 Inch

Product Description

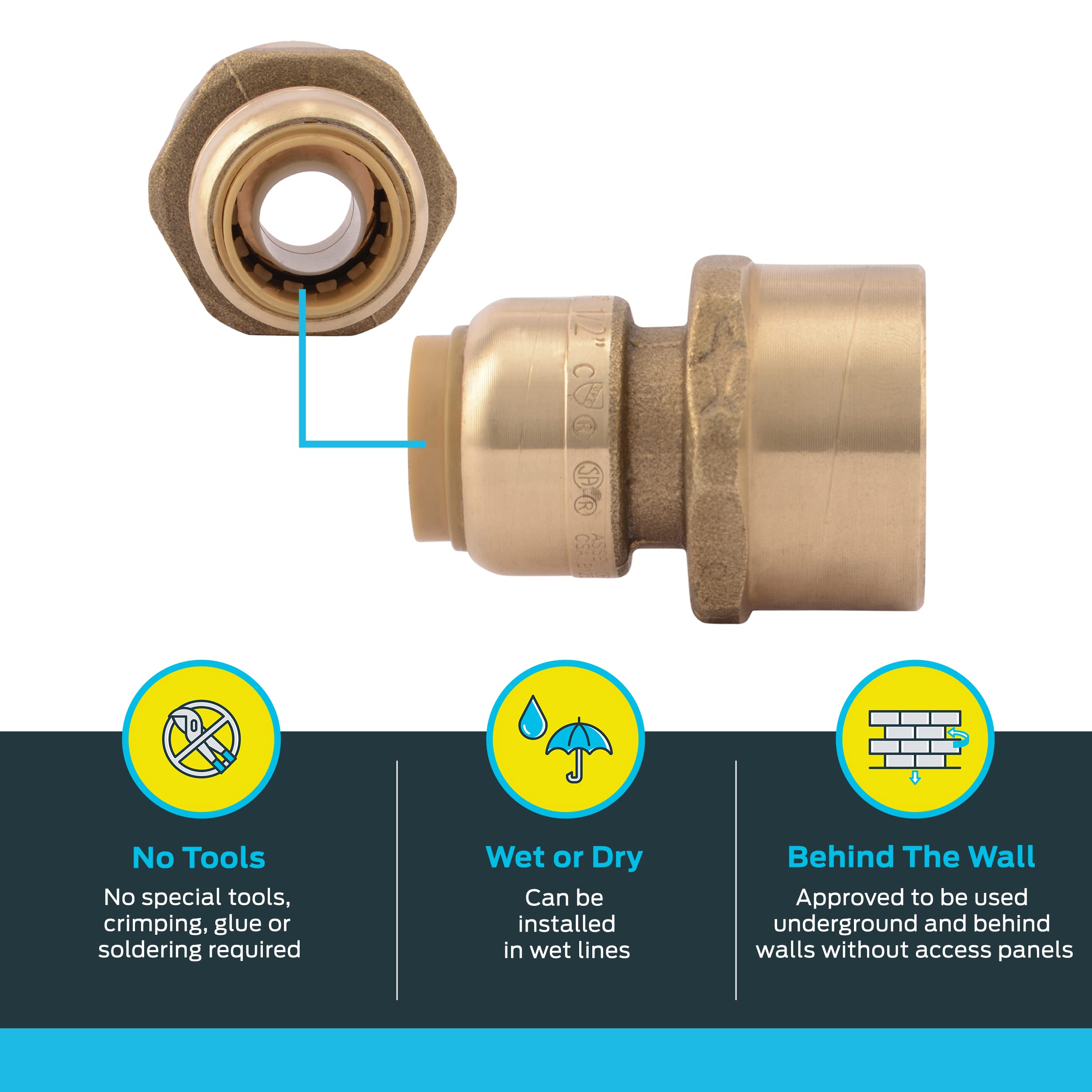

The SHARKBITE U068LF reducing female connector transitions between CTS pipe to an FNPT threaded connection. The push-to-connect design allows for quick and easy installation, especially in tight spaces. It requires no special tools, crimping, glue, or soldering. It is lead-free and can be installed in wet lines and is approved for underground applications.

• Innovative Push-To-Connect Design
• Ideal for Working in Tight Spaces
• No Special Tools Required

Product Highlights

The SharkBite U068LF makes transitioning pipe sizes easy with its push-to-connect design. It's suitable for potable water and radiant heating applications.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: U068LF
• Country of Origin: Import

Technical Specifications

• Type: Reducing, Female
• Size A: 1/2 Inch
• Size B: 3/4 Inch
• End Connection: Push-Fit x Female Threaded
• Material: Natural Dezincification Resistant Brass
• Material Specification: ASTM E84/E119
• Finish: Chrome Plated
• Pressure Rating: 200 PSI
• Temperature Rating: 200 Deg F
• Application: Underground
• Applicable Standard: UL 263, CSA B125.3, CAN/ULC S102.2/S101, UPC, IPC, cUPC, IAPMO, ASSE 1061, NSF/ANSI 14/61/372
• Lead-Free: Yes
• Includes: EPDM O-Ring, Stainless Steel Grab Ring, Polysulfone Tube Support Liner
• Fitting System Compatibility: Push Fit
• Max Temp (F): 200°F
• Max Pressure (PSI): 200
• Tubing Compatibility: PEX, OD Controlled Copper, CPVC
• Fitting Type: Connector
• Connection Type: Tube|FNPT
• Dimensions: 1-3/4 in L
