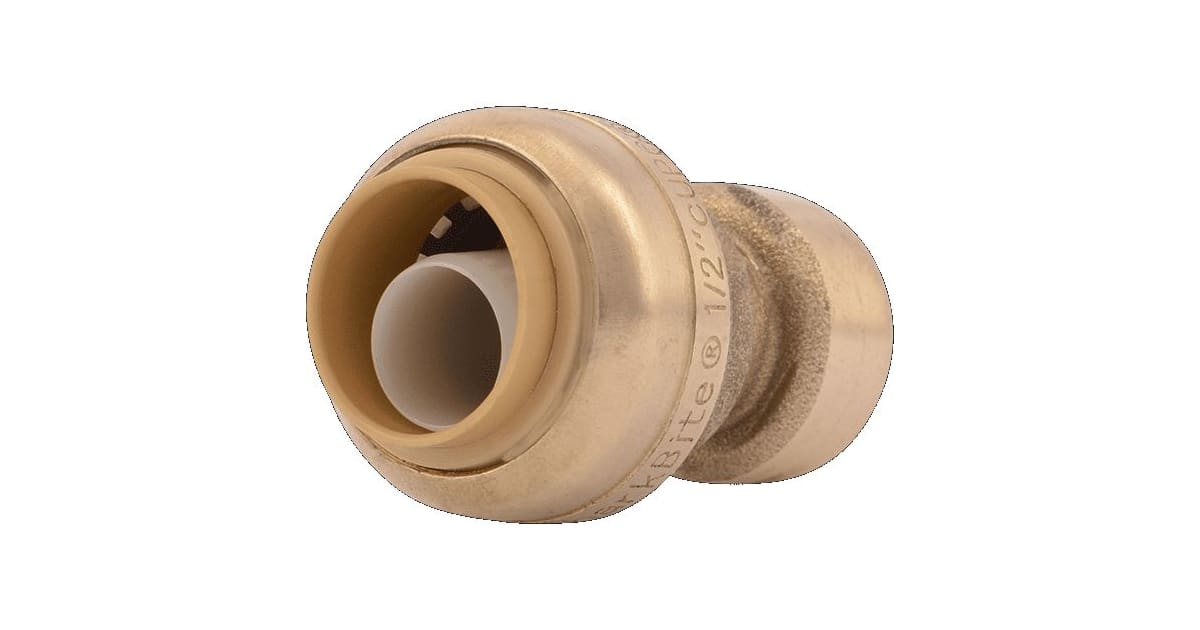

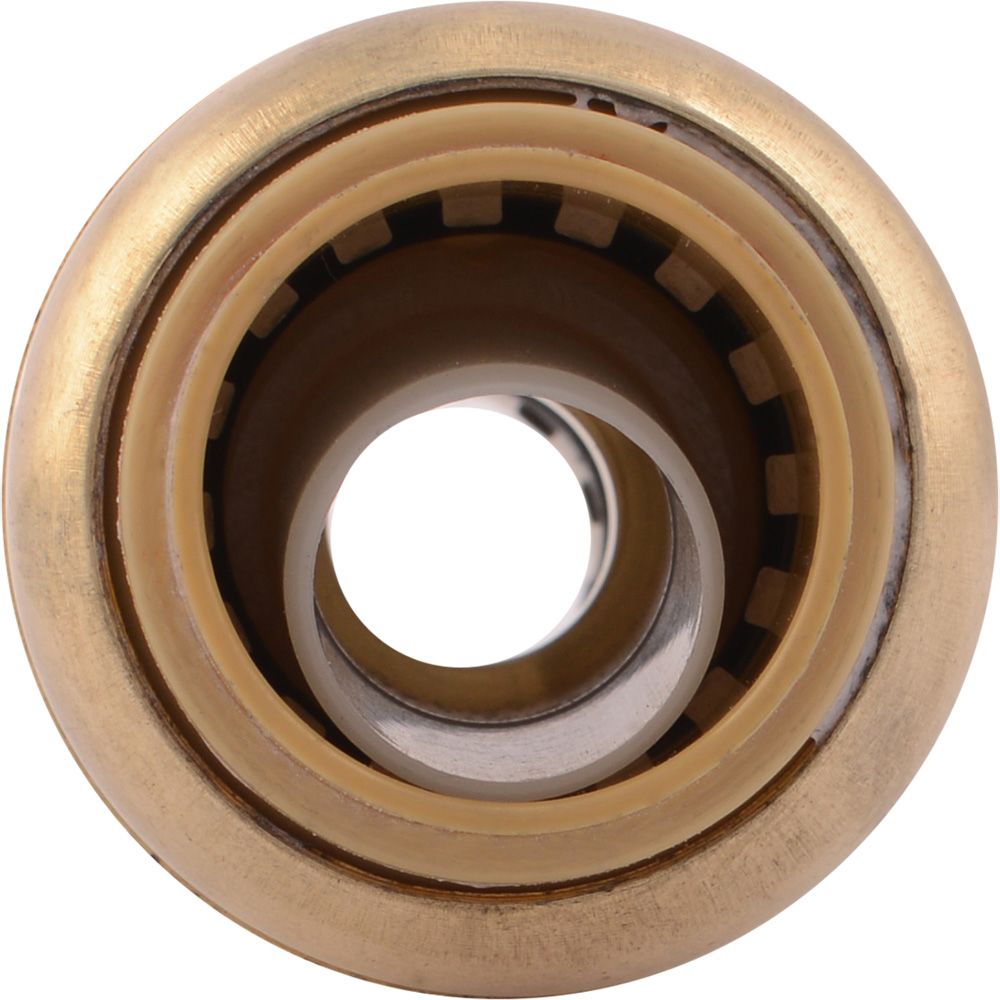

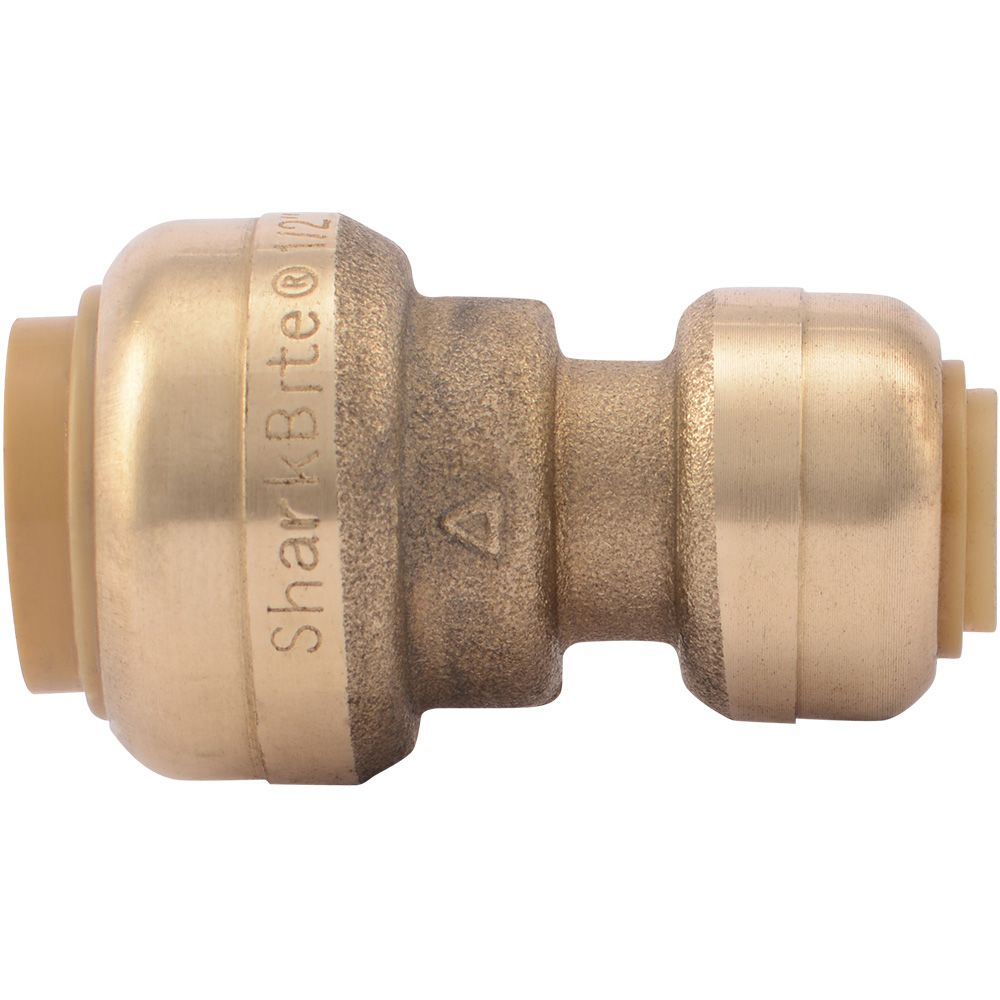

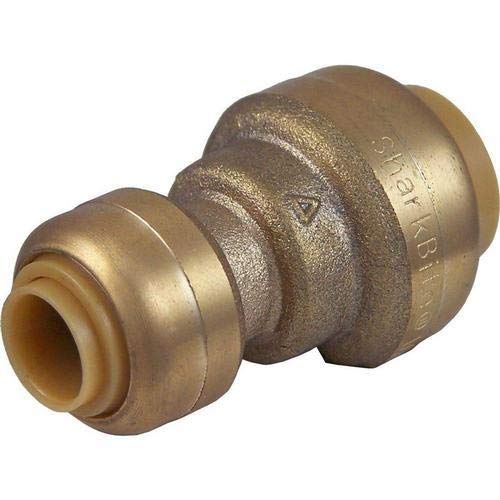

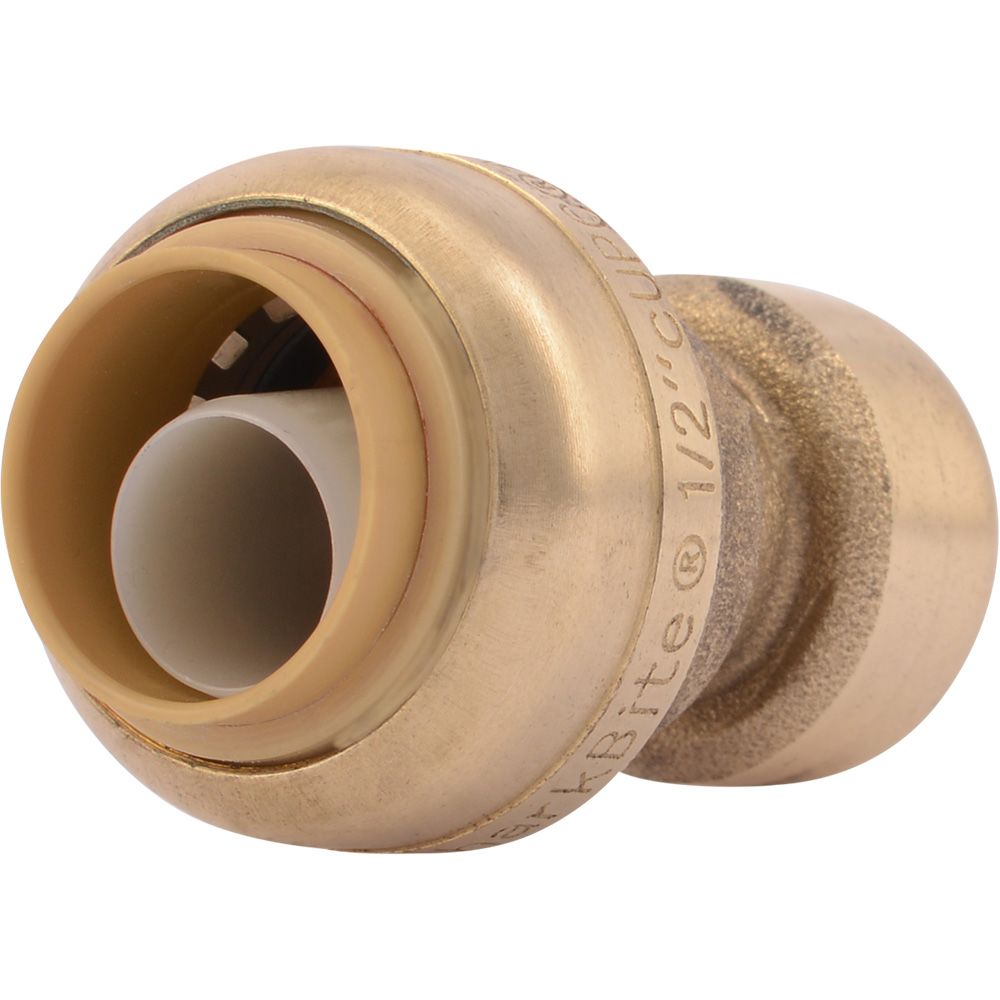

Sharkbite U050LF Reducing Coupling (1/2 in x 1/4 in, 3/8 in OD)

Product Description

The SharkBite U050LF is a lead-free brass push-to-connect reducing coupling that joins 1/2 in and 1/4 in tubing (3/8 in OD). It provides a tool-free push-fit connection using an EPDM O-ring, stainless-steel grab ring and polysulfone tube support liner to form a sealed joint. The fitting is suitable for potable water and hydronic heating, compatible with PEX, copper, CPVC, PE-RT and HDPE, and is rated to 200 psi and 200 deg F.

• Push-to-connect reducing coupling for tool-free connections between 1/2 in and 1/4 in tubing (3/8 in OD).
• Lead-free DZR brass construction with EPDM O-ring, stainless-steel grab ring and polysulfone tube support liner; demountable with disconnect tool.
• Rated to 200 psi and 200 deg F; certified for potable water and suitable for hydronic heating, underground and behind-wall installations.

Product Highlights

Lead-free DZR brass push-fit reducing coupling (1/2 in x 1/4 in, 3/8 in OD); rated 200 psi, 200 deg F; compatible with PEX, copper, CPVC and PE-RT.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: U050LF
• Country of Origin: Import

Technical Specifications

• Brand: SharkBite
• Manufacturer: Reliance Worldwide Corporation
• MPN: U050LF
• Connector Type: Push-to-connect reducing coupling
• Nominal Size: 1/2 in x 1/4 in
• Pipe Outer Diameter: 3/8 in OD
• Material: Lead-free dezincification resistant (DZR) brass
• Lead Free: Yes
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
• Compatible Pipe Types: PEX, copper, CPVC, PE-RT, HDPE
• Seal Material: EPDM O-ring
• Grab Ring Material: Stainless steel
• Tube Support Liner: Polysulfone
• Demount Method: Disconnect clip or disconnect tongs (sold separately)
• Pipe Insertion Depth (1/4 in): 0.813 in
• End Style: Push-fit
• Intended Use: Potable water and hydronic heating (including underground and behind-wall installations)
• Certifications: NSF/ANSI 61, NSF/ANSI 14, NSF 372, ASSE 1061
• Finish: Natural brass / Polished chrome
• Weight: 0.11 lb
• UPC: 697285002517
