Sharkbite U004LFA 1/4 X 1/4 Push Fit Coupling Lead Free 12-pack

Product Description

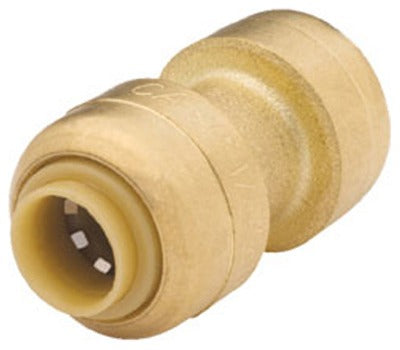

The SHARKBITE U004LFA is a 1/4-inch x 1/4-inch lead-free push fit coupling constructed from DZR brass. It connects copper tubing (CTS), CPVC, and PEX pipe without soldering, crimping, or clamps. An integral tube liner is included for use with PEX. The fitting is rated to 200 psi and 200 degrees F, making it suitable for both potable water and hydronic distribution systems. Licensed plumbers and journeymen install this fitting on residential and light commercial water distribution lines where a fast, code-compliant connection is required. Sold in a pack of 12 individually bagged fittings.

The U004LFA is designed for use in new construction and retrofit plumbing applications where copper CTS, CPVC, or PEX tubing is present. Its push-to-connect design eliminates the need for a torch or specialty crimp tool, which makes it practical in tight spaces or on systems where open flame is restricted. The fitting is certified for underground applications as a manufactured joint and does not require an access panel once installed. It is appropriate for both potable water and closed-loop hydronic systems in residential and light commercial settings.

Key Features

• Push-to-connect design works with copper CTS, CPVC, and PEX without soldering or crimping
• Integral tube liner included for PEX compatibility
• DZR brass construction for corrosion resistance in potable and hydronic water service
• Rated to 200 psi and 200 degrees F
• Certified for underground installation as a manufactured joint without access panel requirement
• Lead free compliant per Federal Law 111-380
• Certified to ASSE 1061 and NSF 61 standards; listed with IAPMO; meets UPC, IPC, and CUPC requirements

Compatibility

Compatible with 1/4-inch copper tubing CTS, CPVC, and PEX pipe with the included integral tube liner. Certified for use on potable water and hydronic water distribution systems.

Installation Notes

Installation is performed by a licensed plumber in accordance with the applicable IPC or UPC code for the jurisdiction. Shut off water supply and relieve system pressure before cutting into any existing line. Ensure pipe ends are cut square and deburred before insertion into the fitting to achieve a proper seal. For PEX connections, confirm the integral tube liner is seated correctly inside the pipe end prior to pushing into the fitting body.
