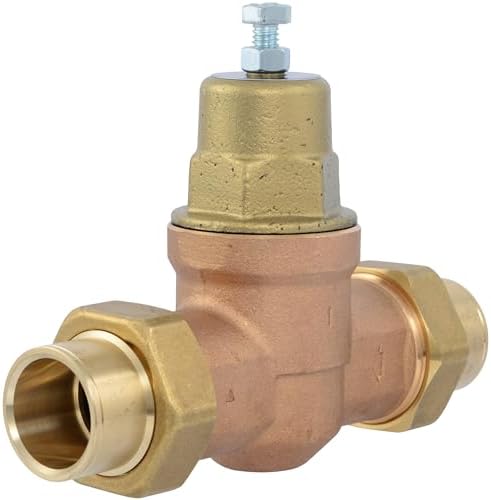

Sharkbite PVA20M-DUSW-60 EB45 Pressure Regulating Valve 60 PSI (1 Inch)

Product Description

The SHARKBITE PVA20M-DUSW-60 EB45 Direct Pressure Regulating Valve (PRV) regulates downstream pressure in commercial and residential water applications. This inline 1 in. sweat double union pressure regulating valve features a tamper-resistant design to lock in the desired system pressure. The water pressure reducer valve is rated to 60 PSI and adjustable between 10 to 70 PSI.

• Features a half cartridge design which offers direct access to the pressure adjusting screw.
• Made from brass, stainless steel and durable metallic components for long-lasting performance.
• Innovative design for quick, tool-free installation.

Product Highlights

This pressure regulating valve is compliant with NSF/ANSI 372 for safe use in potable water systems and is suited for cold or hot water service up to 180 degrees F.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: PVA20M-DUSW-60
• Country of Origin: USA

Technical Specifications

• Material: Brass
• Brand: Cash Acme
• Exterior Finish: Brass
• Inlet Connection Size: 1 Inches
• Inlet Connection Type: Sweat
• Outlet Connection Type: Sweat
• Maximum Operating Pressure: 60 Pound per Square Inch
• Number of Ports: 2
• Outlet Connection Size: 1 Inches
• Specification Met: NSF/ANSI 372
• Manufacturer: Reliance Worldwide Corporation
• Part Number: PVA20M-DUSW-60
• Item model number: PVA20M-DUSW-60
• Size: 1 in.
• Item Package Quantity: 1
• Number Of Pieces: 1
• Included Components: EB-45 Sweat Double Union
• Batteries Required?: No
