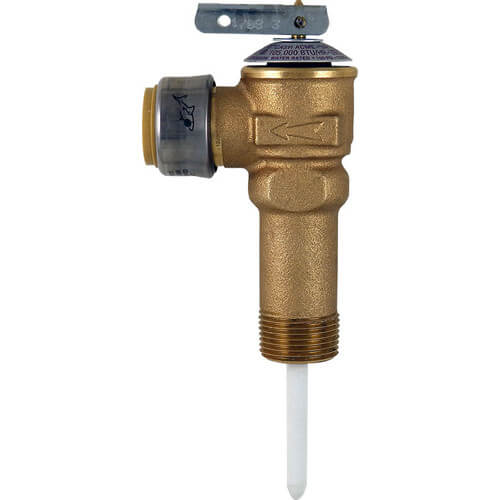

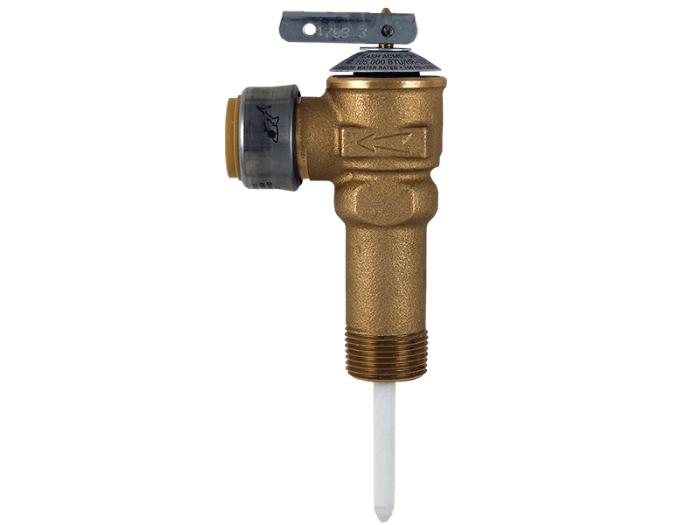

SharkBite NCLX-5LX Domestic T&P Relief Valve

Product Description

The SharkBite NCLX-5LX is a three-quarter inch domestic temperature and pressure relief valve. This automatic valve includes a push-fit connection designed for quick installation on copper and CPVC drain lines.

• Features a thermal element coating for protection against mineral deposits and corrosion.
• Reseats automatically after releasing pressure or temperature, suitable for domestic water heaters.
• Meets standards set by CSA and the National Board for safety and reliability.

Product Highlights

This valve is built to ensure safety and convenience in residential plumbing systems.

Product Information

Standard Information

• Connection Type: Push-Fit x Push-Fit
• Insertion Depth: one and one-eighth inches

Technical Specifications

• Pressure Set Point: 150 psi
• Max Temp (F): 210 degrees Fahrenheit
• ASME Rating (BTU/HR): 500000
• CSA Rating (BTU/HR): 105000
• Approvals & Listings: CSA Listed to ANSI Z21.22/CSA 4.4
