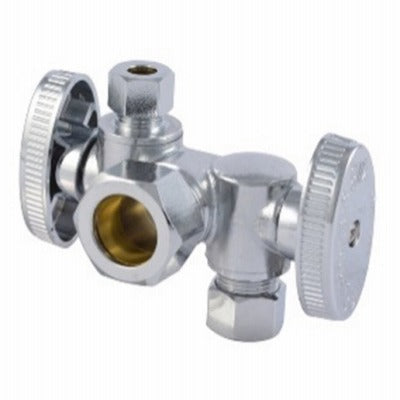

Sharkbite COMPDS123814Z Dual Shut-off Brass Ball Valve

Product Description

The SharkBite COMPDS123814Z is a full-port brass ball valve with dual compression outlets designed to supply water to two fixtures from a single inline connection. It features a 1/2-inch compression inlet, a 3/8-inch OD compression outlet, and a 1/4-inch OD compression outlet. The quarter-turn ball valve mechanism provides a fast, reliable shutoff with minimal effort and no ongoing maintenance. Constructed from brass, this valve is built to withstand typical residential water supply pressures. Plumbers and qualified DIYers install this valve at the supply stop location to serve appliances such as ice makers and fixtures such as toilets and faucets from one point of control.

This valve is suited for residential plumbing applications where a single supply line must branch to two fixtures simultaneously. Common install scenarios include under-sink setups supplying both a faucet and an ice maker, or any location requiring dual-outlet shutoff capability. Connections are made using the included compression nut and ferrule on each port, which are tightened with a wrench. No soldering or special tooling is required beyond standard hand tools. The full-port design maintains good flow through the valve body.

Key Features

• Full-port brass ball valve for unrestricted flow
• Dual compression outlets: 3/8-inch OD and 1/4-inch OD for simultaneous fixture supply
• 1/2-inch compression inlet connects to existing supply line
• Quarter-turn shutoff for fast, maintenance-free operation
• Compression fitting design requires no soldering
• Compatible with copper pipe

Compatibility

Compatible with copper pipe. Designed for residential water supply applications including ice makers, toilets, and faucets. Sold in a package quantity of 6 units.

Installation Notes

Installation is typically performed by a licensed plumber or experienced tradesperson. Shut off the main water supply and relieve line pressure before removing any existing valve or fitting. Attach the valve to the supply pipe using the compression nut and ferrule, tightening with a wrench — do not overtighten, as brass fittings can be damaged. Connect supply lines to the outlet ports, then restore water pressure and inspect all connections for leaks before returning the system to service.
