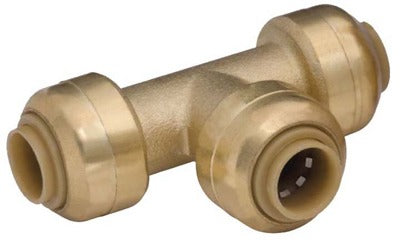

Sharkbite/cash Acme U358LFA Push Fit Tee 1/4 in Lead Free

Product Description

The SHARKBITE/CASH ACME U358LFA is a 1/4-inch x 1/4-inch x 1/4-inch lead free push fit tee designed for fast, tool-free connections in potable and hydronic water distribution systems. Constructed from DZR brass, this fitting delivers reliable performance rated to 200 PSI and 200 degrees F. The push fit design accepts copper tube size, CPVC, and PEX tubing, with an integral tube liner included for PEX and CPVC applications. Licensed plumbers and pipefitters install this fitting in both residential and light commercial plumbing applications where quick, code-compliant connections are required.

The U358LFA is suited for use in potable water supply lines, hydronic heating distribution, and underground installations. Because it qualifies as a manufactured joint, no access panel is required when buried or concealed. It is compatible with copper tube size, CPVC, and PEX pipe in 1/4-inch diameter. The fitting ships bagged in packages of 6 units, making it practical for service trucks and job-site restocking. This tee is a direct option for plumbing contractors handling tight-diameter branch connections in residential or commercial systems.

Key Features

• Push fit connection — no soldering, crimping, or special tools required
• DZR brass construction for corrosion resistance in water service
• Rated to 200 PSI and 200 degrees F
• Integral tube liner included for PEX and CPVC compatibility
• Certified for underground use as a manufactured joint without access panel requirement
• Lead free compliant per Federal Law 111-380

Compatibility

Compatible with copper tube size, CPVC, and PEX tubing in 1/4-inch diameter. Certified for use on potable and hydronic water distribution systems. Meets UPC, IPC, and CUPC requirements. Listed with IAPMO and design certified to ASSE 1061 and NSF 61 standards.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable IPC or UPC code requirements. Shut off the water supply and relieve system pressure before making or breaking any connections. Ensure tubing ends are cut square, deburred, and fully inserted to the fitting stop line before the connection is made. For PEX and CPVC, confirm the integral tube liner is properly seated inside the tubing before pushing the fitting home.
