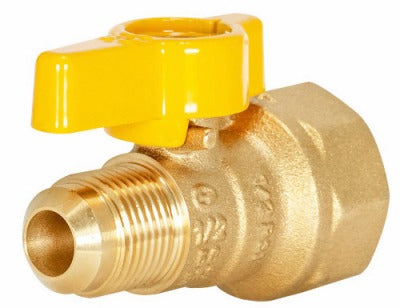

Sharkbite/cash Acme 60001B Brass Gas Ball Valve 3/8 Fl X 1/2 Fip

Product Description

The SHARKBITE/CASH ACME 60001B is a straight-pattern brass gas ball valve designed for safe use with liquified petroleum gas (LP gas) and air mixtures at pressures up to 175 psi. The valve features an all-brass body for a strong, durable connection and a straightforward in-line configuration that connects two pipes running in the same direction. The 3/8 inch flare inlet and 1/2 inch female iron pipe (FIP) outlet make it a direct-fit solution for residential and light commercial gas piping applications. Licensed plumbers and gas fitters are the primary installers of this valve.

This valve is suited for LP gas supply lines where a reliable shut-off and pressure rating of 175 psi is required. The in-line straight orientation simplifies installation in tight runs where a quarter-turn ball valve provides a positive open/close indication. It is packaged in quantities of 6 units per package, making it practical for contractors stocking common gas valve configurations on the truck or in the shop.

Key Features

• Rated for liquified petroleum gas, LP gas, and air mixtures up to 175 psi
• All-brass construction for corrosion resistance and long service life in gas piping systems
• 3/8 inch flare inlet by 1/2 inch FIP outlet straight in-line configuration
• Ball valve design provides positive quarter-turn open/close operation
• Packaged 6 units per package for contractor convenience

Compatibility

Designed as an OEM-style replacement or new-installation gas ball valve for residential and light commercial LP gas piping systems using 3/8 inch flare and 1/2 inch FIP connections.

Installation Notes

Installation must be performed by a licensed plumber or qualified gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply at the meter or main service valve and verify zero pressure before disassembling any existing piping. Apply listed thread sealant compatible with LP gas on all FIP connections. Flare connections require properly flared tubing ends; inspect flares for cracks or deformation before assembly and never reuse damaged flares.
