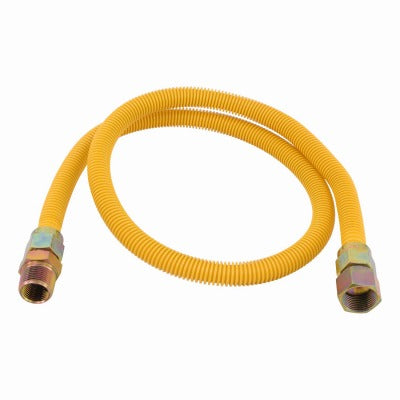

Sharkbite/cash Acme 30YE55V05448B Gas Connector 48 Inch

Product Description

The SHARKBITE/CASH ACME 30YE55V05448B is a 5/8 inch OD coated stainless steel gas connector measuring 48 inches in length. It features 3/4 inch FIP inlet and 1/2 inch FIP outlet end fittings, with the 1/2 inch FIP end tapped for an optional 3/8 inch FIP connection. The connector is equipped with an ArmorBoost excess flow valve, which provides an added layer of protection by automatically restricting gas flow in the event of a line rupture or major leak. Plumbers and gas fitters install this type of connector to link residential or light-commercial gas appliances to supply lines.

This connector is suited for use with common household gas appliances such as ranges, dryers, water heaters, and similar equipment requiring a flexible corrugated stainless steel connector. The coated exterior provides additional corrosion resistance and mechanical protection in tight installation spaces. The tapped 3/8 inch FIP port on the outlet fitting accommodates applications where a smaller supply connection is needed, adding versatility across different appliance hookup configurations. Units are sold as a case of 12.

Key Features

• 5/8 inch OD corrugated stainless steel construction with protective exterior coating
• 48 inch length provides flexibility for a range of appliance setups
• 3/4 inch FIP x 1/2 inch FIP end connections with tapped 3/8 inch FIP option on outlet
• Integrated ArmorBoost excess flow valve automatically limits gas flow during a line failure
• Case quantity of 12 units supports service stock and contractor purchasing

Compatibility

Designed as an OEM-style replacement or new-installation gas connector for residential and light-commercial gas appliances requiring a 5/8 inch OD flexible stainless steel connector with standard FIP end fittings.

Installation Notes

Installation must be performed by a licensed plumber or qualified gas fitter in accordance with local codes and IFGC requirements. Shut off the gas supply at the meter or main shutoff valve before disconnecting or connecting any gas line components. Apply thread sealant rated for gas service to all male threads before making connections. Do not overtighten fittings or kink the flexible connector during routing.
