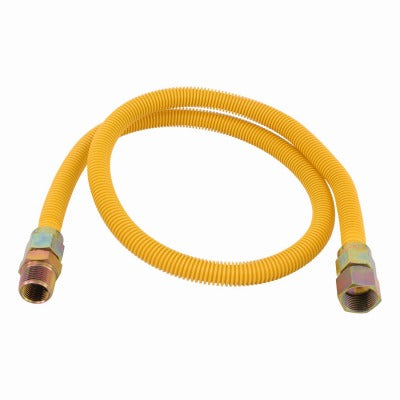

Sharkbite/cash Acme 30YE55V05436B Gas Connector 36 Inch

Product Description

The SHARKBITE/CASH ACME 30YE55V05436B is a coated stainless steel flexible gas connector rated for residential and light commercial gas appliance connections. The connector measures 5/8 inch OD by 36 inches in length and features 3/4 inch FIP inlet and 1/2 inch FIP outlet fittings, with the outlet end tapped for 3/8 inch FIP as well. An integrated ArmorBoost excess flow valve is built into the assembly, providing automatic shutoff protection if gas flow exceeds safe operating limits. Plumbers and gas fitters install this connector when making final connections between rigid gas supply lines and appliances such as ranges, dryers, and water heaters.

This connector is suited for residential and light commercial applications where a flexible, corrosion-resistant gas supply line is required. The 36-inch length provides enough flexibility for standard appliance installations where the appliance must be positioned slightly away from the wall or pulled out for service. The coated exterior protects the stainless steel corrugated body against mechanical abrasion and incidental contact with caustic materials common in utility and appliance spaces.

Key Features

• 5/8 inch OD corrugated stainless steel body with protective coating
• 36-inch length suitable for standard appliance rough-in distances
• 3/4 inch FIP inlet by 1/2 inch FIP outlet end fittings
• Outlet tapped for 3/8 inch FIP for additional connection flexibility
• Integrated ArmorBoost excess flow valve for automatic gas shutoff on over-flow conditions
• Sold in a package quantity of 12 units

Compatibility

Designed as an OEM-style flexible gas connector for residential and light commercial gas appliances requiring a 5/8 inch OD corrugated stainless steel supply line with 3/4 inch FIP x 1/2 inch FIP end connections.

Installation Notes

Installation must be performed by a licensed plumber or qualified gas fitter in accordance with local gas codes and IFGC requirements. Shut off the gas supply at the meter or nearest upstream shutoff valve before disconnecting any existing connector or fitting. Do not reuse an existing flexible gas connector — connectors should be replaced any time an appliance is moved or serviced. Verify all connections with an approved leak-detection solution after restoring gas pressure.
