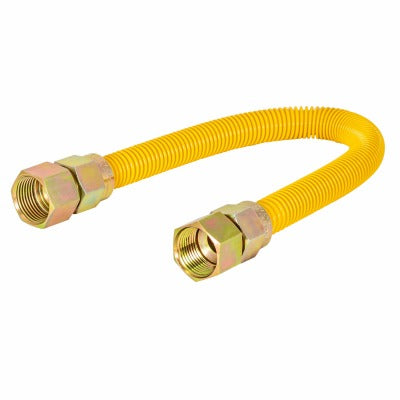

Sharkbite/cash Acme 30YE555536B Gas Connector 36in 5/8in Od

Product Description

The SHARKBITE/CASH ACME 30YE555536B is a 36-inch, 5/8-inch OD epoxy-coated flexible gas connector designed to link gas ranges, boilers, and other high-usage gas appliances to a shut-off valve. Rated for gas appliances up to 125,000 BTU/h, it connects using 3/4-inch FIP fittings on both ends. The epoxy coating adds a durable layer of protection against corrosion, common household chemical stains, and UV exposure. Approved for both indoor and outdoor installations, this connector is a standard fitment for licensed plumbers and gas service technicians performing appliance hookups or replacements in residential and light commercial settings.

This connector is suited for residential and light commercial applications where a gas range, boiler, or similarly rated high-usage appliance must be connected to an existing gas supply shutoff. The 36-inch length provides adequate reach for standard behind-the-range and boiler-room installations. The 5/8-inch OD flexible body accommodates typical movement and alignment adjustments during appliance positioning. Each package includes one 36-inch 5/8-inch OD epoxy-coated gas connector and two 3/4-inch FIP fittings, providing all components needed for a complete connection at the appliance and valve end.

Key Features

• Rated for gas appliances up to 125,000 BTU/h, covering most residential ranges and boilers
• Epoxy coating resists corrosion, UV rays, and chemical stains from common household products
• Approved for indoor and outdoor installation
• Includes two 3/4-inch FIP fittings for a complete connection at both ends
• 36-inch length with 5/8-inch OD flexible body for standard appliance hookup reach

Compatibility

Certified for use with most major brands of gas ranges and boilers with gas ratings up to 125,000 BTU/h. Designed as an OEM-style replacement or new-installation connector for residential and light commercial gas appliance connections using 3/4-inch FIP fittings.

Installation Notes

Installation must be performed by a licensed plumber or qualified gas service technician in accordance with local codes and IFGC requirements. Shut off the gas supply at the main shutoff valve before disconnecting or installing any gas connector. Do not kink, over-stretch, or use thread sealant incompatible with gas service. Inspect fittings for leaks using an approved gas leak detection solution after installation before returning the appliance to service.
