Sharkbite/cash Acme 30YE555524B Gas Connector 24 in

Product Description

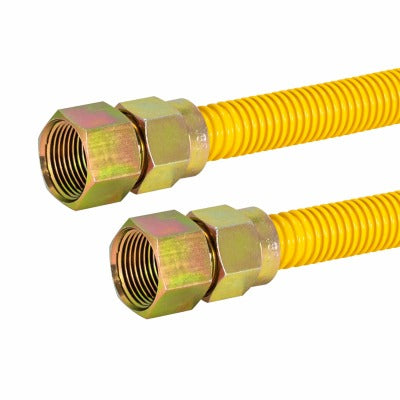

The SHARKBITE/CASH ACME 30YE555524B is a 24-inch, 5/8-inch OD epoxy-coated flexible gas connector designed to link gas ranges, boilers, and other high-usage gas appliances to a shut-off valve. The connector terminates with 3/4-inch FIP fittings on both ends and carries a certified gas rating of up to 150,000 BTU/h. The epoxy coating provides corrosion resistance and protection against chemical stains from common household products and UV exposure. This connector is approved for both indoor and outdoor installation. Each package includes one 24-inch connector and two 3/4-inch FIP fittings.

This gas connector is suited for residential and light commercial applications where a flexible, corrosion-resistant connection is required between a gas appliance and a shutoff valve. Typical uses include gas range installation, boiler hookup, and similar high-demand appliance connections. The 5/8-inch OD size and 3/4-inch FIP end connections match the inlet and outlet configurations found on most major brands of gas ranges and boilers, making this a widely applicable connector for service and new installation work.

Key Features

• 5/8-inch OD flexible connector with dual 3/4-inch FIP fittings included
• Rated for gas appliances up to 150,000 BTU/h
• Epoxy coating resists corrosion, UV rays, and common household chemical stains
• Approved for indoor and outdoor use
• 24-inch length accommodates standard appliance-to-valve spacing
• Compatible with most major brands of gas ranges and boilers

Compatibility

Certified for use with most major brands of gas ranges and boilers with gas ratings up to 150,000 BTU/h. Designed for appliances requiring a 5/8-inch OD connector with 3/4-inch FIP end connections.

Installation Notes

Installation should be performed by a licensed plumber or gas fitter in accordance with local codes and IFGC requirements. Always shut off the gas supply at the meter or main valve before disconnecting or connecting any gas line components. Do not over-tighten FIP fittings; use an appropriate pipe thread sealant rated for gas service. After installation, test all connections for leaks using an approved leak-detection solution before restoring gas service.
