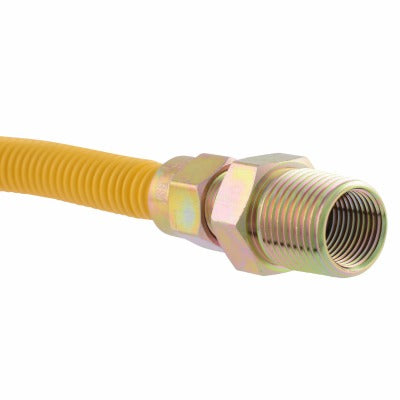

Sharkbite/cash Acme 30YE555448 Gas Connector 48 in

Product Description

The SHARKBITE/CASH ACME 30YE555448 is a 48-inch, 5/8-inch OD flexible gas connector designed to link gas ranges, boilers, and other high-usage gas appliances to a shut-off valve. The connector features an epoxy coating that resists corrosion, common household chemical stains, and UV exposure, making it suitable for both indoor and outdoor installations. It is certified for use with appliances rated up to 106,000 BTU/h. The kit includes one 48-inch epoxy-coated connector, one 3/4-inch FIP fitting, and one 3/4-inch MIP fitting tapped for 1/2-inch FIP. Licensed plumbers and gas fitters are the typical installers for this type of connector.

This gas connector is intended for residential and light commercial applications where a flexible, corrosion-resistant connection is required between a gas appliance and a supply shutoff valve. Common use cases include gas range hook-ups, boiler gas supply connections, and other high-demand gas appliances. The 3/4-inch FIP and 3/4-inch MIP end fittings provide broad compatibility with standard gas supply configurations. The included MIP fitting is tapped to accept a 1/2-inch FIP connection, adding installation flexibility where supply line sizes vary.

Key Features

• 48-inch length accommodates a range of appliance-to-shutoff distances
• 5/8-inch OD construction sized for gas ranges, boilers, and high-usage appliances
• Epoxy coating resists corrosion, UV rays, and chemical stains from common household products
• Rated for appliances up to 106,000 BTU/h
• Approved for indoor and outdoor use
• Includes 3/4-inch FIP fitting and 3/4-inch MIP fitting (tapped 1/2-inch FIP) for installation flexibility

Compatibility

Certified for use with most major brands of gas ranges and boilers with gas ratings up to 106,000 BTU/h. Compatible with standard 3/4-inch FIP and 3/4-inch MIP gas supply connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified gas fitter in accordance with local codes and IFGC requirements. Shut off the gas supply at the main valve before disconnecting or connecting any gas line components. Do not over-bend or kink the flexible connector during routing. Inspect all fittings for leaks with an approved leak-detection solution after installation before returning the appliance to service.
