Sharkbite/cash Acme 30YE555436B Gas Connector 36in 5/8in Od

Product Description

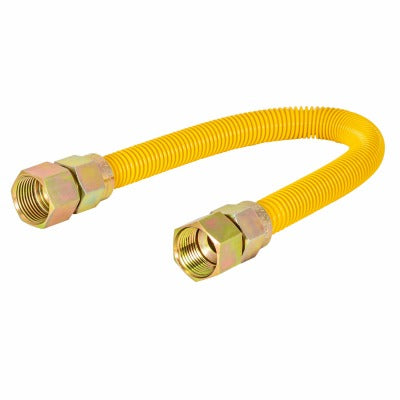

The SHARKBITE/CASH ACME 30YE555436B is a 36-inch, 5/8-inch OD epoxy-coated flexible gas connector designed to link gas ranges, boilers, and other high-usage gas appliances to a shut-off valve. The connector is certified for use with most ranges and boilers rated up to 125,000 BTU/h. Its epoxy coating resists corrosion, chemical stains from common household products, and UV exposure, making it suitable for both indoor and outdoor installations. The package includes one 36-inch connector, one 3/4-inch FIP fitting, and one 3/4-inch MIP fitting tapped at 1/2-inch FIP. Licensed plumbers and gas fitters are the typical installers for this type of connector.

This connector is suited for residential and light commercial applications where a reliable, code-compliant flexible gas line is required between a shut-off valve and an appliance. Common installation scenarios include gas range hookups in kitchens and boiler connections in mechanical rooms. The 36-inch length provides adequate reach for most standard appliance setups, and the included fittings accommodate common connection configurations found on gas ranges and boilers.

Key Features

• 5/8-inch OD flexible gas connector in a 36-inch length
• Certified for appliances with gas ratings up to 125,000 BTU/h
• Epoxy coating resists corrosion, UV rays, and common household chemical stains
• Approved for indoor and outdoor use
• Includes 3/4-inch FIP fitting and 3/4-inch MIP fitting (tapped 1/2-inch FIP)
• Compatible with most major brands of gas ranges and boilers

Compatibility

Designed to connect most major brands of gas ranges, boilers, and high-usage gas appliances to a standard shut-off valve. Certified for use with appliances rated up to 125,000 BTU/h.

Installation Notes

Installation should be performed by a licensed plumber or qualified gas fitter in accordance with local codes and IFGC requirements. Shut off the gas supply at the main valve before disconnecting or installing any gas connector. Do not over-bend or kink the flexible connector during installation, and never use a gas connector that shows signs of damage, corrosion, or prior use. Connections should be leak-tested with an approved gas leak detection solution after installation.
