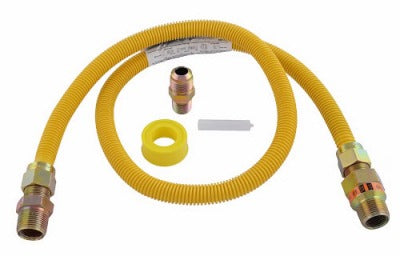

Sharkbite Cash Acme 30YE54V45048K Gas Range Install Kit

Product Description

The SHARKBITE/CASH ACME 30YE54V45048K is a complete gas range installation kit designed to connect a residential gas range to a supply line quickly and to code. The kit centers on a 48-inch, epoxy-coated, stainless steel flexible gas connector with a 0.5-inch inner diameter and 5/8-inch outer diameter tubing. Threads are sized at 15/16-16. A built-in thermal excess flow valve automatically restricts gas flow in the event of an abnormal surge, adding a critical layer of safety. The full kit includes fittings, pipe thread sealant, and a leak detector solution, so a licensed plumber or gas fitter can complete the install without sourcing additional supplies.

This kit is suited for residential gas range installations in both indoor and outdoor applications. The stainless steel connector resists corrosion and the epoxy coating provides additional protection in environments where moisture may be present. The kit ships as a single unit and contains all necessary connectors and sealant compounds to transition from the gas supply stub-out to the appliance inlet. It is intended for use by licensed plumbers, gas fitters, or qualified HVAC service technicians working on appliance connections.

Key Features

• 48-inch flexible stainless steel gas connector with epoxy coating for corrosion resistance
• Thermal excess flow valve restricts gas flow automatically during abnormal surge conditions
• Includes one 3/4-inch MIP fitting tapped for 1/2-inch FIP and two 1/2-inch MIP steel fittings for flexible hookup configurations
• Kit contains pipe thread sealant and leak detector solution — no additional supplies needed for most installs
• Approved for both indoor and outdoor use
• 5/8-inch O.D. tubing with 15/16-16 thread fittings throughout

Compatibility

Designed as an OEM-style replacement or new-installation connector kit for residential gas ranges requiring a 48-inch flexible stainless steel gas connector with 3/4-inch MIP and 1/2-inch MIP fitting configurations.

Installation Notes

Installation must be performed by a licensed plumber or gas fitter in accordance with local codes and IFGC requirements. Shut off the gas supply at the main valve before beginning any connection work. Apply pipe thread sealant to all threaded joints and use the included leak detector solution to verify a gas-tight seal before restoring gas flow. Do not over-bend or kink the flexible connector during routing.
