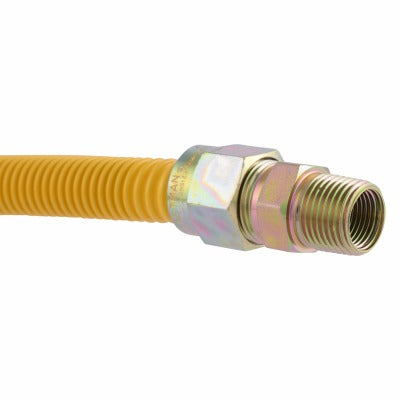

Sharkbite/cash Acme 30YE545036B Gas Connector 5/8 in Od 36 in

Product Description

The SHARKBITE/CASH ACME 30YE545036B is a 5/8-inch OD flexible gas connector designed to link gas ranges, boilers, and other high-usage appliances to a shut-off valve. The connector measures 36 inches in length and carries a gas rating of up to 125,000 BTU/h, making it suitable for high-demand appliances in residential and light commercial settings. It features DuraCoat epoxy coating, which provides resistance to corrosion, UV exposure, and chemical stains from common household products. The connector is approved for both indoor and outdoor installation. Licensed plumbers and gas fitters are the typical installers for this type of flexible connector.

This gas connector is suited for residential and light commercial applications where a flexible, corrosion-resistant connection is needed between a gas appliance and a shut-off valve. It is designed to connect most major brands of gas ranges and boilers with gas ratings up to 125,000 BTU/h. The kit includes one 36-inch, 5/8-inch OD epoxy-coated gas range connector, one 3/4-inch MIP fitting tapped for 1/2-inch FIP, and one 1/2-inch MIP fitting tapped for 3/8-inch FIP, providing flexibility for multiple connection configurations at the appliance and supply ends.

Key Features

• 5/8-inch OD flexible gas connector rated for gas appliances up to 125,000 BTU/h
• 36-inch length provides routing flexibility during appliance installation or service
• DuraCoat epoxy coating resists corrosion, UV rays, and common chemical stains
• Approved for indoor and outdoor use
• Includes both 3/4-inch MIP and 1/2-inch MIP fittings for versatile connection options
• Certified for use with most major brands of gas ranges and boilers

Compatibility

Designed to connect most major brands of gas ranges, boilers, and high-usage appliances to a shut-off valve. Certified for appliances with gas ratings up to 125,000 BTU/h.

Installation Notes

Installation must be performed by a licensed plumber or gas fitter in accordance with local codes and the applicable sections of the International Fuel Gas Code (IFGC). Shut off the gas supply at the meter or main valve and verify zero pressure at the connection point before beginning work. Do not over-bend or kink the flexible connector during routing. After installation, leak-test all connections using an approved gas leak detection solution before restoring gas service.
