Sharkbite/cash Acme 30YE515060B Gas Connector 60 in

Product Description

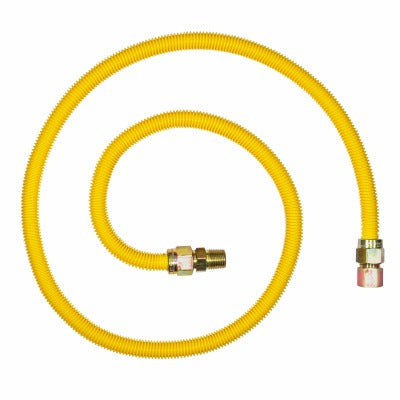

The SHARKBITE/CASH ACME 30YE515060B is a 60-inch, 5/8-inch OD flexible gas connector rated for appliances up to 93,200 BTU/h. It is engineered to link gas ranges, boilers, and other high-demand gas appliances to a shutoff valve. The connector features DuraCoat epoxy coating, which resists corrosion, common household chemical stains, and UV exposure. This makes it suitable for both indoor and outdoor installations. Licensed plumbers and gas fitters are the primary installers for this type of connector on residential and light commercial appliance hookups.

This connector is designed for use with most major brands of gas ranges and boilers where the appliance gas rating does not exceed 93,200 BTU/h. The 60-inch length provides adequate flexibility for standard appliance setups where the appliance needs to be pulled away from the wall for servicing or cleaning. Each package includes one 60-inch 5/8-inch OD epoxy-coated gas connector, one 1/2-inch FIP fitting, and one 1/2-inch MIP fitting that is tapped for a 3/8-inch FIP connection.

Key Features

• Rated for gas appliances up to 93,200 BTU/h, covering most residential ranges and boilers
• DuraCoat epoxy coating resists corrosion, UV rays, and chemical stains from household products
• Approved for both indoor and outdoor installation
• 60-inch length accommodates standard appliance pull-out clearances
• Includes 1/2-inch FIP and 1/2-inch MIP (tapped 3/8-inch FIP) fittings for versatile hookup configurations

Compatibility

Designed to connect most major brands of gas ranges, boilers, and high-usage gas appliances to a shutoff valve. Certified for use with most ranges and boilers with gas ratings up to 93,200 BTU/h.

Installation Notes

Installation should be performed by a licensed plumber or qualified gas fitter in accordance with local codes and IFGC requirements. Shut off the gas supply at the main valve and confirm zero pressure before disconnecting any existing connector or fittings. Do not over-bend or kink the flexible connector during routing. Inspect all connections for leaks using an approved leak-detection solution before returning the appliance to service.
