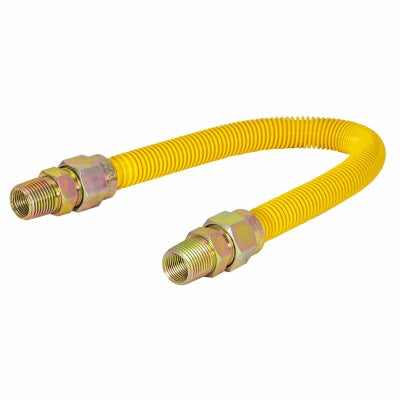

Sharkbite/cash Acme 30YE515024 Gas Connector 24 in

Product Description

The SHARKBITE/CASH ACME 30YE515024 is a 24-inch, 5/8-inch OD flexible gas connector rated for appliances drawing up to 150,000 BTU/h. It ships with one 1/2-inch FIP fitting and one 1/2-inch MIP fitting (tapped 3/8-inch FIP) for versatile hookup configurations. The connector is coated with DuraCoat epoxy, which resists corrosion, common household chemical stains, and UV exposure. Its construction makes it suitable for both indoor and outdoor installations. Plumbers and gas fitters install this connector when running a final gas supply connection to a range, boiler, or other high-demand gas appliance.

This connector is designed to link most major brands of gas ranges, boilers, and high-usage gas appliances to a shutoff valve. The 5/8-inch OD sizing and included fittings accommodate a wide range of residential and light-commercial appliance connections. The DuraCoat epoxy coating and outdoor approval make it practical in exposed or semi-exposed installation environments, such as rooftop boiler equipment rooms or outdoor cooking setups where UV and moisture contact is likely.

Key Features

• Rated for gas appliances up to 150,000 BTU/h, covering most residential ranges and boilers
• DuraCoat epoxy coating resists corrosion, UV exposure, and common household chemical stains
• Approved for both indoor and outdoor installation
• Includes 1/2-inch FIP fitting and 1/2-inch MIP fitting (tapped 3/8-inch FIP) for flexible connection options
• 5/8-inch OD construction compatible with most major appliance brands
• 24-inch length provides adequate service loop for appliance pull-out and leveling

Compatibility

Designed to connect most major brands of gas ranges, boilers, and high-usage gas appliances to a shutoff valve. Certified for use with most ranges and boilers with gas ratings up to 150,000 BTU/h.

Installation Notes

Installation should be performed by a licensed plumber or qualified gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Always shut off the gas supply at the main valve and verify zero pressure before disconnecting or connecting any gas fitting. Apply an approved thread sealant to all threaded connections and leak-test all joints with approved leak detection solution after pressurizing. Never kink, over-bend, or use mechanical force to stretch the flexible connector during routing.
