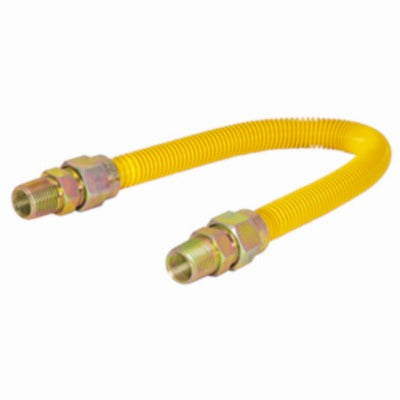

Sharkbite/cash Acme 30YE50V036B Gas Connector 36 Inches

Product Description

The SHARKBITE/CASH ACME 30YE50V036B is a thermal excess flow valve gas connector designed for residential and light commercial gas appliance installations. This flexible connector features epoxy coated stainless steel construction with a 36-inch tube length, a 1/2 inch inner diameter, and a 5/8 inch outer diameter. The 15/16-16 threaded end connections include a 3/8 inch FIP tapped inlet and a 1/2 inch MIP outlet, providing a secure, leak-resistant transition between the gas supply line and the appliance. Licensed plumbers and gas fitters install this connector as part of final appliance hookups in both new construction and service replacement work.

This connector is approved for indoor and outdoor use, making it suitable for a wide range of gas appliance applications including ranges, dryers, water heaters, and space heaters. The integrated thermal excess flow valve adds a layer of safety by restricting gas flow in the event of a line rupture or abnormal heat condition. The epoxy coating on the stainless steel braid provides corrosion resistance in damp or exposed environments, including outdoor installations where moisture exposure is a concern.

Key Features

• Thermal excess flow valve integrated into the connector for added safety
• Epoxy coated stainless steel construction for corrosion resistance indoors and outdoors
• 36-inch flexible tube length with fittings included
• 15/16-16 thread with 3/8 inch FIP x 1/2 inch MIP end connections
• 1/2 inch inner diameter and 5/8 inch outer diameter tube
• Approved for both indoor and outdoor gas appliance installations

Compatibility

Designed as an OEM-style replacement flexible gas connector for residential and light commercial gas appliances requiring a 1/2 inch MIP outlet connection and a 3/8 inch FIP tapped inlet with a 36-inch flexible tube length.

Installation Notes

Installation must be performed by a licensed plumber or qualified gas fitter in accordance with local codes and IFGC requirements. Shut off the main gas supply valve before disconnecting or connecting any gas fittings. Apply an approved gas-rated thread sealant or tape to all threaded connections and verify all joints with a gas leak detection solution after restoring supply. Do not kink, stretch, or over-bend the flexible connector during installation.
