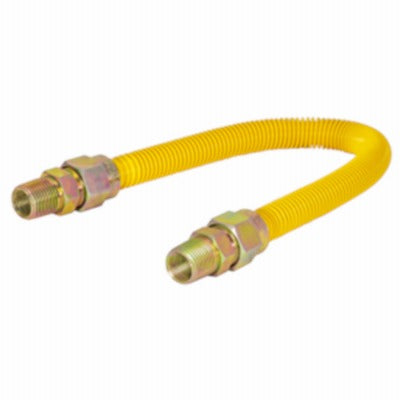

Sharkbite/cash Acme 30YE50V024B Gas Connector 24 Inches

Product Description

The SHARKBITE/CASH ACME 30YE50V024B is a 24-inch thermal excess flow gas connector designed for residential and light commercial gas appliance installations. It features an epoxy-coated stainless steel tube with a 1/2-inch inner diameter and 5/8-inch outer diameter. The connector uses a 15/16-16 thread and includes a tapped 3/8-inch FIP inlet and 1/2-inch MIP outlet. The built-in thermal excess flow valve automatically restricts gas flow in the event of a line rupture or excessive heat, adding a critical layer of safety to the installation. Licensed plumbers and gas fitters are the typical installers of this type of connector.

This connector is approved for both indoor and outdoor use, making it suitable for a range of gas appliance hookups including ranges, dryers, water heaters, and space heaters. The tube with fittings configuration simplifies installation by providing a ready-to-connect assembly. The epoxy coating on the stainless steel tube offers corrosion resistance, supporting long-term performance in exposed or high-humidity environments where appliances are commonly located.

Key Features

• Thermal excess flow valve restricts gas automatically during line failure or excessive heat exposure
• Epoxy-coated stainless steel construction for corrosion resistance
• 1/2-inch inner diameter, 5/8-inch outer diameter flexible tube
• 15/16-16 thread specification with tapped 3/8-inch FIP x 1/2-inch MIP fittings included
• 24-inch length provides flexible reach for most appliance connection scenarios
• Approved for both indoor and outdoor installations

Compatibility

Designed as an OEM-style replacement or new-installation gas connector for residential and light commercial gas appliances requiring a 1/2-inch MIP connection with a tapped 3/8-inch FIP inlet and 24-inch flexible line.

Installation Notes

Installation must be performed by a licensed plumber or gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply at the main shutoff valve before disconnecting or connecting any gas line components. Do not over-bend, kink, or reuse a previously installed flexible gas connector. Verify all connections with an approved leak-detection solution before restoring gas flow and relighting appliances.
