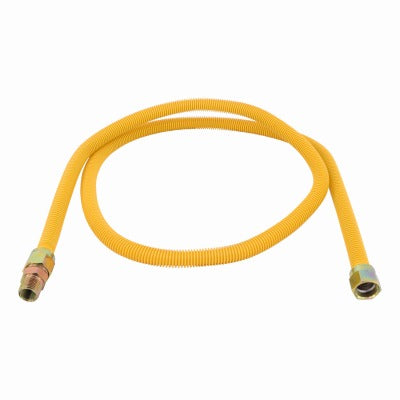

Sharkbite/cash Acme 30YE505072B Gas Connector 5/8 in 72 in

Product Description

The SHARKBITE/CASH ACME 30YE505072B is a coated stainless steel gas connector designed to supply natural gas or propane from a fixed gas supply line to an appliance. At 5/8 inch OD and 72 inches in length, it provides flexible routing in residential and light commercial settings. End fittings are 1/2 inch MIP, each tapped to accept 3/8 inch FIP connections, giving installers dual-size compatibility at both ends without additional adapters. Licensed plumbers and gas fitters install this type of connector as part of final appliance hookup in kitchens, laundry rooms, and utility spaces.

This connector is suited for appliance gas supply connections where flexibility and corrosion resistance are required. The 72 inch length accommodates appliances that are set back from the wall or in locations where a shorter connector would not reach comfortably. The coated exterior protects the stainless steel corrugated body from abrasion and moisture in typical installation environments. Typical applications include ranges, dryers, water heaters, and similar gas-fired residential appliances.

Key Features

• 5/8 inch OD corrugated stainless steel body with protective coating
• 72 inch length for flexible appliance positioning
• 1/2 inch MIP end fittings, each tapped 3/8 inch FIP for dual-size connection compatibility
• Flexible construction allows routing around obstacles during installation
• Coated exterior provides abrasion and moisture resistance

Compatibility

Designed as an OEM-style replacement or new-installation gas connector for residential gas appliances requiring a 5/8 inch OD flexible supply line with 1/2 inch MIP or 3/8 inch FIP end connections.

Installation Notes

Installation must be performed by a licensed plumber or gas fitter in accordance with local codes and IFGC requirements. Shut off the gas supply at the meter or service valve before disconnecting or connecting any gas line. Do not over-bend or kink the corrugated connector body, and never conceal a flexible gas connector inside a wall, floor, or ceiling. Test all joints for leaks with an approved gas leak detection solution after completing the connection.
