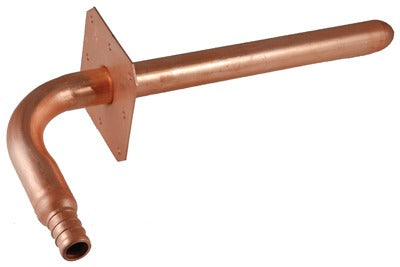

Sharkbite/cash Acme 25094A Pex Stub-out Elbow Copper 6 Pack

Product Description

The SHARKBITE/CASH ACME 25094A is a 1/2 inch PEX barb stub-out elbow designed to terminate a PEX water supply line from inside a wall cavity to an exterior wall surface for plumbing fixture hookup. Constructed from lead-free copper, this right-turn elbow includes an integrated mounting bracket and a nailing plate that secures the stub to the framing, keeping the outlet rigid and correctly positioned before drywall installation. The 4 x 8 inch bracket format fits standard stud spacing. This fitting is sold in a package of 6 and is installed by licensed plumbers during rough-in work.

This stub-out elbow is used in residential and light commercial new construction or remodel projects where PEX supply lines are run through wall framing and must terminate at a fixed point for connection to faucets, valves, ice makers, or other plumbing fixtures. The nailing plate affixes the elbow securely to wall studs, preventing movement during drywall finishing and final fixture trim-out. The right-turn configuration suits standard horizontal-to-vertical transition layouts commonly encountered at sink and lavatory rough-in locations.

Key Features

• Lead-free copper construction meets potable water material requirements
• Integrated nailing plate secures stub to framing during rough-in
• 1/2 inch PEX barb inlet for direct connection to PEX supply tubing
• Right-turn elbow routes supply line from inside wall to exterior face
• 4 x 8 inch bracket format suits standard stud bay dimensions
• Sold as a package of 6 units for multi-fixture rough-in jobs

Compatibility

Designed as an OEM-style rough-in fitting for 1/2 inch PEX water supply systems in residential and light commercial plumbing installations.

Installation Notes

Installation is performed by a licensed plumber during the rough-in phase before wall coverings are applied. Shut off the water supply and depressurize the line before making any connections. Secure the nailing plate firmly to the stud using appropriate fasteners so the elbow does not shift during drywall or finish work. Follow local plumbing codes and IPC requirements for support spacing, pressure testing, and approved materials for potable water systems.
