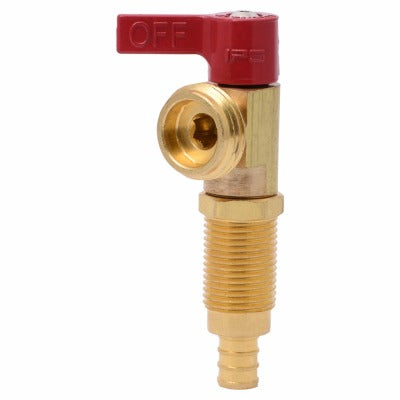

Sharkbite/cash Acme 24998A Pex Washing Machine Valve

Product Description

The SHARKBITE/CASH ACME 24998A is a PEX washing machine valve designed for hot water inlet applications in residential laundry installations. It features a 1/2 inch PEX barb fitting and a 3/4 inch male NPT (MNPT) outlet connection. The red handle provides a clear visual indicator for hot water service. Rated to 200 degrees F and 200 psi, this valve is built for reliable shutoff performance in standard residential water supply systems. Licensed plumbers and experienced installers use this valve to provide dedicated shutoff access at the washing machine connection point.

This valve is intended for use with PEX tubing in residential washing machine supply line installations. The 1/2 inch PEX barb inlet connects directly to PEX supply tubing, while the 3/4 inch MNPT outlet threads into a standard washing machine hose connection. It is suited for hot water supply lines where a dedicated in-line shutoff is required. Package quantity is 6 units per package, making it practical for multi-unit or service stock applications.

Key Features

• 1/2 inch PEX barb inlet for direct PEX tubing connection
• 3/4 inch MNPT outlet for standard washing machine hose fitting
• Red handle identifies hot water service at a glance
• Temperature rating of 200 degrees F for hot water supply lines
• Pressure rating of 200 psi for residential supply system compatibility
• Sold in a package quantity of 6 units

Compatibility

Designed as an OEM-style replacement or new-installation valve for residential PEX-plumbed washing machine hot water supply lines requiring a 1/2 inch PEX barb inlet and 3/4 inch MNPT outlet configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the main water supply and depressurize the line before beginning work. Secure PEX tubing to the barb fitting using the appropriate crimp ring or clamp ring tool rated for the tubing size. Do not overtighten the MNPT threaded connection; use thread sealant tape or compound rated for potable water service.
