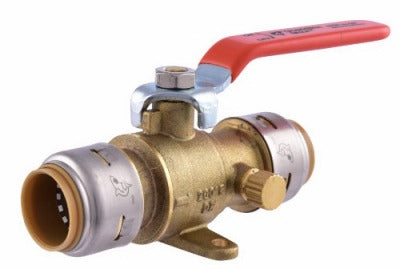

Sharkbite/cash Acme 24616-0000LFA 3/4 in Ball Valve Drain

Product Description

The SHARKBITE/CASH ACME 24616-0000LFA is a 3/4 inch lead-free ball valve with integrated drain port, designed for push-fit installation without soldering or special tools. Constructed from DZR (dezincification-resistant) brass, it is rated to 200 psi and 200 degrees F, making it suitable for both potable water and hydronic distribution systems. An integral tube liner is included for use with PEX tubing. Licensed plumbers and pipefitters install this valve in residential and light commercial water distribution applications where a shutoff and drain point is required in a single fitting.

This valve is engineered for push-fit connection to copper tubing (CTS), CPVC, and PEX. It is appropriate for residential and commercial water supply lines where a serviceable shutoff with drain capability is needed. The push-fit design reduces installation time significantly in retrofit and new construction scenarios. It is also certified for underground applications as a manufactured joint, eliminating the need for access panels in buried service lines.

Key Features

• Push-fit connection compatible with copper CTS, CPVC, and PEX tubing with integral tube liner included
• DZR brass construction resists dezincification in aggressive water conditions
• Rated to 200 psi and 200 degrees F for demanding potable and hydronic service
• Integrated drain port allows system draining without additional fittings
• Certified for underground applications as a manufactured joint — no access panel required
• Lead free compliant per Federal Law 111-380, NSF 61 certified for potable water contact

Compatibility

Compatible with 3/4 inch copper tubing (CTS), CPVC, and PEX pipe. Fittings are listed with IAPMO and certified for potable and hydronic water distribution systems. Meets UPC, IPC, and CUPC requirements. Design certified to ASSE 1061 and NSF 61 standards.

Installation Notes

Installation is performed by a licensed plumber in accordance with IPC and applicable local plumbing codes. Shut off the water supply and relieve system pressure before installing or removing the valve. Push-fit connections require tubing to be cut cleanly and squarely with no burrs; a deburring tool and pipe cutter are recommended. Do not exceed the rated pressure or temperature limits of 200 psi and 200 degrees F.
