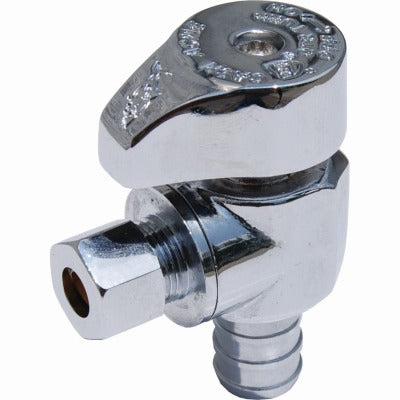

Sharkbite/cash Acme 23056LF Lead Free Drain Valve Pex

Product Description

The SHARKBITE/CASH ACME 23056LF is a lead-free needle valve drain valve designed for use on cross-linked polyethylene (PEX) tubing systems. It features a 1/2-inch chrome-plated barb insert inlet and a 1/4-inch OD outlet. The brass insert construction meets NSF listing requirements, and the wetted surfaces contain less than 0.25% lead by weight, satisfying potable water safety standards. This valve is installed by licensed plumbers on residential and light commercial PEX distribution systems where a reliable, testable drain point is required. It ships in a package quantity of 6.

This drain valve is suited for residential and light commercial plumbing applications on PEX tubing systems built to SDR-9 dimensional standards per ASTM F-876 and ASTM F-877. It is rated for use in hot water systems where chlorinated water at up to 140 degrees F is continuously recirculated, making it appropriate for domestic hot water recirculation loops. Installation requires either TV 608-933 cinch clamps with cinch tool TV 608-743 or standard copper crimp rings. Once crimped, each fitting can be pressure-tested to well over 100 psi.

Key Features

• Lead-free construction — wetted surfaces contain less than 0.25% lead by weight
• 1/2-inch chrome-plated barb insert x 1/4-inch OD needle valve configuration
• NSF listed brass inserts; certified under NSF 14 and NSF 61 for potable water use
• NSF CL-R certified for hot water systems with chlorinated water recirculated at up to 140 degrees F
• Compatible with cinch clamp or copper crimp ring installation methods on PEX tubing
• Meets AB1953 California and VT S152 Vermont low-lead restrictions

Compatibility

Designed for use on cross-linked polyethylene PEX tubing meeting SDR-9 dimensional standards per ASTM F-876 and ASTM F-877. Use with TV 608-933 cinch clamps and cinch tool TV 608-743, or standard copper crimp rings. Complies with CSA B137.5 standards.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and relieve system pressure before installing or servicing this valve. Use the correct cinch tool or crimp tool for the chosen fitting method — do not mix cinch clamps with crimp tooling. After assembly, pressure-test the connection before concealing or insulating any piping.
