Sharkbite/cash Acme 22462LFA 3/4 in Barb Ball Valve Pex

Product Description

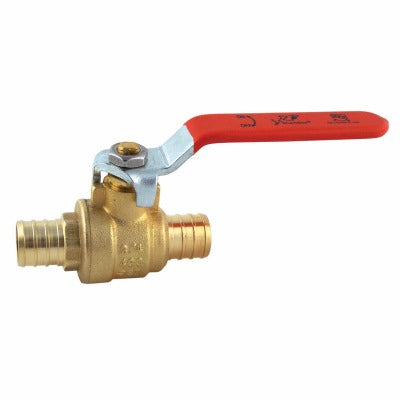

The SHARKBITE/CASH ACME 22462LFA is a lead-free brass ball valve designed for use in PEX tubing systems. It features a 3/4-inch brass barb insert on each end and operates with a simple 1/4-turn lever handle for fast shutoff. The valve is intended for potable water applications in residential and light commercial plumbing systems. It is installed using stainless steel cinch clamps and a compatible cinch tool, making it a practical choice for licensed plumbers working on hot or cold water distribution lines where code compliance and low-lead certification are required.

This valve is suited for residential and commercial PEX plumbing installations where a reliable inline shutoff is needed. It connects via 3/4-inch barb insert fittings to SDR-9 dimensional standard PEX tubing using stainless steel cinch clamps and cinch tool TV 608-743. It is also rated for hot water recirculation systems where chlorinated water at up to 140 degrees Fahrenheit is continuously circulated, making it appropriate for domestic hot water loops.

Key Features

• Lead-free brass construction — wetted surfaces contain less than 0.25% lead by weight
• 1/4-turn lever handle for quick, positive shutoff
• 3/4-inch barb insert x 3/4-inch barb insert connection for use with PEX tubing
• Compatible with stainless steel cinch clamps per ASTM F-876 and ASTM F-877 to SDR-9 standards
• NSF CL-R certified for hot water systems with chlorinated water recirculation up to 140 degrees Fahrenheit
• Meets AB1953 California and VT S152 Vermont low-lead restrictions

Compatibility

Designed for use with PEX tubing connected via stainless steel cinch clamps and cinch tool TV 608-743, conforming to ASTM F-876 and ASTM F-877 to SDR-9 dimensional standards. Certified under NSF 14 and 61 for potable water systems and CSA B137.5 standards.

Installation Notes

Installation is performed by licensed plumbers in accordance with the applicable plumbing code, such as the IPC or UPC. Shut off the water supply and relieve system pressure before cutting into an existing line. Barb connections require proper stainless steel cinch clamps and a calibrated cinch tool — do not substitute with non-rated clamps. Verify that the tubing meets SDR-9 dimensional standards before making connections.
